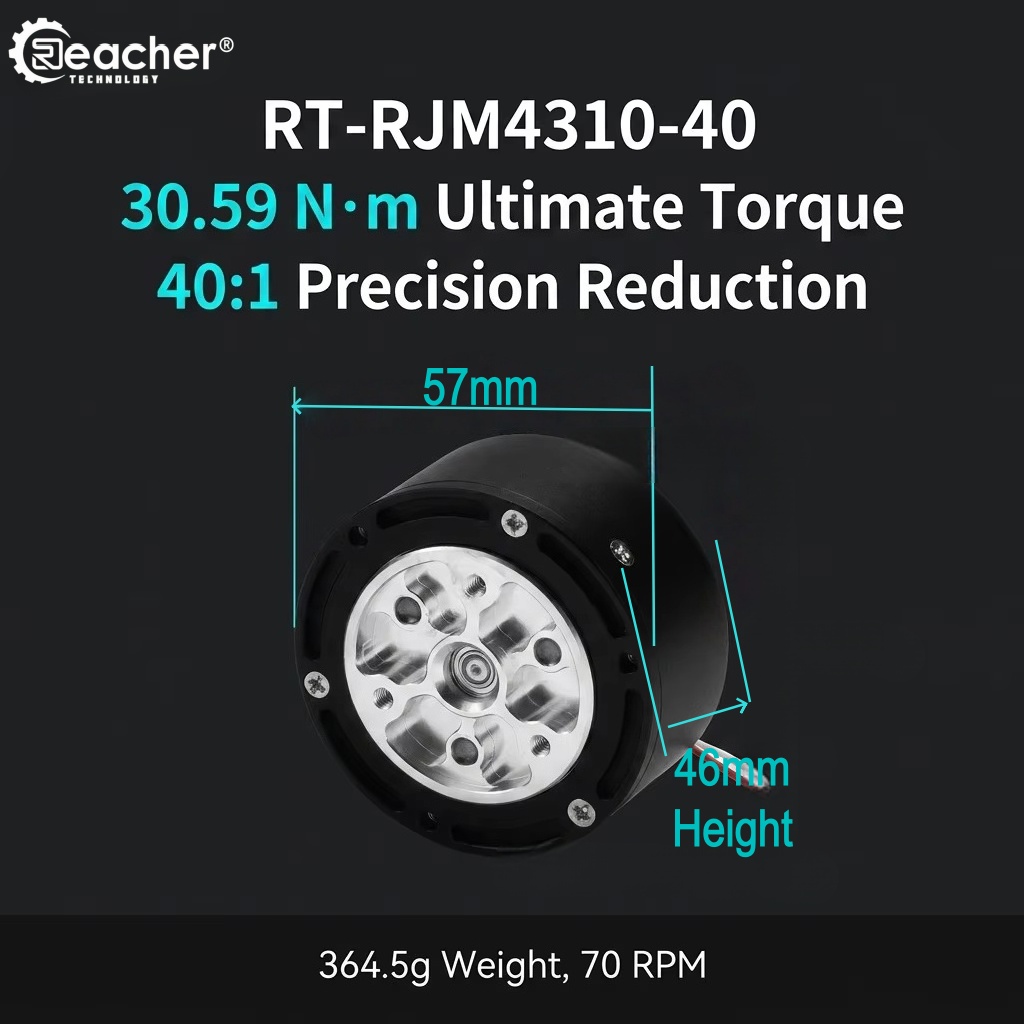

RT-RJM4310-40

Category: Robotic Joint Motor
Nominal voltage:24V
Nominal current: 3.7A
Nominal torque: 8.5Nm
Nominal Speed after Reduce:70 rpm
Max Speed after Reduce:86rpm
Stall torque:30.59Nm
Stall current:17.1A
Number of pole pairs:14 poles

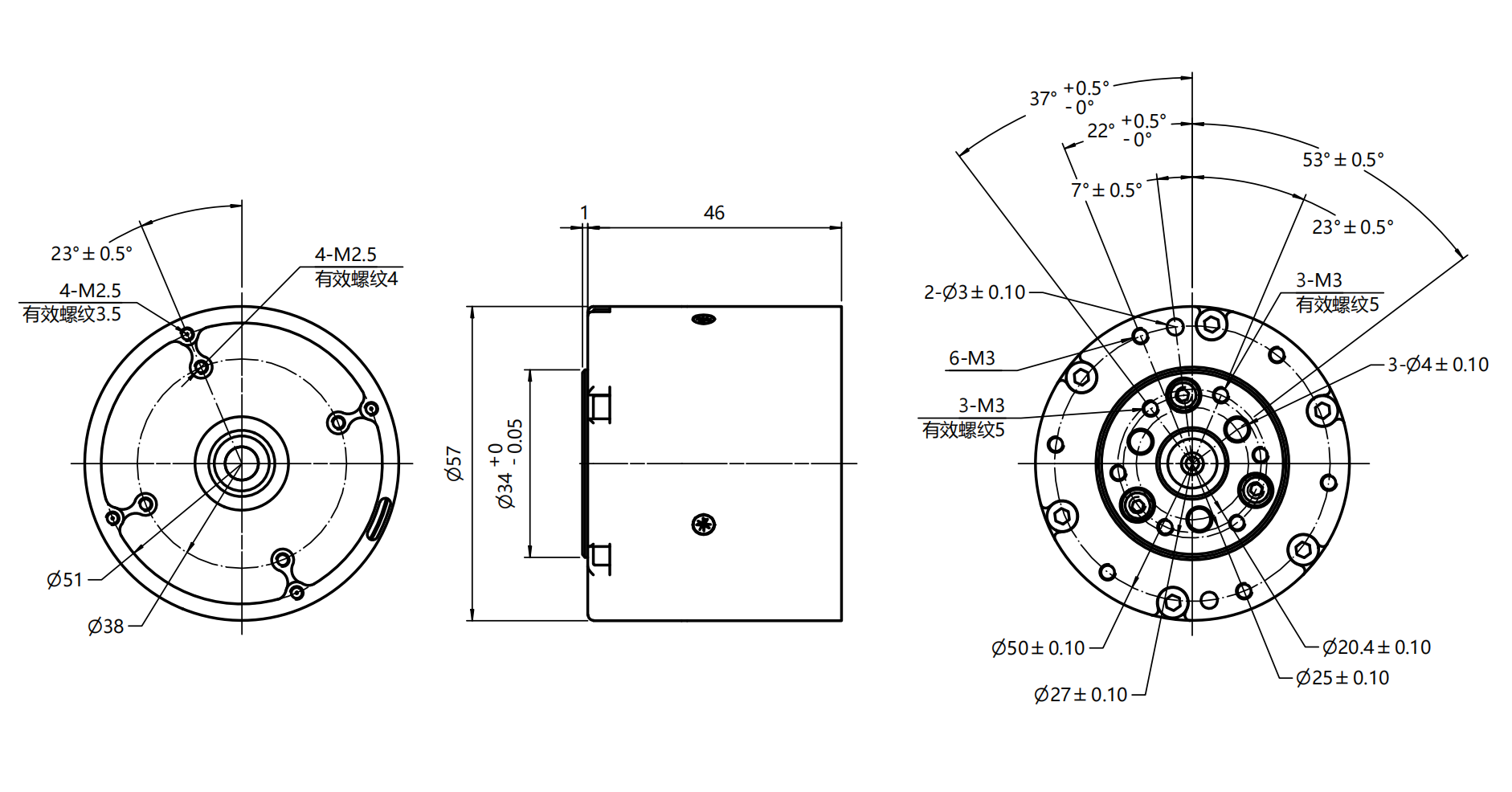

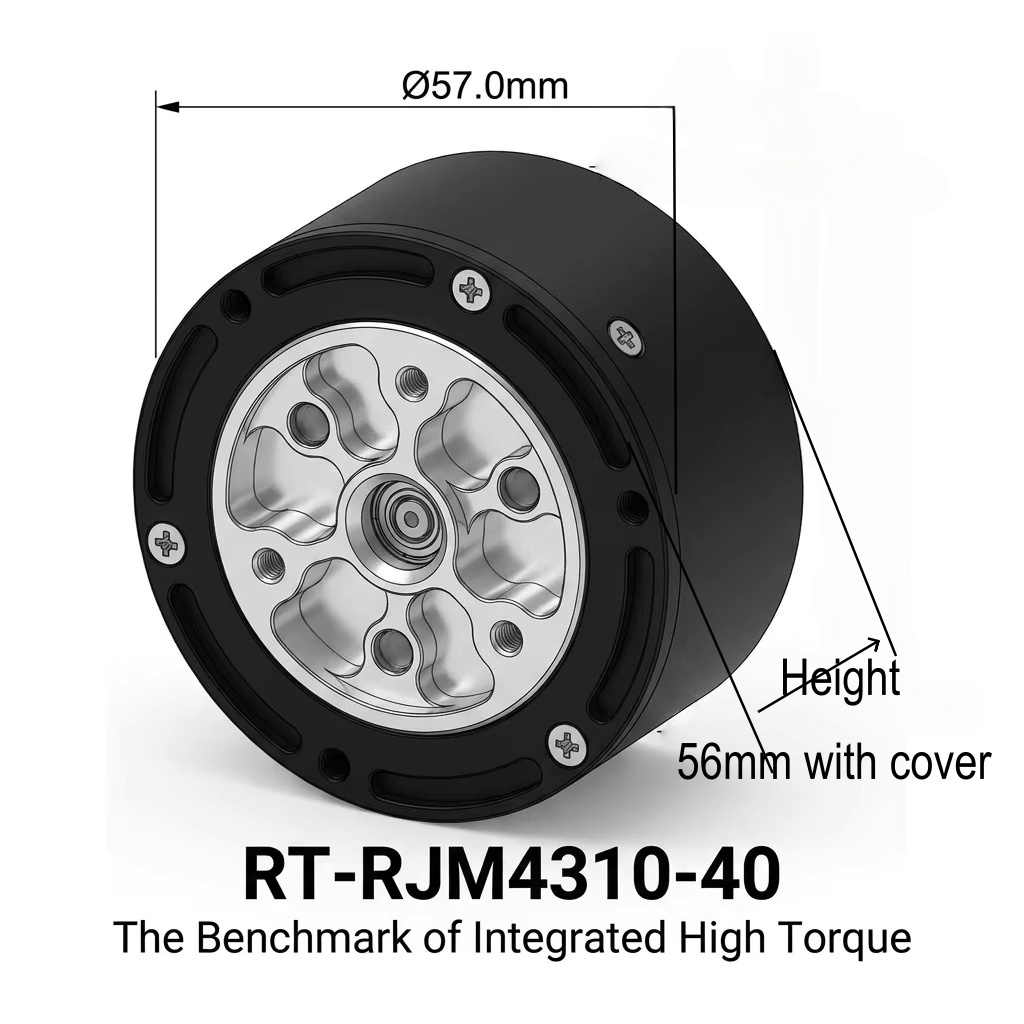

Dimension(mm):Ø57*46

PRODUCT DETAIL

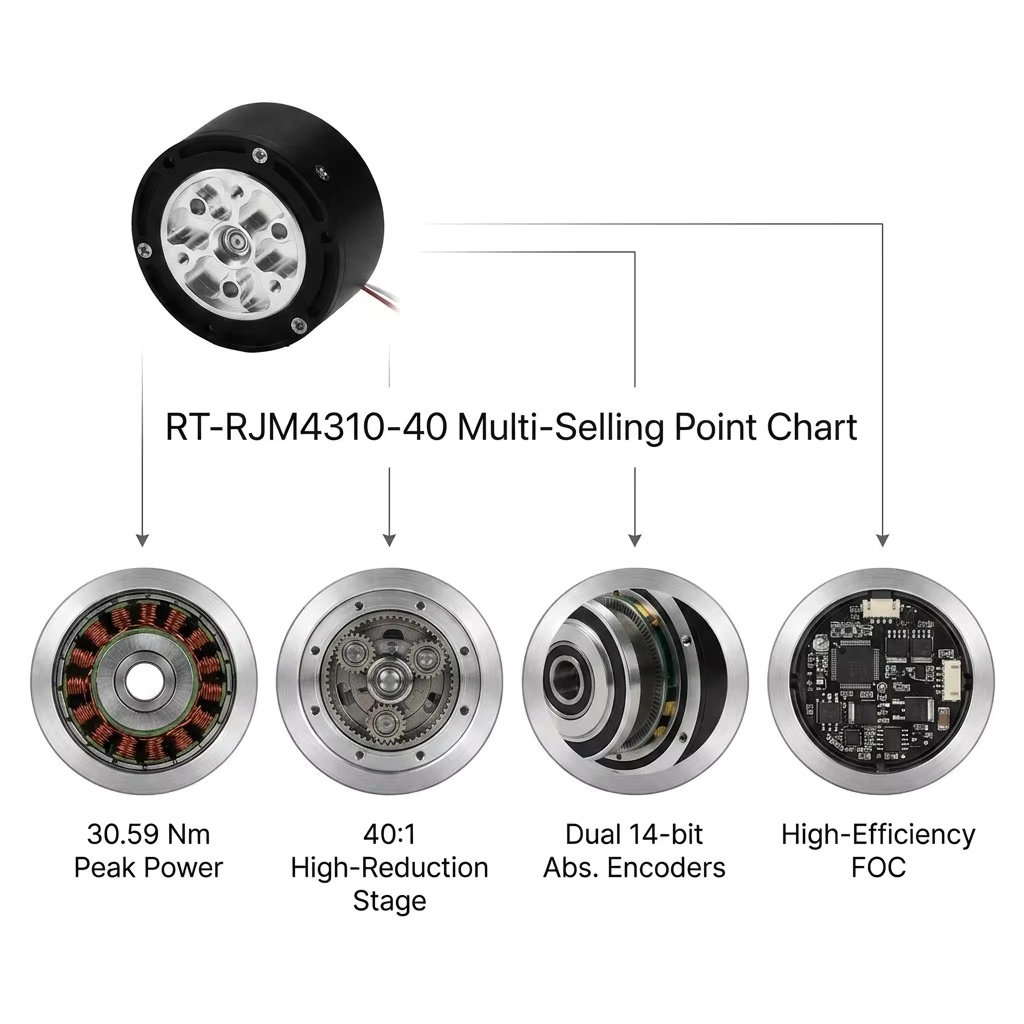

RT-RJM4310-40 24V 89W 30Nm Peak 86RPM Robot Joint Motor Humanoid Knee CAN RS485 IP54 40:1 Planetary FOC
