RT-RJM4310-10

Category: Robotic Joint Motor
Nominal voltage:24V
Nominal current: 1.3A
Nominal torque: 1.63Nm
Nominal Speed after Reduce:101 rpm
Max Speed after Reduce:212rpm
Stall torque:7.98Nm
Stall current: 10.67A
Number of pole pairs:14 poles

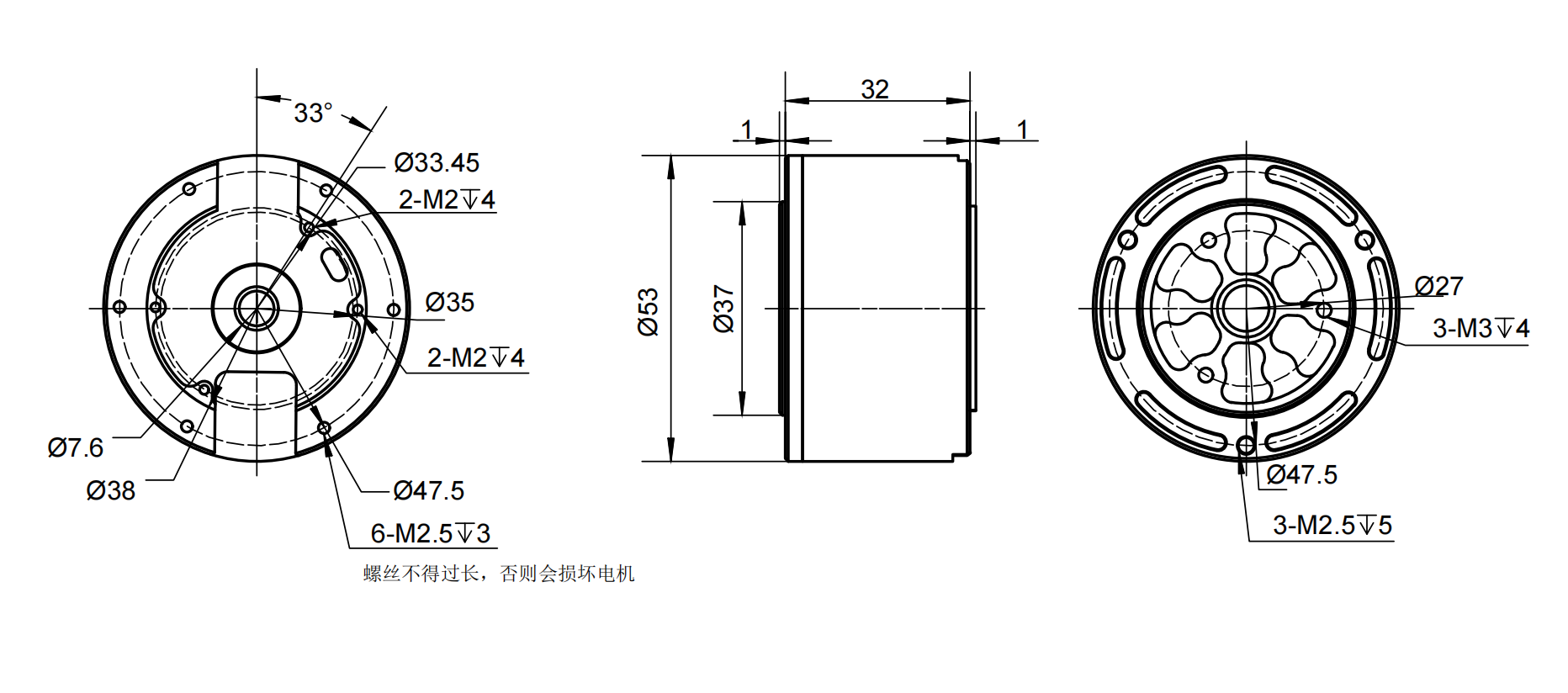

Dimension(mm):Ø53*32

PRODUCT DETAIL

RT-RJM4310-10 24V 30W 8Nm Peak 212RPM Robot Joint Motor Cobot Elbow CAN RS485 IP54 10:1 Planetary FOC
