RT-RJM4305-10

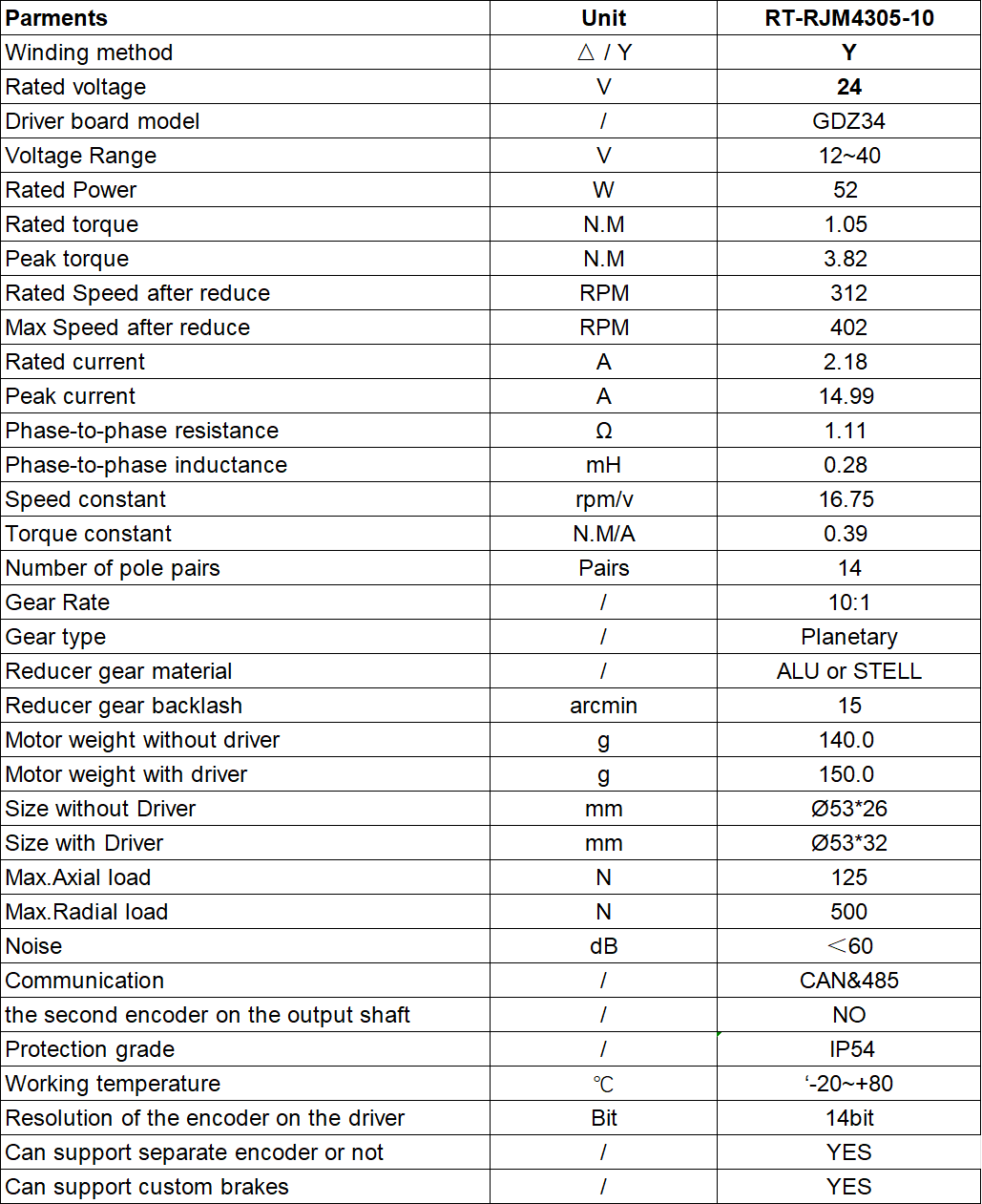

Category: Robotic Joint Motor
Nominal voltage:24V
Nominal current: 2.18A
Nominal torque: 1.05Nm
Nominal Speed after Reduce:312 rpm
Max Speed after Reduce:402rpm
Stall torque:3.82Nm
Stall current: 14.99A
Number of pole pairs:14 poles

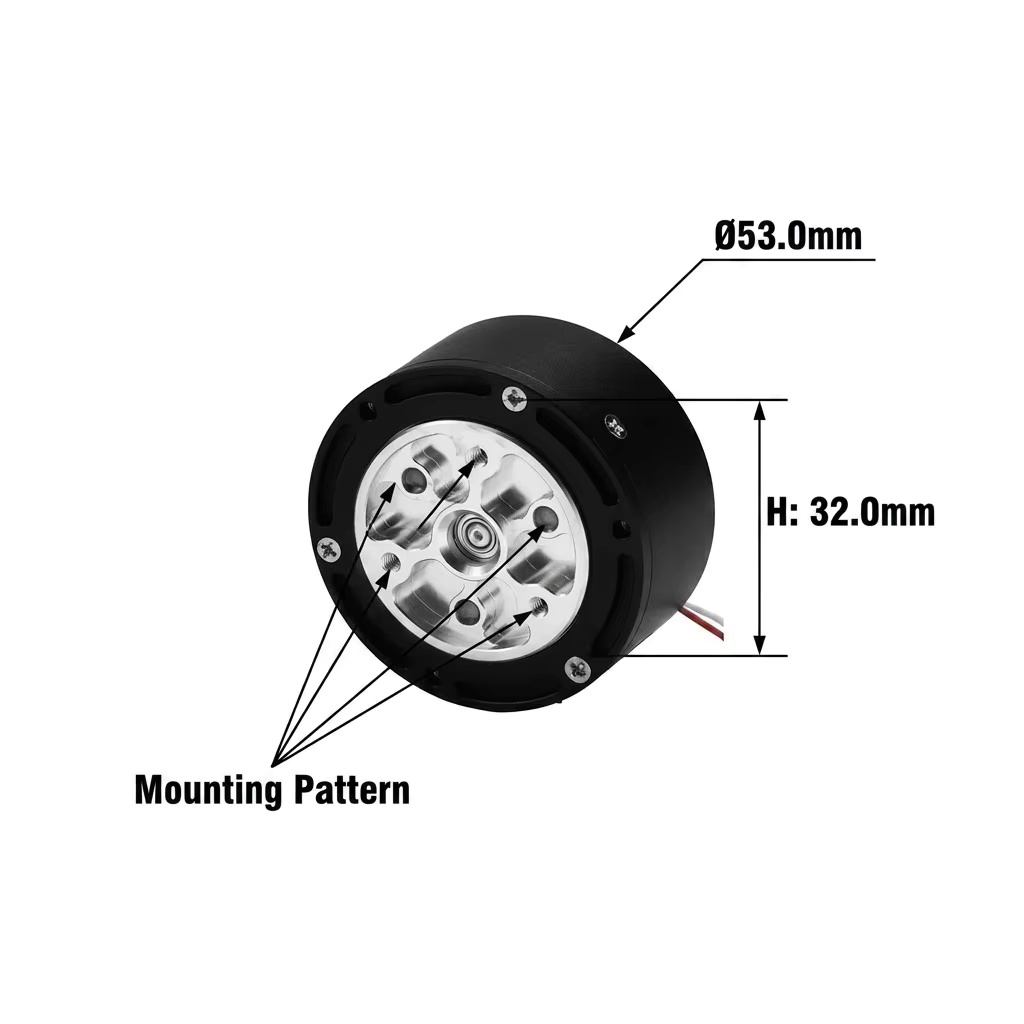

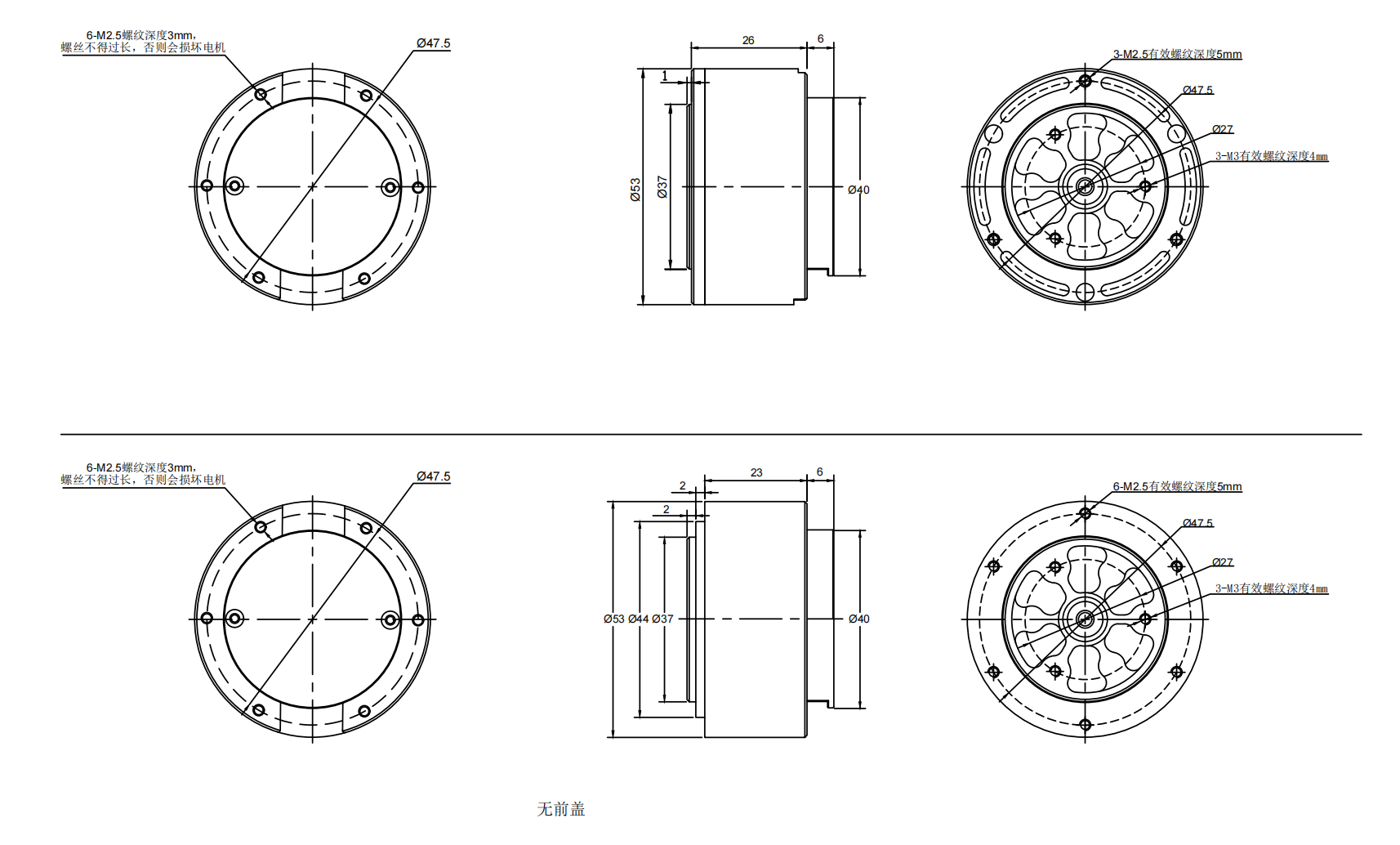

Dimension(mm):Ø53*26

PRODUCT DETAIL

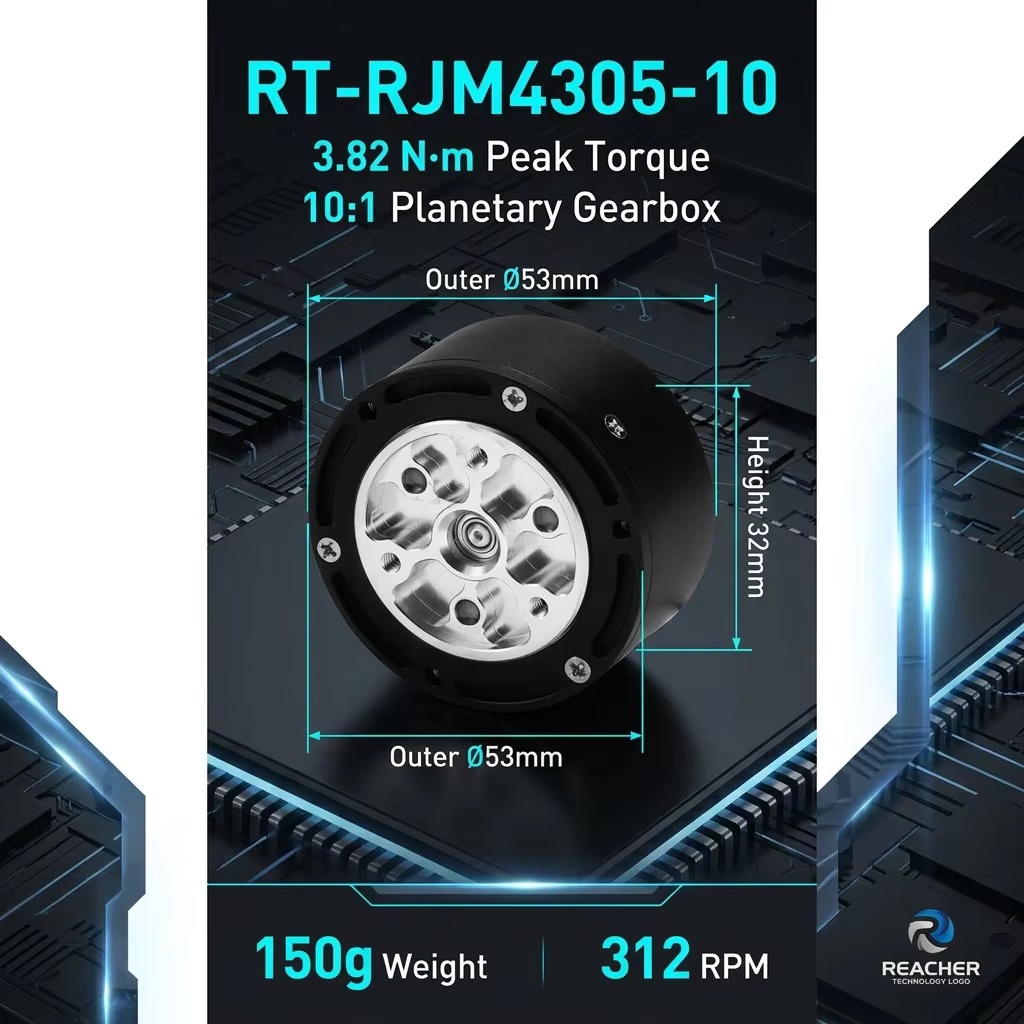

RT-RJM4305-10 24V 50W 4Nm Peak 402RPM Robot Joint Motor Cobot Wrist CAN RS485 IP54 10:1 Planetary FOC

PREVIOUS：RT-RJM3510-64
NEXT：RT-RJM4310-10
