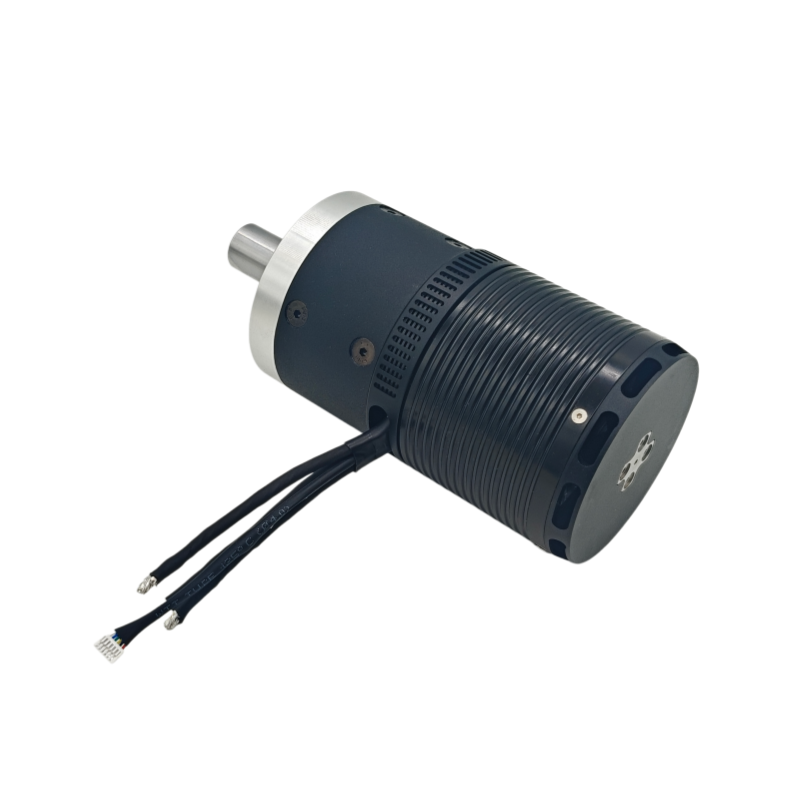

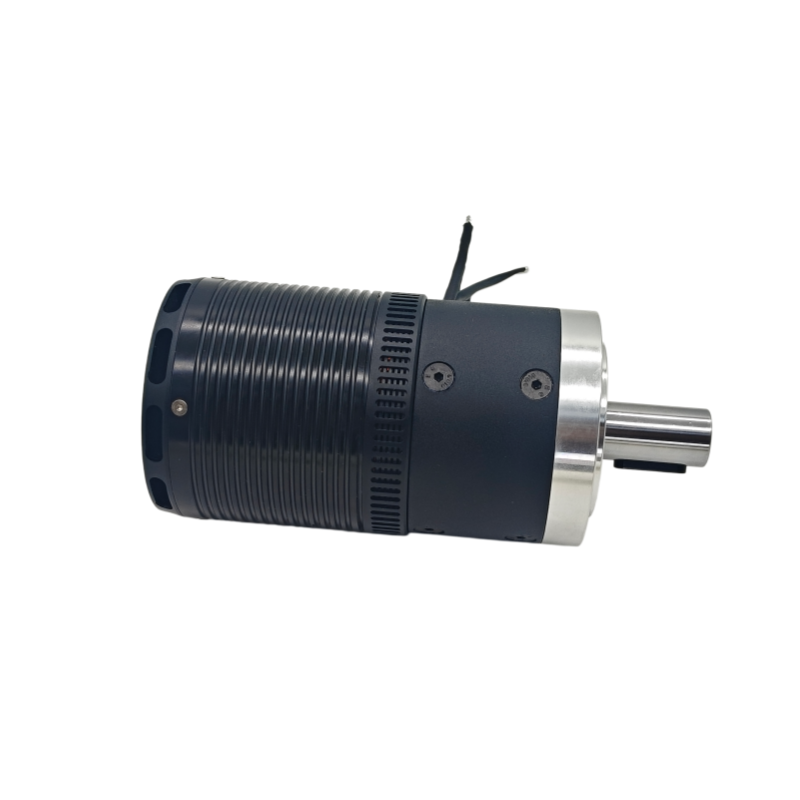

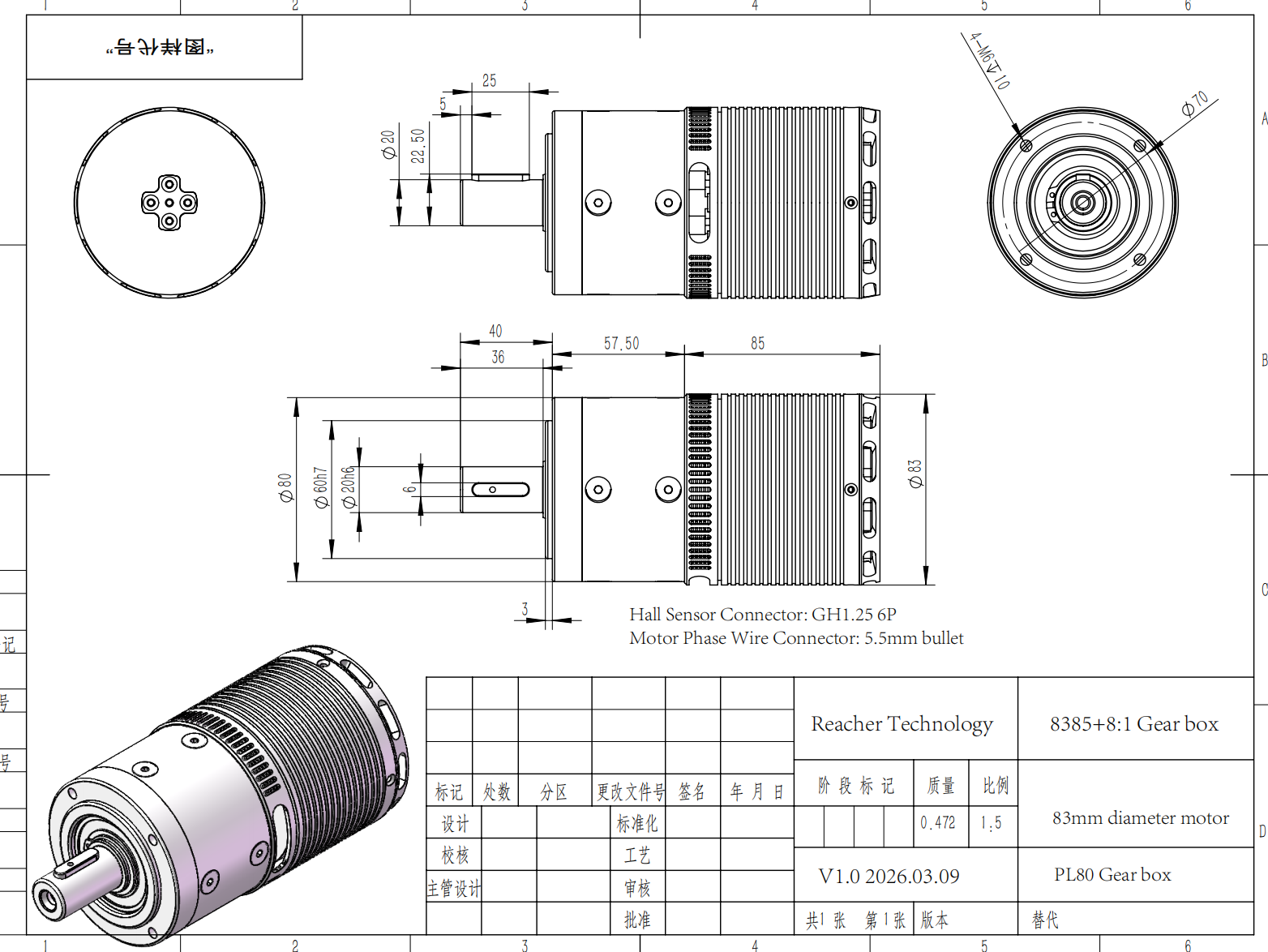

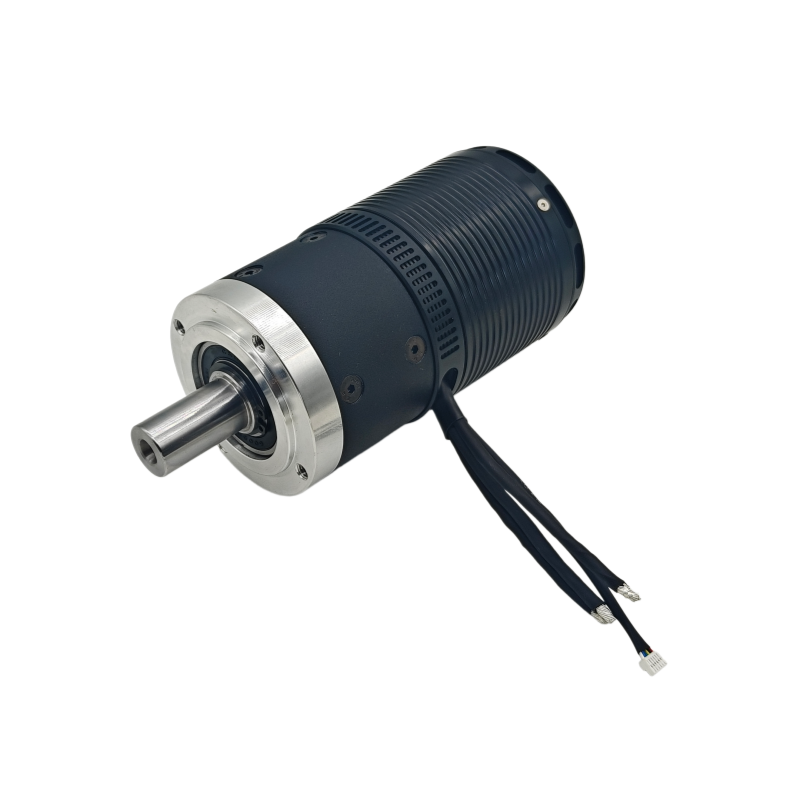

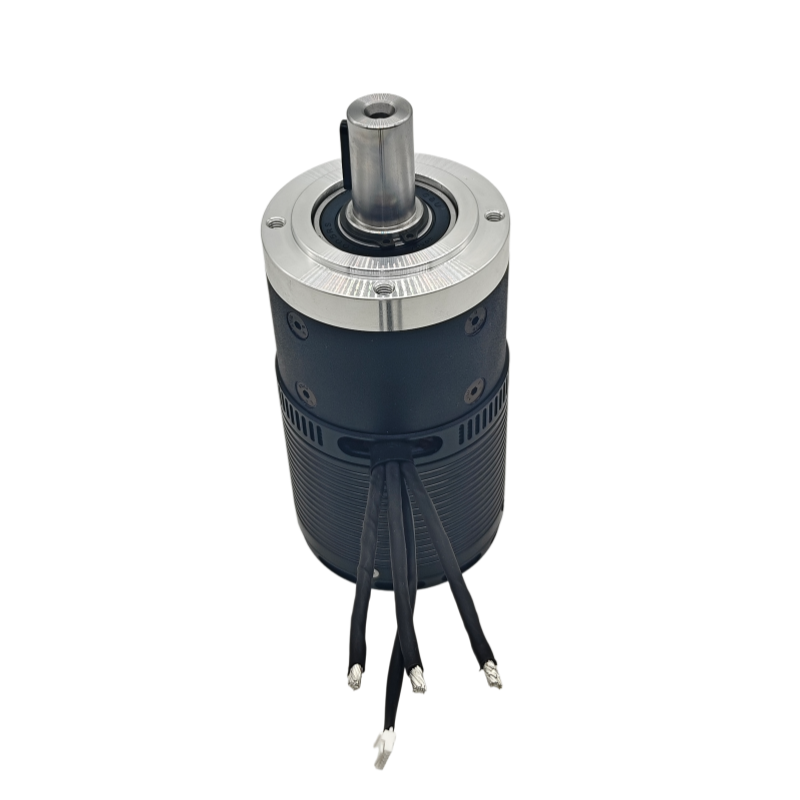

8385 motor with 1:8 gear box

Category: 60–90mm

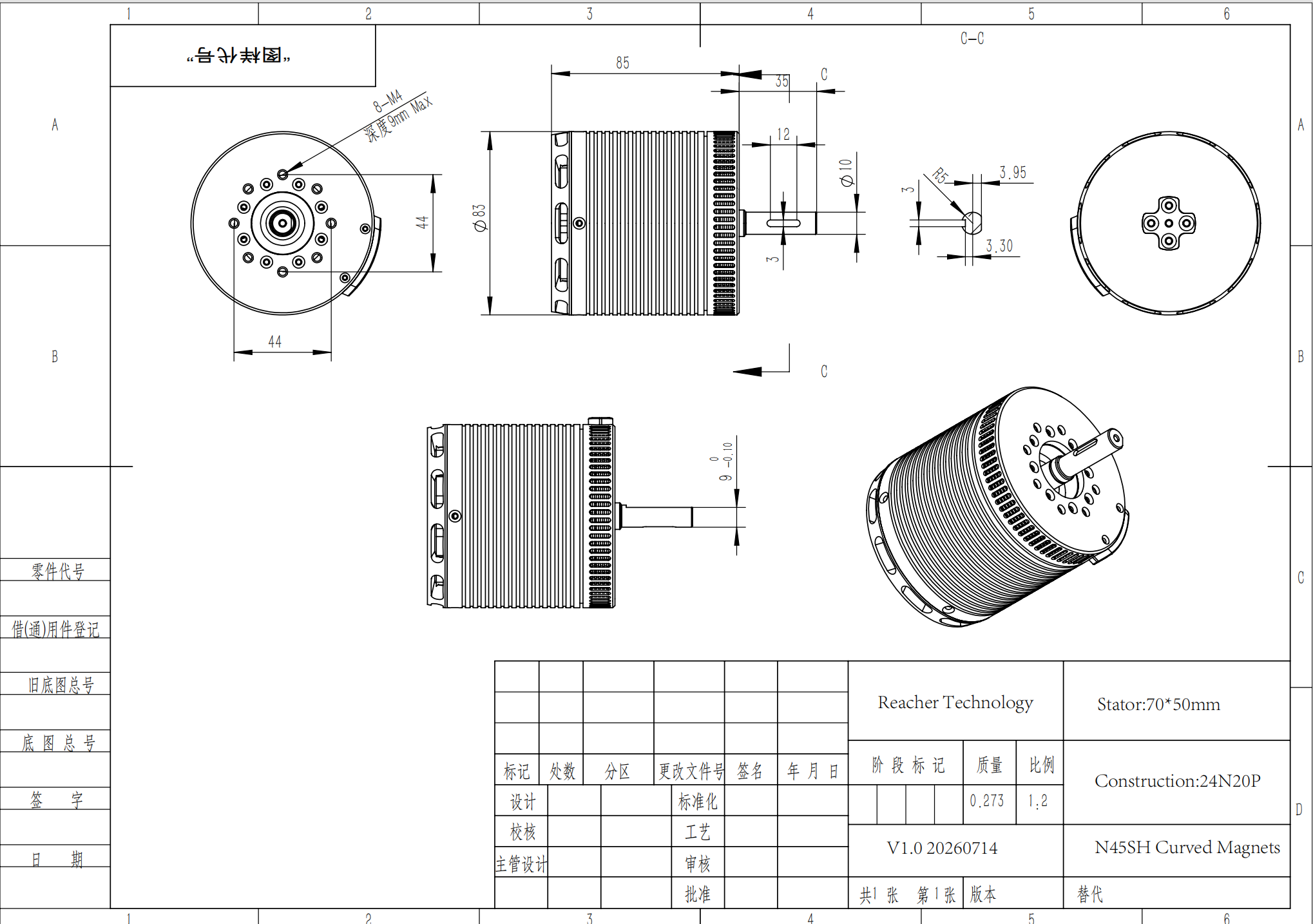

Construction:24N20P
Motor Diameter (mm): 83mm
Motor Length (mm):85mm
Stator Size (mm): 70*50mm
N45SH curved magnets
Battle hardened stator
C&U bearings 6001-2rs x2 Bearing
Balancing:Balanced for high RPM (higher than rated voltage can be used if you have enough gear reduction)
10mm diameter , length 35mm,D-Cut shaft and output with keyway ( with pin)

  • PRODUCT DETAIL

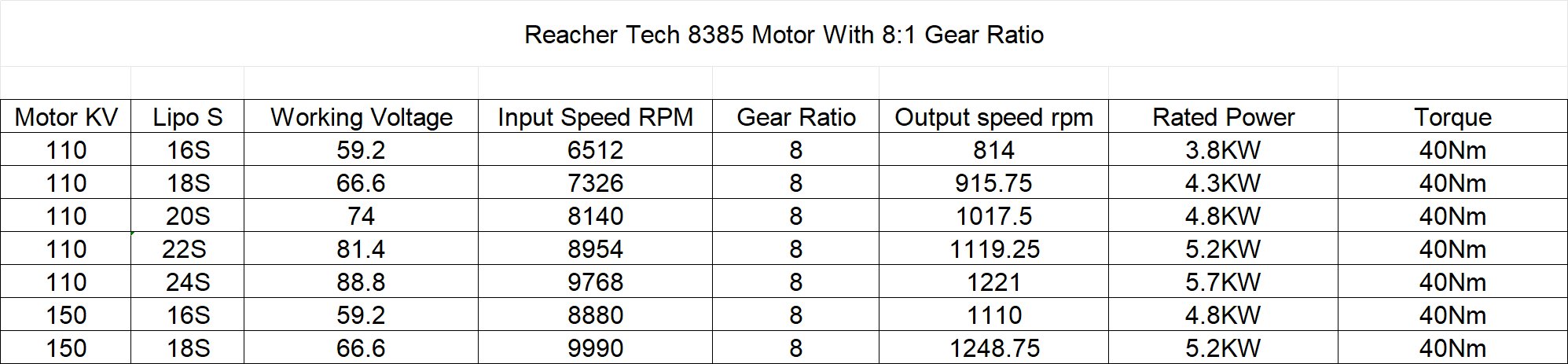

8385 motor  150KV with 8:1 gear ratio 40-50Nm output
