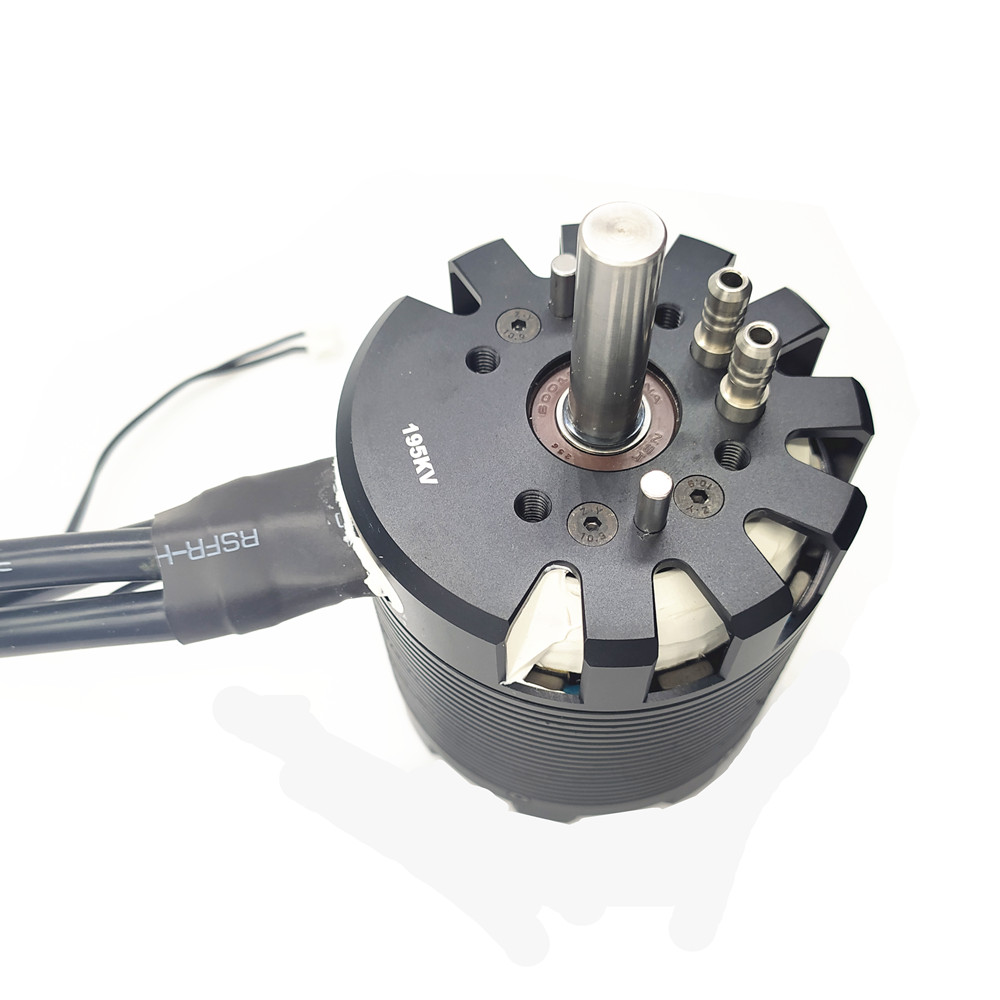

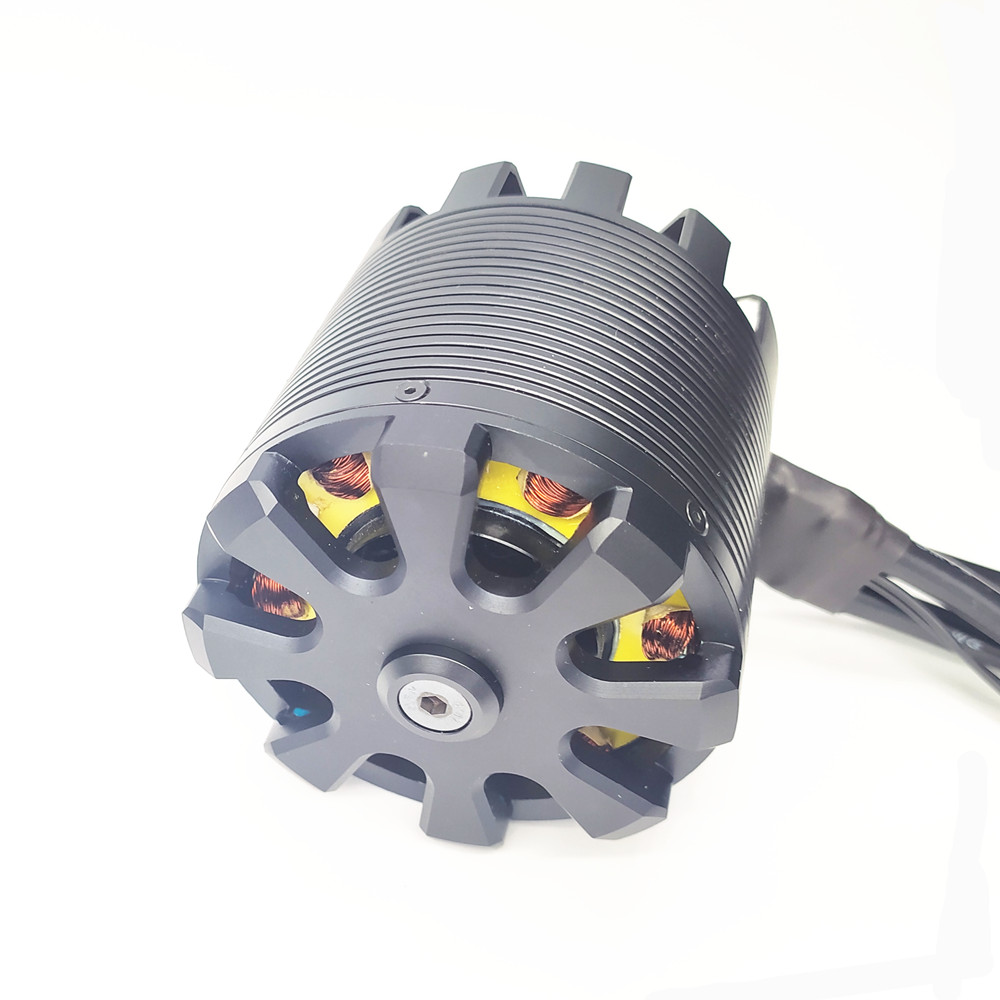

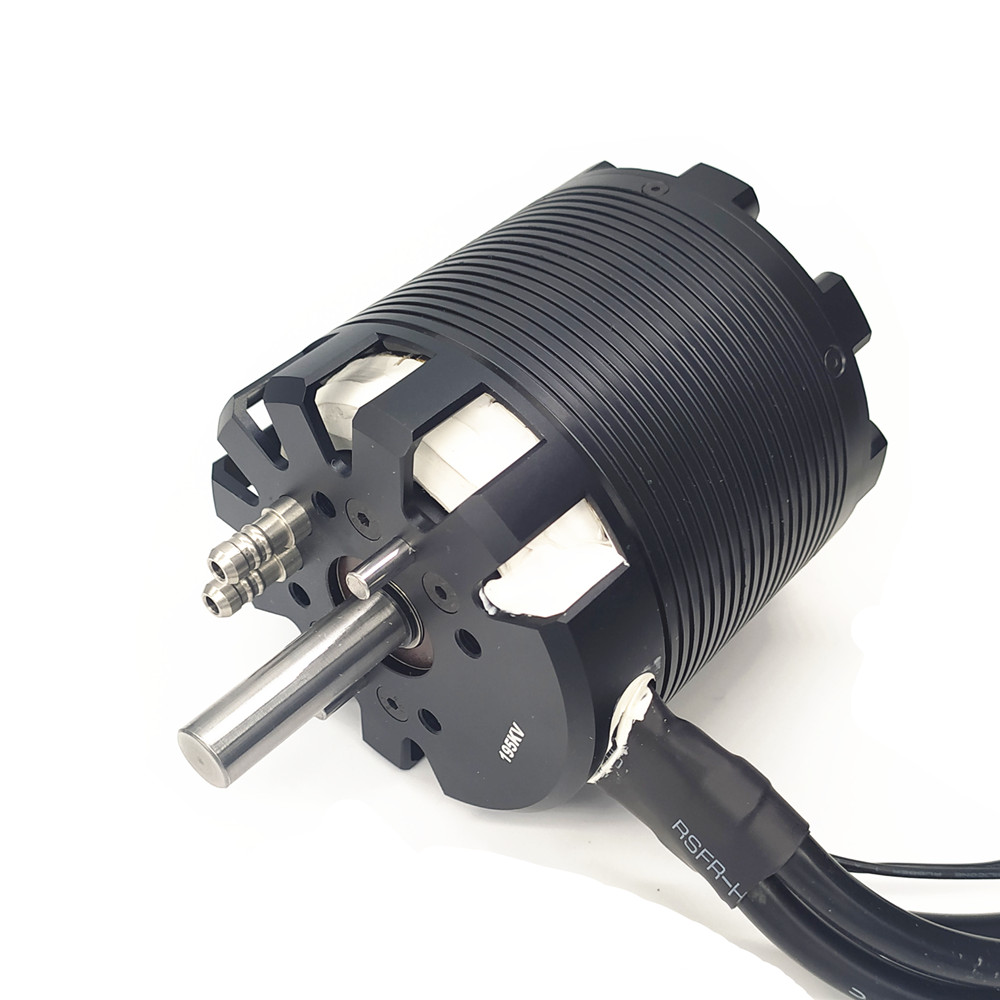

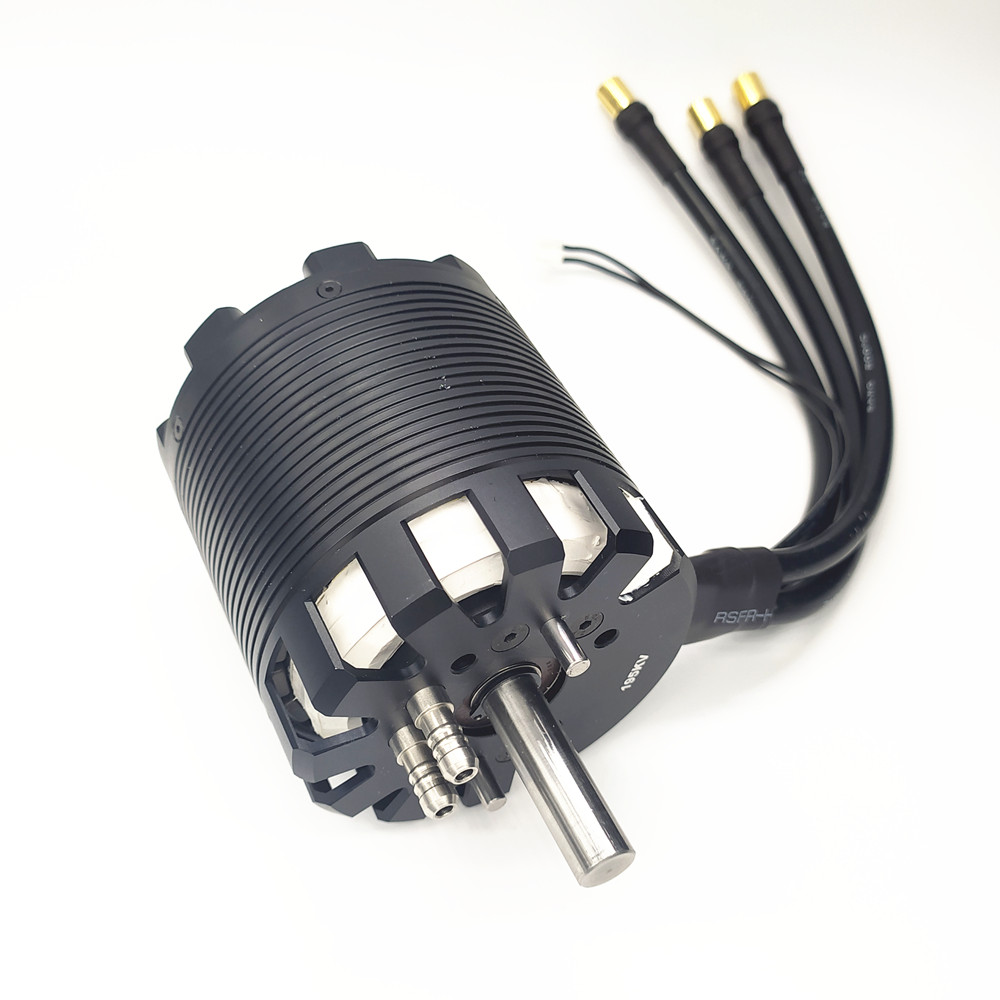

14-22S Lipo max 27.5Nm torque 18kw brushless dc motor RTD90L96
| RT Model No | D90L96-335 | D90L96-270 | D90L96-225 | D90L96-195 | D90L96-170 | D90L96-150 |
| Winding turn (Coils) | 4T | 5T | 6T | 7T | 8T | 9T |
| Coil resistance(mΩ) | 2.5±0.5 | 3.7±0.5 | 4.9±0.5 | 6.3±0.5 | 7.6±0.5 | 10±0.5 |
| Coil inductance(uH) | 2.3±0.2 | 3.7±0.3 | 4.3±0.3 | 6.1±0.4 | 8.7±0.5 | 11.4±0.5 |
| Working Voltage Range (Cells of LiPo) | 6-10S | 8-12S | 10-14S | 12-16S | 14-18S | 14-22S |
| Max Spin Speed (RPM) | 14070 | 13608 | 13230 | 13104 | 12852 | 13860 |
| Speed Constance KV（RPM/V) | 335 | 270 | 225 | 195 | 170 | 150 |
| Torque Constance Kt（N*M/A) | 0.0348 | 0.0412 | 0.0491 | 0.0573 | 0.0641 | 0.0712 |
| Current @8.4V without Loading | 6.4A | 4.6A | 3.4A | 3.0A | 2.5A | 2.2A |
| Max Power（KW） | 9.5 | 10.4 | 12 | 13.3 | 15.6 | 18 |
| Peak Current（A） | 420 | 410 | 400 | 390 | 375 | 360 |
| Max Effeciency | 86% | 97% | 88% | 89% | 90% | 90% |
| Rating Power（KW） | 7.5 | 7.8 | 10.8 | 11.2 | 12.2 | 15.1 |
| Rating Torque（N*M) | 10.5 | 13.8 | 17.8 | 18.8 | 20 | 22 |
| Net Weight (kg) | 2.53 | 2.51 | 2.56 | 2.52 | 2.52 | 2.52 |
| Construction | 24N/20P | |||||
| Dimension (mm) | D90*L96.4 | |||||
| Shaft Diameter (mm) | φ12*L40 | |||||
| Output Wire Length (mm) | 160±5MM | |||||
| Connector | 10.0mm Gold Connector | |||||
| Max Working Temperature | 120 Centigrade | |||||
| Service Life | 10000 hours | |||||
