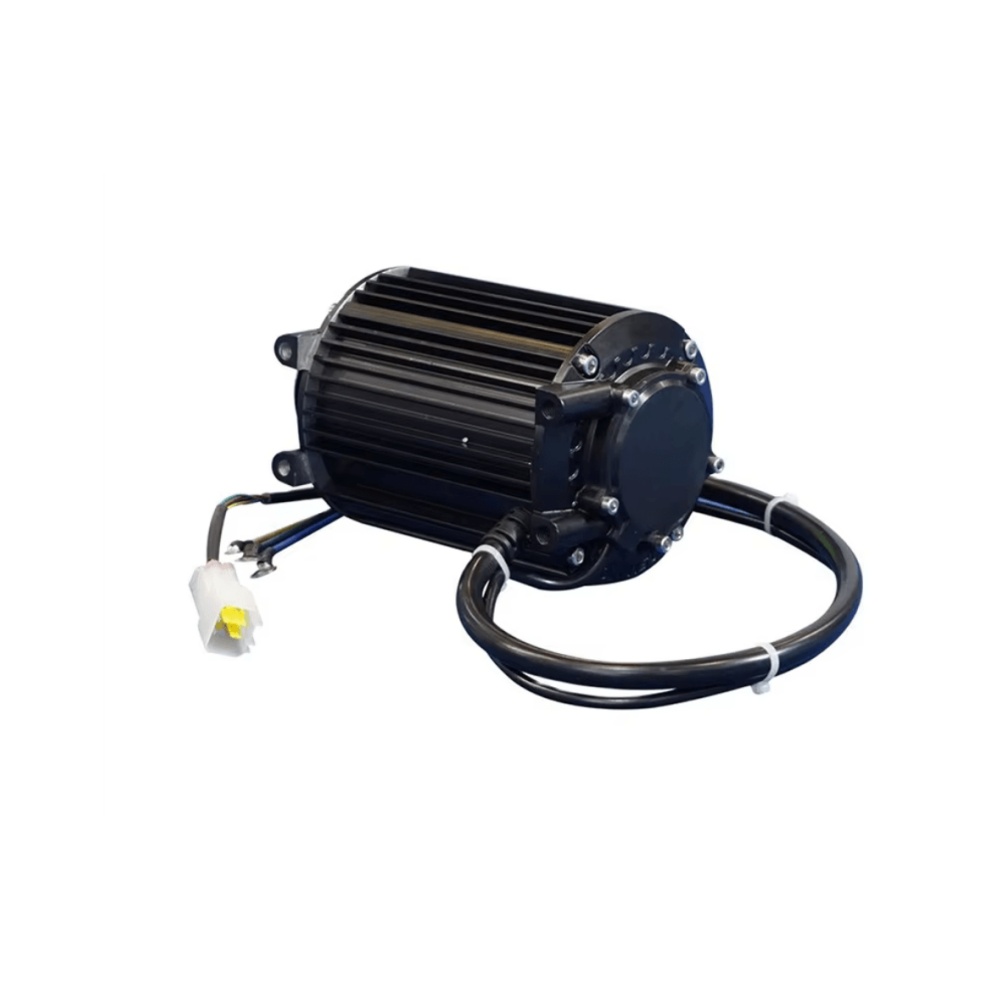

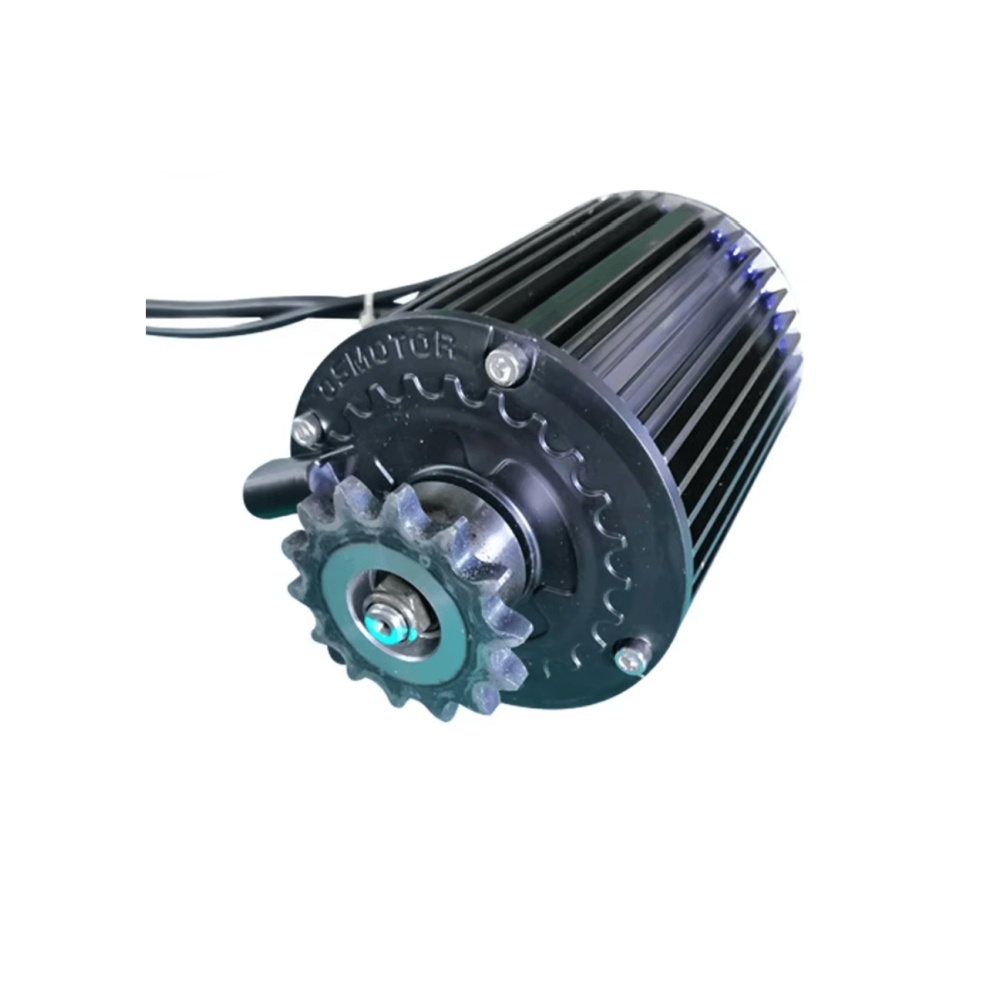

QS90 80H 1000W

Category: Middle drive motor
Motor Type: PMSM Motor
Pole Pairs: 5
MAX Efficiency>90-94%
Max Torque: >22-30Nm after gear reduction
Rated Power: 1000W
Motor Phase angle: 120 degree
Rated Voltage: 60-72V( 48-96V Can be optional)
Sensor Type: Hall sensor
Motor Phase Shift: 60

PRODUCT DETAIL

Motor Specification:

1. Model Number:QS90 80H Mid-drive PMSM Motor

2.Rated voltage:60V/72V

3. Rated power:1000W

4. Rated current: 10-20A

5. Max Efficiency:90-94%

6. Rated Torque:10-18N.M

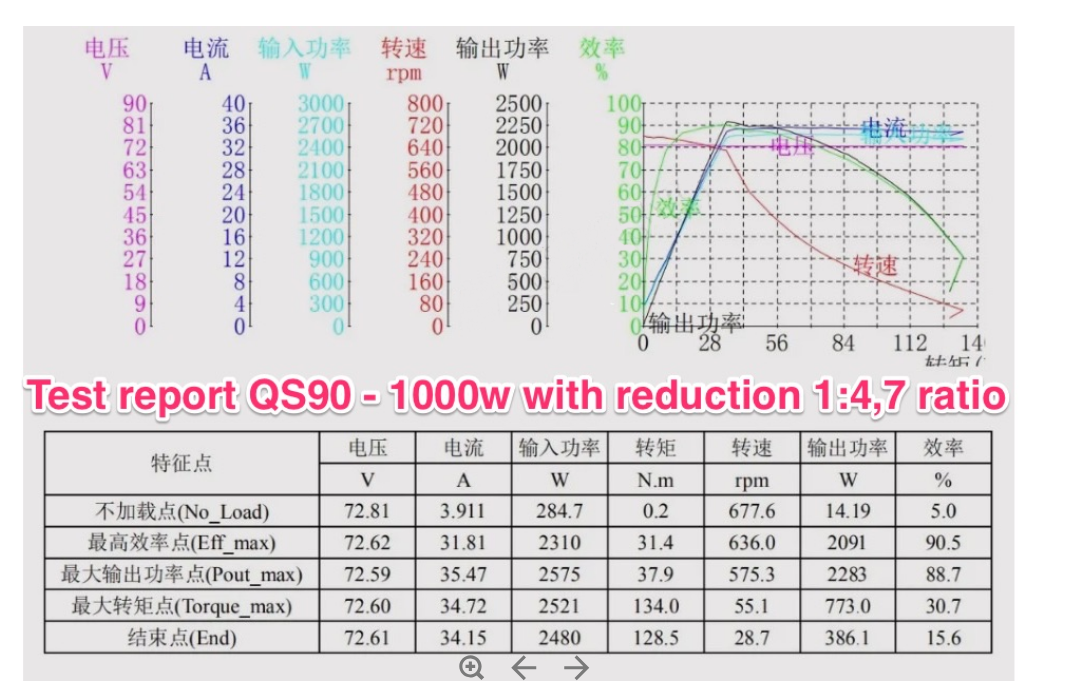

7. Max. torque:22-30N.M (130N.M after 1:4.63 Ratio)

8. Motor Phase angle: 120 degree

9. Motor Phase Shift: 60

10.Pole pairs: 5

11. Over-load working in short time: 1.6 times on rated torque works in 5 mins

12. Sensor type: Hall sensor

13. Winding working tem.: Not high than 150 degree

14. Motor phase cable: 3 x 4mm2 cable

15. Magnet grade: 80H (Working tem. under 150 degree)

16. Matching Controller current(Battery supply to controller): 35A

17. Cooling method: Air cooling

18. Phase cable connector: 43-5C

19. Hall wire connector: DJ7062-2.3-11 DJ611-2.3

20. Insulation Grade: Grade F

21. Water proof grade: IP65

22. N.W.:6.5kgs G.W.:7.5kgs
