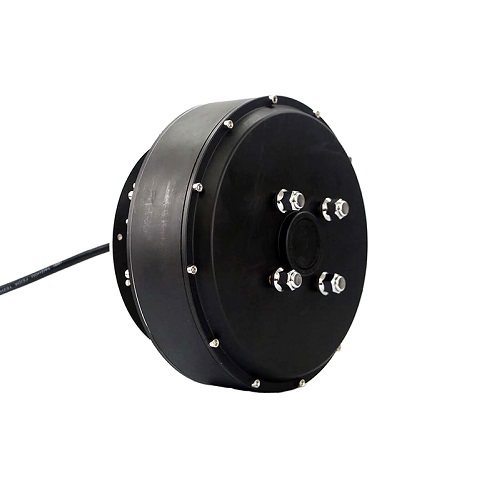

260 Single Shaft Electric Car Hub Motor(45H) 5000W V4 Type with 5.0x 12 Rim

260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.

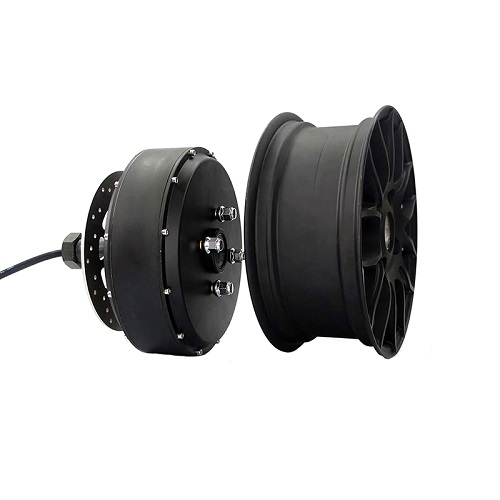

The motor with 12inchx5.0 detached rim

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: 260 Single shaft out
3. Rim: 5.0*12 Rim with PCD 4 x 100MM
4. Magnet: 45H Curved Magnets with SH(340Degree) Lever
5. Pole Pairs: 16 Pairs
6. Rated Power: 5000W
7. Peak Power: 10000W
8. Rated Voltage: 72V( 60V-96V Can be optional)
9. Max No-load RPM: 1320RPM
10. Max Torque: 230N.M
11. Max Efficiency: 90%

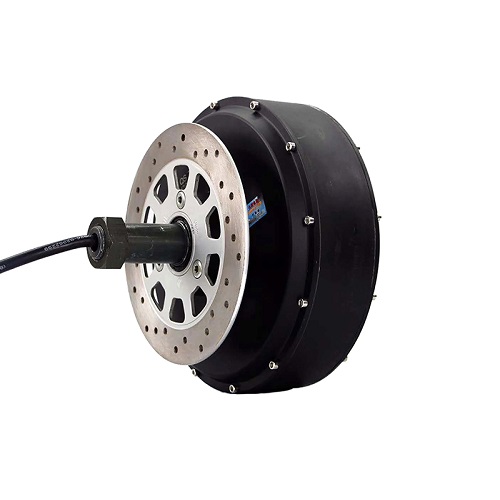

12. Brake type: Disc brake
13. Winding Core material: Aluimium
14. Cross Section of Phase wire: 16mm2
15. Hall sensor phasing angle: 120 degree
16. Temperature Sensor: Optional
17. Working Temperature: 70 degree, Peak 120 degree
18. Waterproof Grade: IP54
19. W./ G..W. : 18kgs / 20kgs
20. Package Size: 44*43*41CM
