QS260 1500W V1

Category: QS 260 Motor
Motor design: 260 Single shaft out

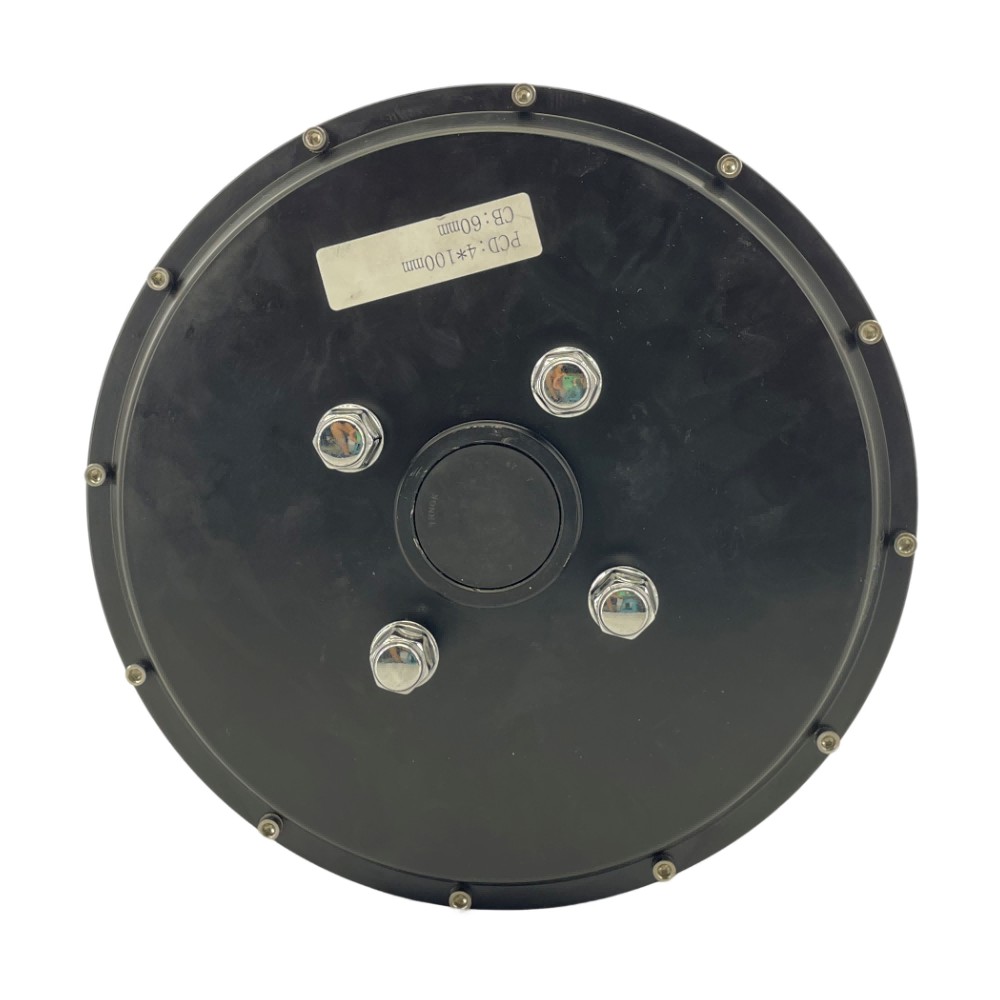

Bolts Pattern: 4 x 100MM or customs
Pole Pairs: 23 Pairs
Magnet Height: 30H Straight Magnets
Rated Power: 1500W
Max Power: 1950W
Rated Voltage:48V( 48V-72V Can be optional)
Max Torque: 130N.M
Max No-load RPM: 600RPM

  • PRODUCT DETAIL

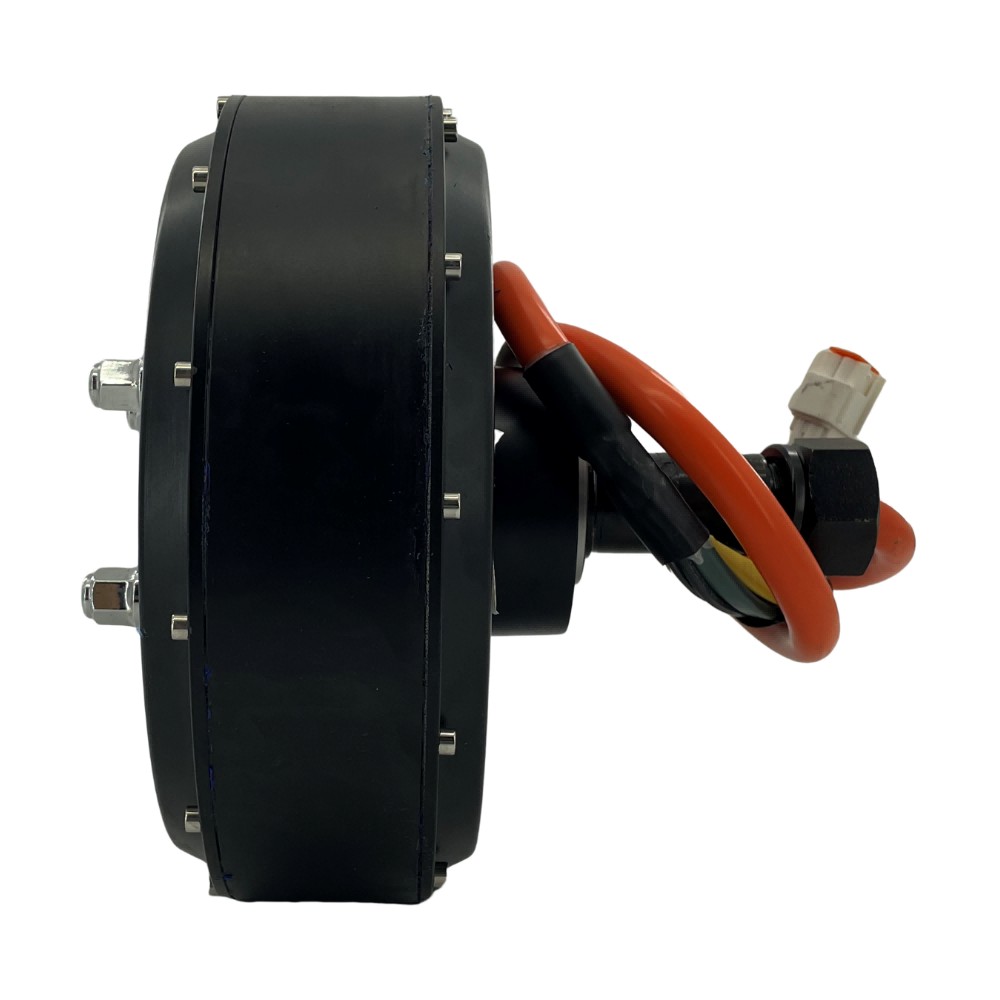

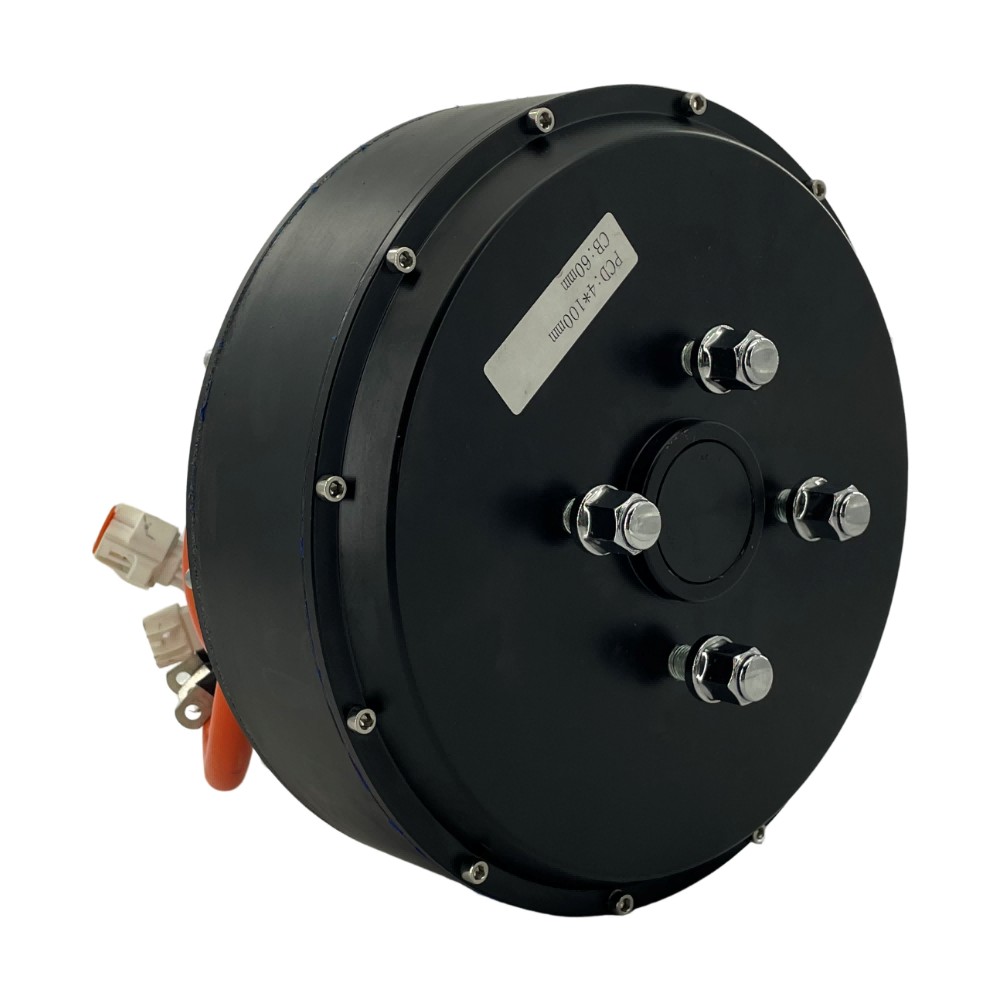

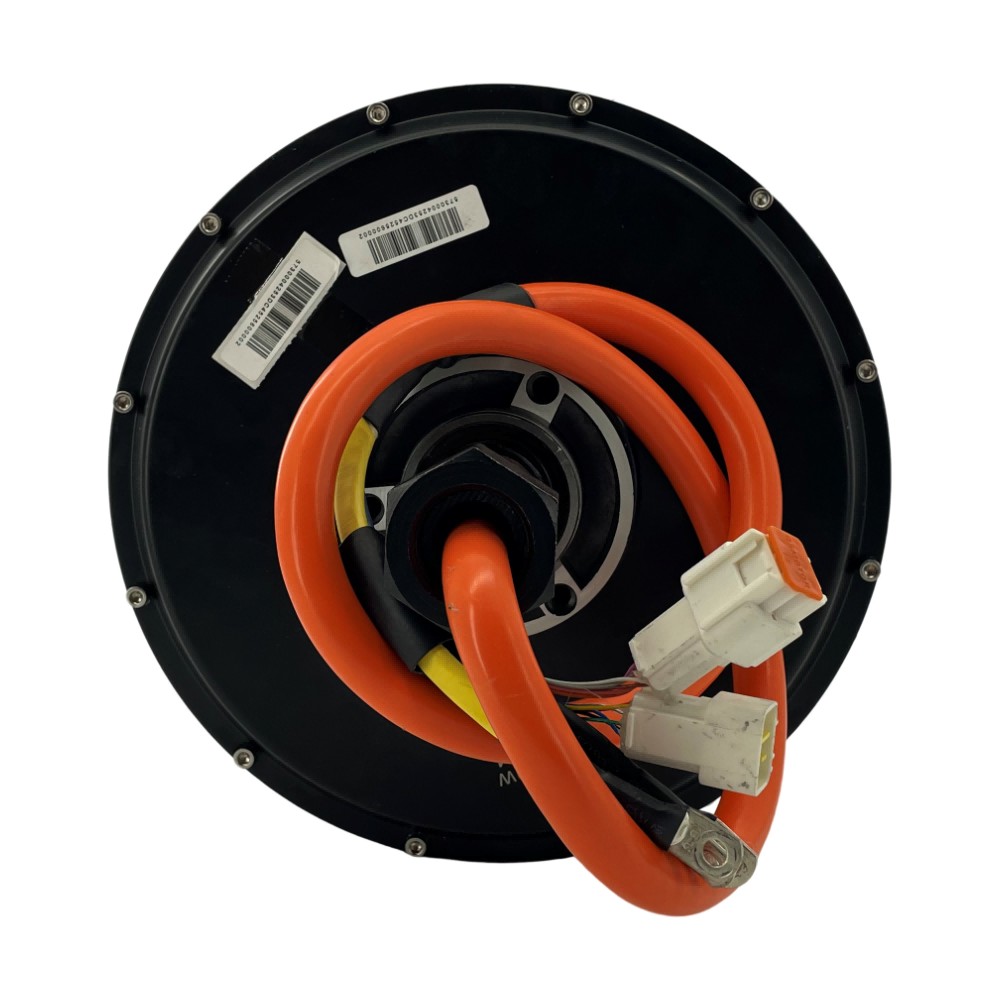

QS260 Single Shaft Electric Car Hub Motor(30H) 1500W V1 Type



260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.

Version 1 and Version 3 can be optional



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: 260 Single shaft out
  3. Magnet: 30H Straight mangets
  4. Pole Pairs: 23 Pairs
  5. Rated Power: 1500W
  6. Peak Power: 1950W
  7. Rated Voltage: 48V( 48V-72V Can be optional)
  8. Max No-load RPM: 600RPM
  9. Max Torque: 130N.M
  10. Max Efficiency: 87%
  11. Brake type: Disc brake
  12. Winding Frame material: Steel
  13. Cross Section of Phase wire: 8mm2
  14. Hall sensor phasing angle: 120 degree
  15. Temperature Sensor: Optional
  16. Working Temperature: 70 degree, Peak 120 degree
  17. Waterproof Grade: IP66
  18. W./ G..W. : 18kgs / 20kgs
  19. Package Size: 44*43*41CM
