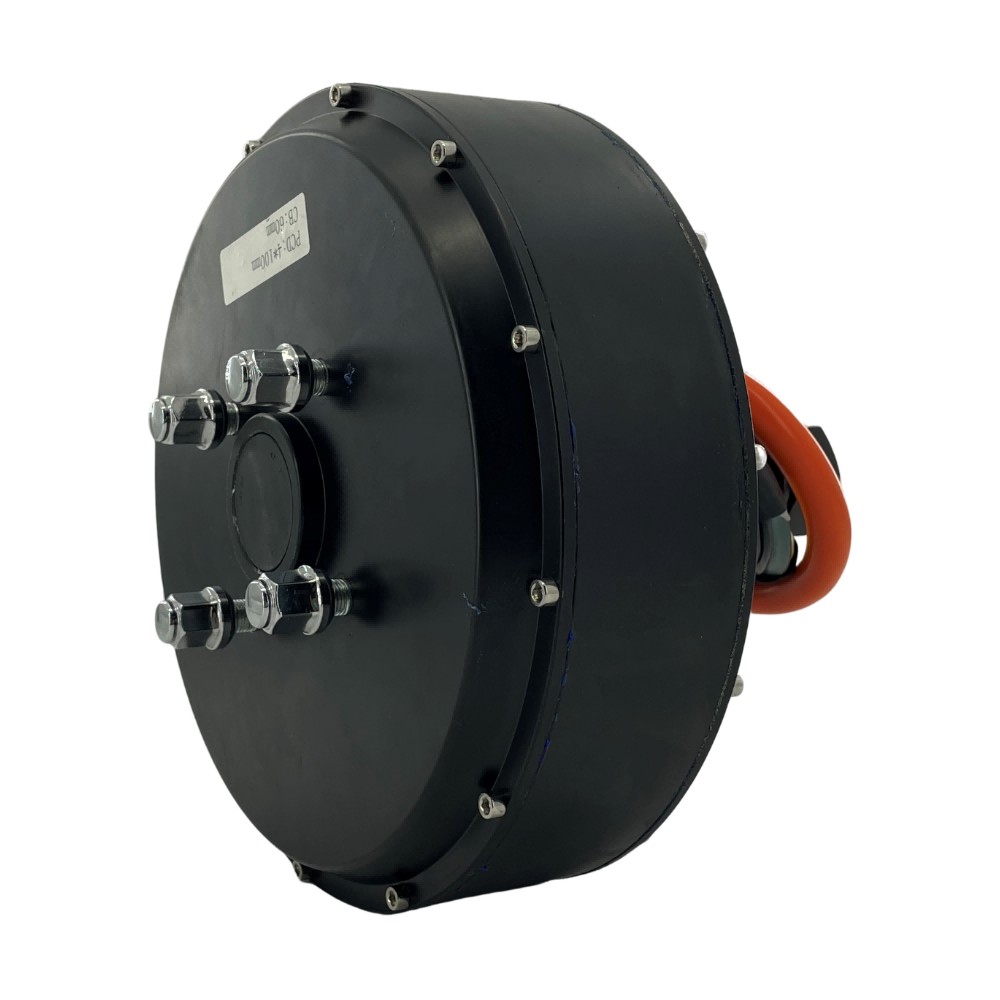

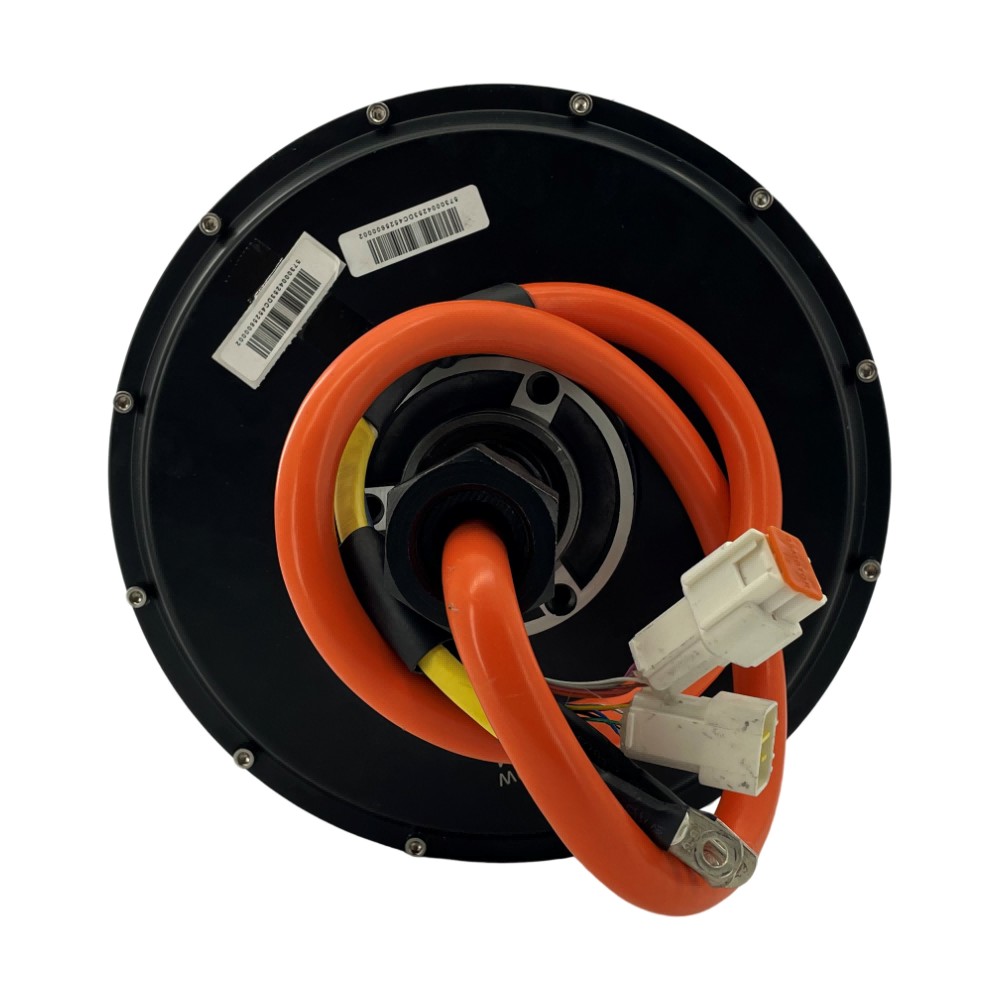

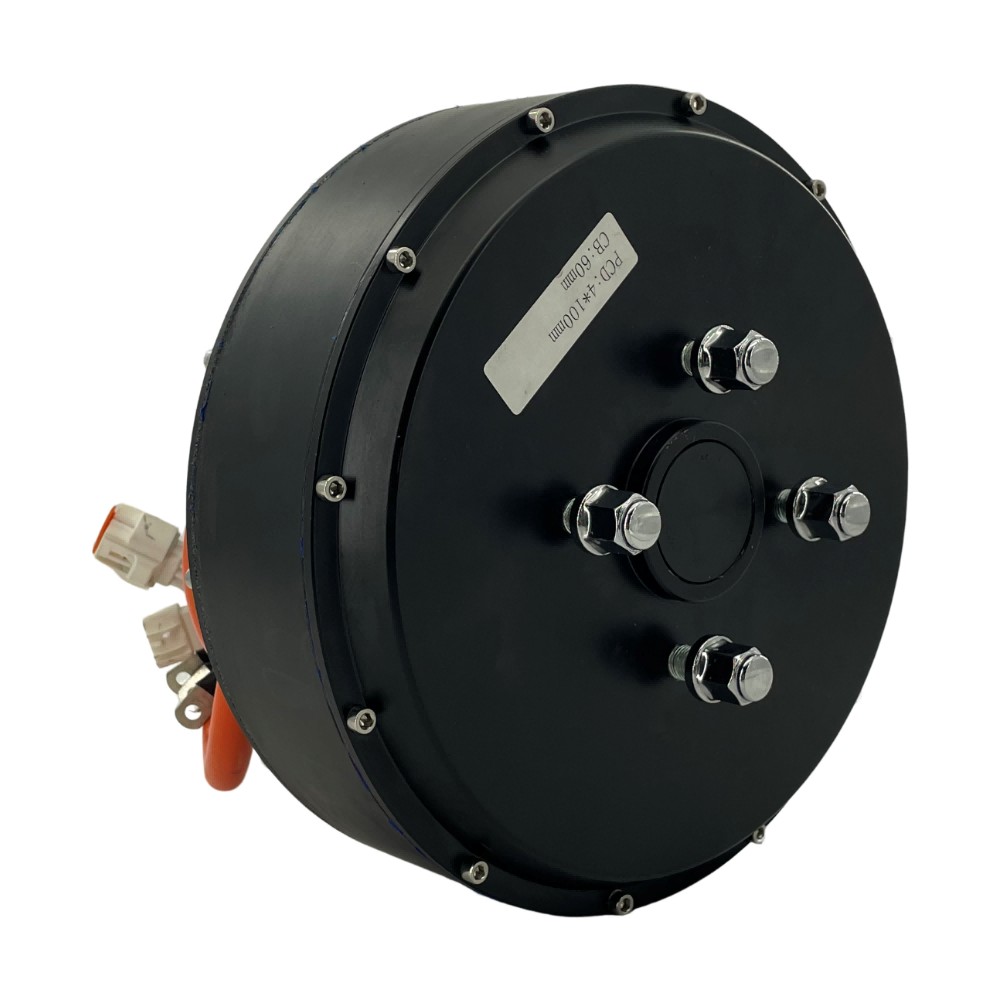

260 Single Shaft Electric Car Hub Motor(40H) 3000W V3 Type

260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.

Version 1 and Version 3 can be optional

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: 260 Single shaft out

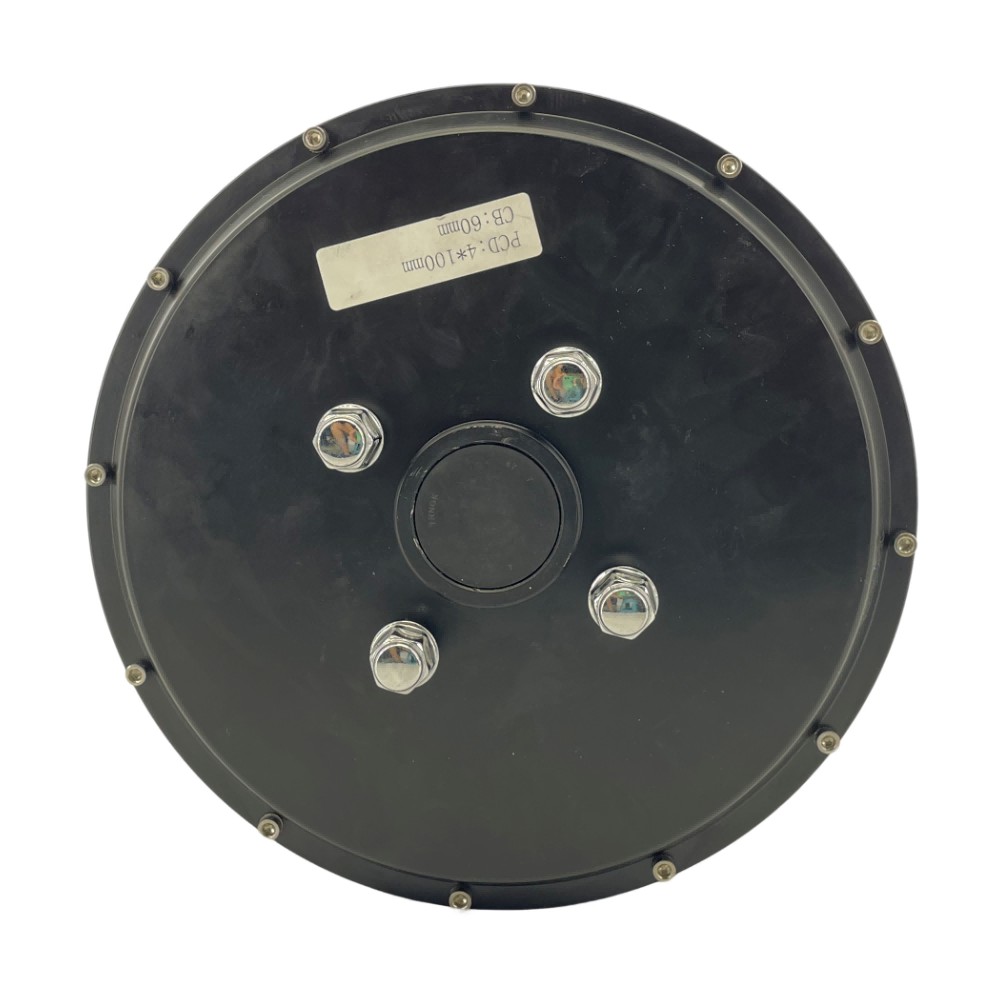

3. Bolts Pattern: 4 x 100MM
4. Magnet: 40H Curved Magnets with SH(340Degree) Lever
5. Pole Pairs: 16 Pairs
6. Rated Power: 3000W
7. Peak Power:6000W
8. Rated Voltage: 72V( 60V-96V Can be optional)
9. Max No-load RPM: 1280RPM
10. Max Torque: 190N.M
11. Max Efficiency: 90%
12. Brake type: Disc brake
13. Winding Core material: Aluimium
14. Cross Section of Phase wire: 16mm2
15. Hall sensor phasing angle: 120 degree
16. Temperature Sensor: Optional
17. Working Temperature: 70 degree, Peak 120 degree
18. Waterproof Grade: IP54
19. W./ G..W. : 18kgs / 20kgs
20. Package Size: 44*43*41CM
