SPT5425LV - 180

Category: SPT Brand
Potentiometer: Mechanics
Motor:Core
Voltage Range: 4.8V/6.0V
Neutral Point:1500μs
Signal Frequency:330Hz
Operating Speed: 4.8V/0.22''/60°
Stall Torque: 4.8V/24kg.cm
Operating Speed:  6.0V/0.18''/60°
 Stall Torque: 6.0V/26kg.cm

  • PRODUCT DETAIL

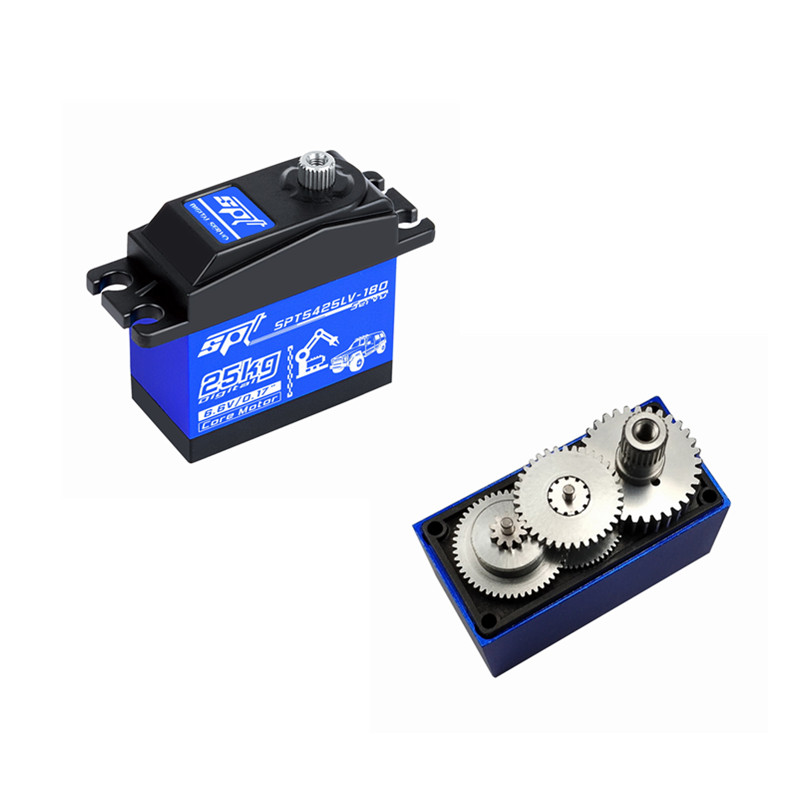

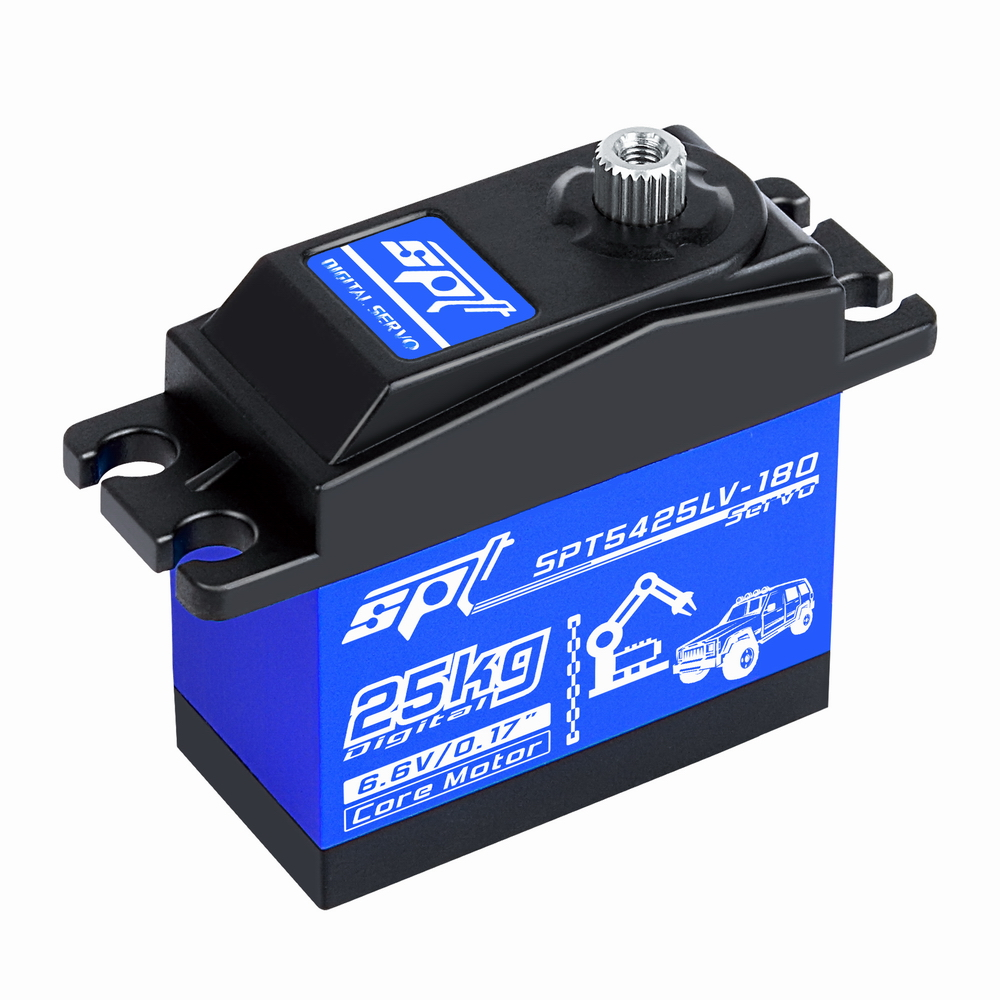

SPT5425LV-180 25KG 180 Degree Mini Digital Metal Gear Servo Motor For Rc Robot

Brand:  SPT Servo Potentiometer:  Mechanics
Motor:  Core Voltage Range:  4.8V/6.0V
Neutral Point:  1500μs Signal Frequency:  330Hz
PWM Voltage:  3.3V-5.0V PWM Voltage:  3.3V-5.0V
Feedback Angle:  No Operating Temperature:  -10-50
Cycle:  20ms Dead band:  4μs
Default Direction:  CCW Yes / no Lock:  Lock
Remote control Angle:  90° 500-2500μs Angle:  180° / PWM
Quiescent Current:  50mAh Rated Current:  1.2A
Blocking Current:  2.5A Weight / Dimensions:  57g / 40.5*20*40.5mm

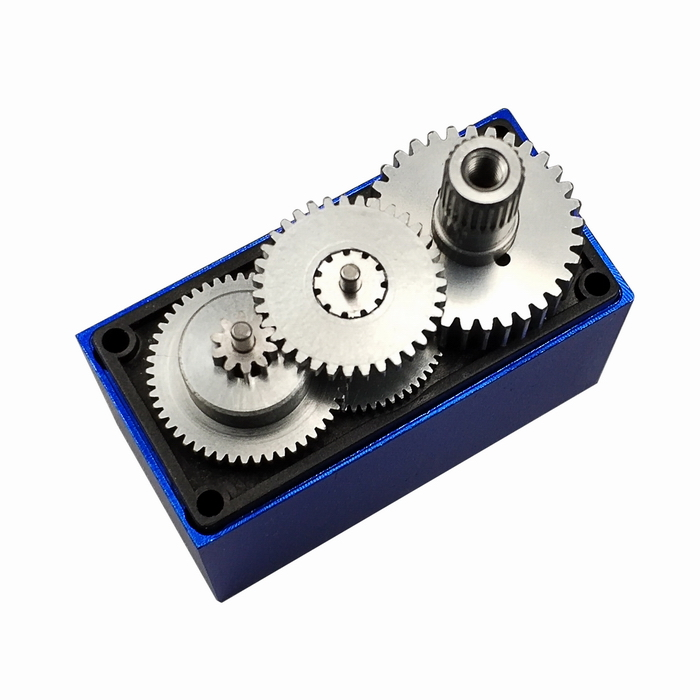

Output Gear:  Futaba 25T Gear Material:  All Metal Gear
Shell Material:  Half Aluminum Shell Bearing:  2BB
Connector Wire Length:  260MM line Definition:  Brown-/Red+/Orange s
Operating Speed:  4.8V/0.22''/60°  6.0V/0.18''/60°  /
Stall Torque:  4.8V/24kg.cm  6.0V/26kg.cm  /
