6375 - V4.0
- PRODUCT DETAIL

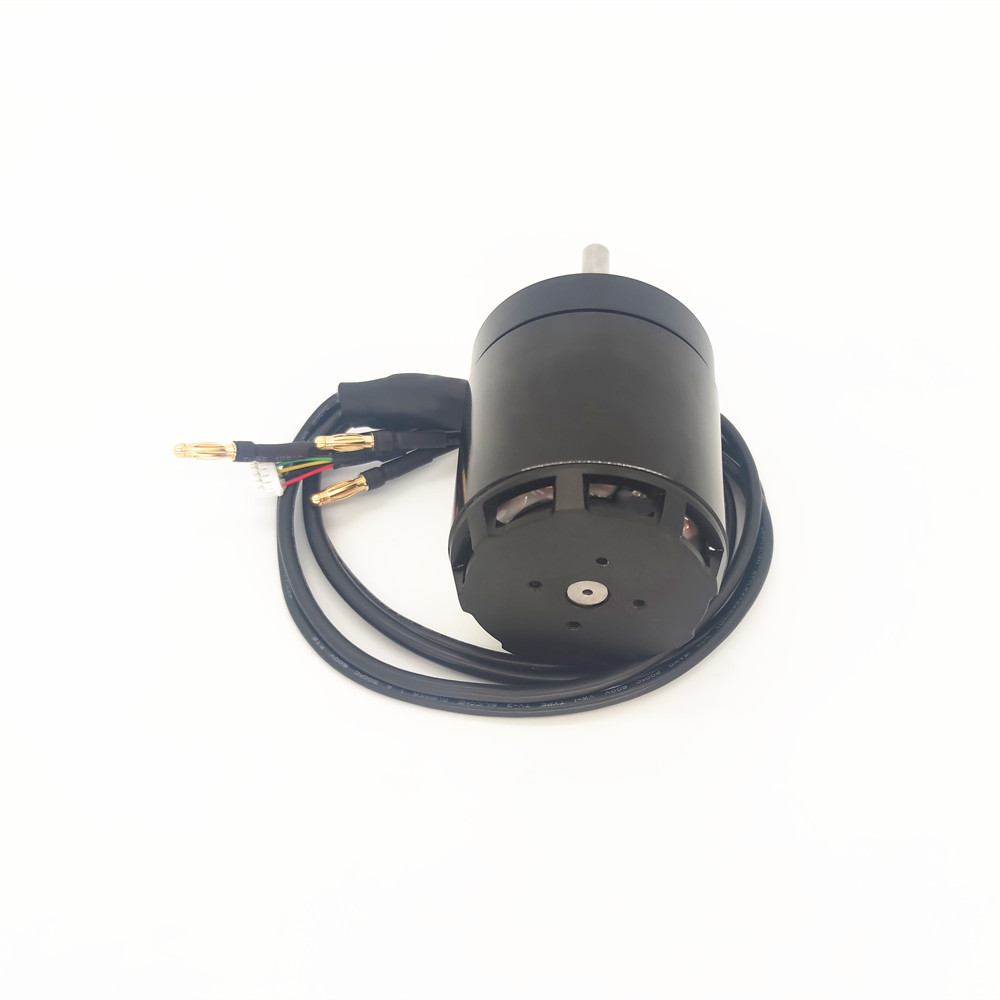

6375 Skateboard brushless dc motor
| Model No | Reacher 6375 V4.0 N45SH Grade magnet ESK8 Skateboard BLDC Motor | ||||||||
| Construction | 12N14P | ||||||||
| Motor Diameter (mm) | 64mm | ||||||||
| Motor Length (mm) | 75mm | ||||||||
| Stator Size (mm) | 53*40mm | ||||||||
| Stator Silicon steel sheets (mm) | 0.2mm | ||||||||
| Magnet | N45SH magnets,With retaining ring at the top of the magnet | ||||||||
| Battle hardened | Everything (magnets, stator, sensor pcb) | ||||||||
| Bearing | NMB Brand, Quad bearing design | ||||||||
| Rotor Steel Thickness | 2.5mm steel (better protection from impacts, improves magnetic flux path) | ||||||||
| Balancing | Balanced for high RPM (higher than rated voltage can be used if you have enough gear reduction) | ||||||||
| Shaft | 8mm shaft with keyway (10mm optional,check before order) | ||||||||
| Hall Sensor | Honeywell SS41F with 100nf capacitor | ||||||||
| Sensor | Hall + temperature sensor, 2mm pitch JST Style vesc compatible plug (30cm) | ||||||||
| Wires | 12awg silicone phase wires (30cm) with 4mm bullets | ||||||||
| Mounting Pattern | 44mm x M4 | ||||||||
| Net Weight | 1kg | ||||||||
| 24V | 6375 | ||||||||
| KV(Rpm/V) | 110 | 117 | 127 | 138 | 152 | 170 | 190 | 220 | 255 |
| Max. Power (W) | 1248 | 1368 | 1488 | 1632 | 1776 | 1944 | 2208 | 2496 | 2952 |
| Rated Power (W) | 874 | 958 | 1042 | 1142 | 1243 | 1361 | 1546 | 1747 | 2066 |
| Max Torque (N.m) | 5.42 | 5.58 | 5.59 | 5.65 | 5.58 | 5.46 | 5.55 | 5.42 | 5.53 |
| Rated Torque (N.m) | 3.16 | 3.26 | 3.26 | 3.29 | 3.25 | 3.19 | 3.24 | 3.16 | 3.22 |
| Noload RPM (rpm) | 2640 | 2808 | 3048 | 3312 | 3648 | 4080 | 4560 | 5280 | 6120 |
| Rated RPM (rpm) | 2112 | 2246 | 2438 | 2650 | 2918 | 3264 | 3648 | 4224 | 4896 |
| Max. Amps (30 sec) (A) | 52 | 57 | 62 | 68 | 74 | 81 | 92 | 104 | 123 |
| Continious currents (A) | 36 | 40 | 43 | 48 | 52 | 57 | 64 | 73 | 86 |
| 36V | 6375 | ||||||||
| KV(Rpm/V) | 110 | 117 | 127 | 138 | 152 | 170 | 190 | 220 | 255 |
| Max. Power (W) | 1872 | 2052 | 2232 | 2448 | 2664 | 2916 | 3312 | 3744 | 4428 |
| Rated Power (W) | 1310 | 1436 | 1562 | 1714 | 1865 | 2041 | 2318 | 2621 | 3100 |
| Max Torque (N.m) | 5.42 | 5.58 | 5.59 | 5.65 | 5.58 | 5.46 | 5.55 | 5.42 | 5.53 |
| Rated Torque (N.m) | 3.16 | 3.26 | 3.26 | 3.29 | 3.25 | 3.19 | 3.24 | 3.16 | 3.22 |
| Noload RPM (rpm) | 3960 | 4212 | 4572 | 4968 | 5472 | 6120 | 6840 | 7920 | 9180 |
| Rated RPM (rpm) | 3168 | 3370 | 3658 | 3974 | 4378 | 4896 | 5472 | 6336 | 7344 |
| Max. Amps (30 sec) (A) | 52 | 57 | 62 | 68 | 74 | 81 | 92 | 104 | 123 |
| Continious currents (A) | 36 | 40 | 43 | 48 | 52 | 57 | 64 | 73 | 86 |
| 48V | 6375 | ||||||||
| KV(Rpm/V) | 110 | 117 | 127 | 138 | 152 | 170 | 190 | 220 | 255 |
| Max. Power (W) | 2496 | 2736 | 2976 | 3264 | 3552 | 3888 | 4416 | 4992 | 5904 |
| Rated Power (W) | 1747 | 1915 | 2083 | 2285 | 2486 | 2722 | 3091 | 3494 | 4133 |
| Max Torque (N.m) | 5.42 | 5.58 | 5.59 | 5.65 | 5.58 | 5.46 | 5.55 | 5.42 | 5.53 |
| Rated Torque (N.m) | 3.16 | 3.26 | 3.26 | 3.29 | 3.25 | 3.19 | 3.24 | 3.16 | 3.22 |
| Noload RPM (rpm) | 5280 | 5616 | 6096 | 6624 | 7296 | 8160 | 9120 | 10560 | 12240 |
| Rated RPM (rpm) | 4224 | 4493 | 4877 | 5299 | 5837 | 6528 | 7296 | 8448 | 9792 |
| Max. Amps (30 sec) (A) | 52 | 57 | 62 | 68 | 74 | 81 | 92 | 104 | 123 |
| Continious currents (A) | 36 | 40 | 43 | 48 | 52 | 57 | 64 | 73 | 86 |
| 54V | 6375 | ||||||||
| KV(Rpm/V) | 110 | 117 | 127 | 138 | 152 | 170 | 190 | 220 | 255 |
| Max. Power (W) | 2808 | 3078 | 3348 | 3672 | 3996 | 4374 | 4968 | 5616 | 6642 |
| Rated Power (W) | 1966 | 2155 | 2344 | 2570 | 2797 | 3062 | 3478 | 3931 | 4649 |
| Max Torque (N.m) | 5.42 | 5.58 | 5.59 | 5.65 | 5.58 | 5.46 | 5.55 | 5.42 | 5.53 |
| Rated Torque (N.m) | 3.16 | 3.26 | 3.26 | 3.29 | 3.25 | 3.19 | 3.24 | 3.16 | 3.22 |
| Noload RPM (rpm) | 5940 | 6318 | 6858 | 7452 | 8208 | 9180 | 10260 | 11880 | 13770 |
| Rated RPM (rpm) | 4752 | 5054 | 5486 | 5962 | 6566 | 7344 | 8208 | 9504 | 11016 |
| Max. Amps (30 sec) (A) | 52 | 57 | 62 | 68 | 74 | 81 | 92 | 104 | 123 |
| Continious currents (A) | 36 | 40 | 43 | 48 | 52 | 57 | 64 | 73 | 86 |
| 60V | 6375 | ||||||||
| KV(Rpm/V) | 110 | 117 | 127 | 138 | 152 | 170 | 190 | 220 | 255 |
| Max. Power (W) | 3120 | 3420 | 3720 | 4080 | 4440 | 4860 | 5520 | 6240 | 7380 |
| Rated Power (W) | 2184 | 2394 | 2604 | 2856 | 3108 | 3402 | 3864 | 4368 | 5166 |
| Max Torque (N.m) | 5.42 | 5.58 | 5.59 | 5.65 | 5.58 | 5.46 | 5.55 | 5.42 | 5.53 |
| Rated Torque (N.m) | 3.16 | 3.26 | 3.26 | 3.29 | 3.25 | 3.19 | 3.24 | 3.16 | 3.22 |
| Noload RPM (rpm) | 6600 | 7020 | 7620 | 8280 | 9120 | 10200 | 11400 | 13200 | 15300 |
| Rated RPM (rpm) | 5280 | 5616 | 6096 | 6624 | 7296 | 8160 | 9120 | 10560 | 12240 |
| Max. Amps (30 sec) (A) | 52 | 57 | 62 | 68 | 74 | 81 | 92 | 104 | 123 |
| Continious currents (A) | 36 | 40 | 43 | 48 | 52 | 57 | 64 | 73 | 86 |
| 72V | 6375 | ||||||||
| KV(Rpm/V) | 110 | 117 | 127 | 138 | 152 | 170 | 190 | 220 | 255 |
| Max. Power (W) | 3744 | 4104 | 4464 | 4896 | 5328 | 5832 | 6624 | 7488 | 8856 |
| Rated Power (W) | 2621 | 2873 | 3125 | 3427 | 3730 | 4082 | 4637 | 5242 | 6199 |
| Max Torque (N.m) | 5.42 | 5.58 | 5.59 | 5.65 | 5.58 | 5.46 | 5.55 | 5.42 | 5.53 |
| Rated Torque (N.m) | 3.16 | 3.26 | 3.26 | 3.29 | 3.25 | 3.19 | 3.24 | 3.16 | 3.22 |
| Noload RPM (rpm) | 7920 | 8424 | 9144 | 9936 | 10944 | 12240 | 13680 | 15840 | 18360 |
| Rated RPM (rpm) | 6336 | 6739 | 7315 | 7949 | 8755 | 9792 | 10944 | 12672 | 14688 |
| Max. Amps (30 sec) (A) | 52 | 57 | 62 | 68 | 74 | 81 | 92 | 104 | 123 |
| Continious currents (A) | 36 | 40 | 43 | 48 | 52 | 57 | 64 | 73 | 86 |
