6385 V6.0
- PRODUCT DETAIL

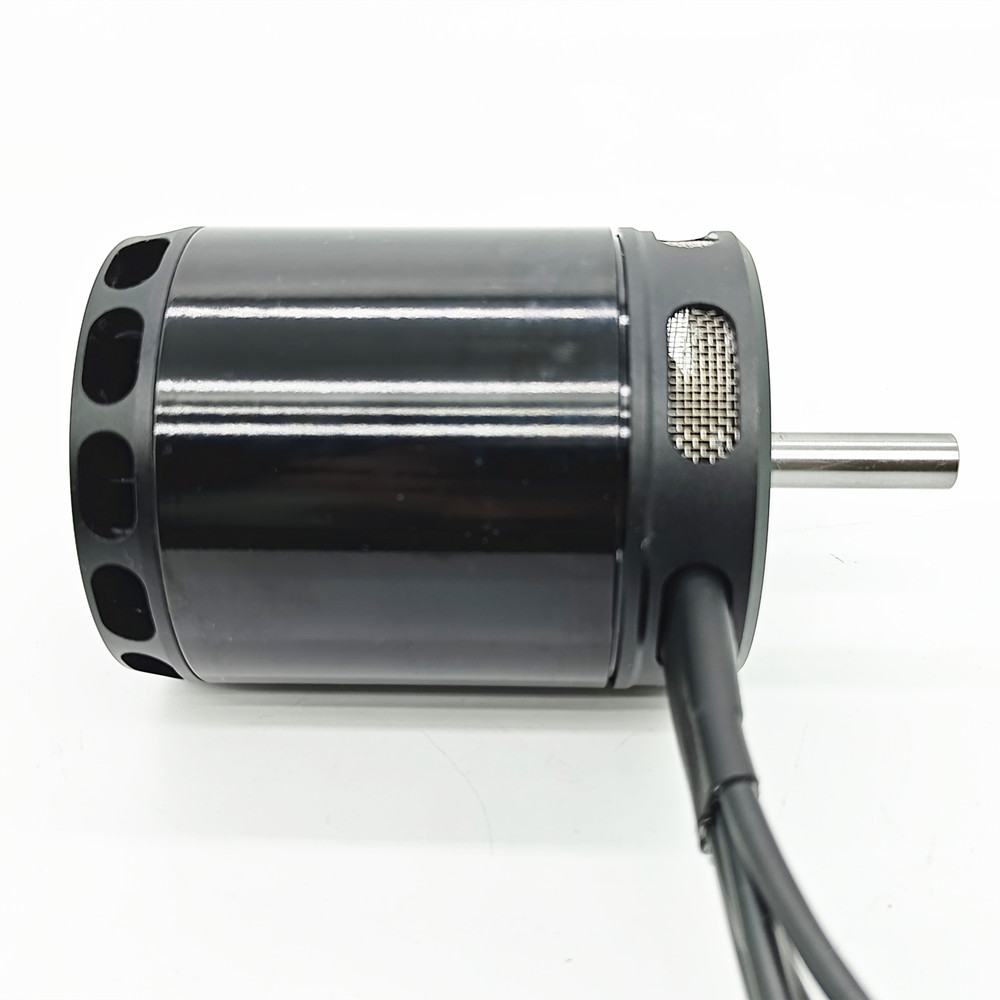

| Model No | Reacher 6385 V6.0 N45SH Grade Curved Magnet ESK8 Skateboard BLDC Motor | |||||||||||
| Construction | 12N14P (Please make sure your VESC Erpm enough for our motor）,Warm suggest you try our Reacher VESC together to reach the high performance | |||||||||||
| Motor Diameter (mm) | 63mm | |||||||||||
| Motor Length (mm) | 85mm | |||||||||||
| Stator Size (mm) | 53*50mm | |||||||||||
| Stator Silicon steel sheets (mm) | 0.2mm | |||||||||||
| Magnet | N45SH Curved Magnets,With retaining ring at the top of the magnet | |||||||||||
| Battle hardened | Everything (magnets, stator, sensor pcb) | |||||||||||
| Bearing | NMB or NSK Brand shipped out by random From Nov 2023, 4pcs per motor | |||||||||||
| Rotor Steel Thickness | 2.5mm steel (better protection from impacts, improves magnetic flux path) | |||||||||||
| Balancing | Balanced for high RPM (higher than rated voltage can be used if you have enough gear reduction) | |||||||||||
| Shaft | 8mm or 10mm diameter optional, length 30mm output with keyway ( no pin) (Custom made shaft with long leading time and extra cost) | |||||||||||
| Hall Sensor | Honeywell SS41F with 100nf capacitor,Hall sensor wire length 40cm fixed no change,Sensor PCB next to phase wire exits,VESC compatible PH 2.0mm 6 pin sensor plug. Hall Cable 40cm length fixed no change. | |||||||||||
| Temp Sensor | Temp sensor is NTC10K beta value is B3950 | |||||||||||
| Motor Phase Wires | 12awg silicone phase wires (original 30cm, canbe custom made length) with Amass GC4013 4.0mm bullets | |||||||||||
| Maximum temperature limit | Operating temperature below 100 centigrade | |||||||||||
| Mounting Pattern | Both 30mm x M4/44mm x M4 | |||||||||||
| Net Weight | 1.1kg | |||||||||||
| Packing Weight | 1.4kg | |||||||||||
Reacher Tech 6385 V6.0 ESK8 Skateboard BLDC Motor Specification
NOTE: When you choose high KV, please make sure your VESC max eRPM is enough for our motor.
VESC Max eRPM= Working Voltage*KV*Poles/2 (Our 6385 motor is 14 poles design)
| 24V | 6385 24V | ||||||||||||
| KV(Rpm / V) | 25 | 35 | 39 | 49 | 58 | 66 | 125 | 138 | 151 | 173 | 205 | 245 | 300 |
| Max. Power (W) | 312 | 456 | 504 | 624 | 744 | 840 | 1872 | 2088 | 2304 | 2640 | 3168 | 3648 | 4368 |
| Rated Power (W) | 218 | 319 | 353 | 437 | 521 | 588 | 1217 | 1357 | 1498 | 1716 | 2059 | 2371 | 2839 |
| Max Torque (N.m) | 5.96 | 6.22 | 6.76 | 7.02 | 6.92 | 6.08 | 5.36 | 5.42 | 5.46 | 5.47 | 5.53 | 5.33 | 5.21 |
| Rated Torque (N.m) | 3.48 | 3.63 | 3.60 | 3.55 | 3.57 | 3.55 | 3.65 | 3.68 | 3.71 | 3.71 | 3.76 | 3.62 | 3.54 |
| Noload RPM (rpm) | 600 | 840 | 936 | 1176 | 1392 | 1584 | 3000 | 3312 | 3624 | 4152 | 4920 | 5880 | 7200 |
| Rated RPM (rpm) | 480 | 672 | 749 | 941 | 1114 | 1267 | 2550 | 2815 | 3080 | 3529 | 4182 | 4998 | 6120 |
| Max. Amps (15 sec) (A) | 13 | 19 | 21 | 26 | 31 | 35 | 78 | 87 | 96 | 110 | 132 | 152 | 182 |
| Continious currents (A) | 9 | 13 | 15 | 18 | 22 | 25 | 51 | 57 | 62 | 72 | 86 | 99 | 118 |
| 36V | 6385 36V | ||||||||||||
| KV(Rpm / V) | 25 | 35 | 39 | 49 | 58 | 66 | 125 | 138 | 151 | 173 | 205 | 245 | 300 |
| Max. Power (W) | 468 | 684 | 756 | 936 | 1116 | 1260 | 2808 | 3132 | 3456 | 3960 | 4752 | 5472 | 6552 |
| Rated Power (W) | 328 | 479 | 529 | 655 | 781 | 882 | 1825 | 2036 | 2246 | 2574 | 3089 | 3557 | 4259 |
| Max Torque (N.m) | 5.96 | 6.22 | 6.76 | 7.02 | 6.92 | 6.08 | 5.36 | 5.42 | 5.46 | 5.47 | 5.53 | 5.33 | 5.21 |
| Rated Torque (N.m) | 3.48 | 3.63 | 3.60 | 3.55 | 3.57 | 3.55 | 3.65 | 3.68 | 3.71 | 3.71 | 3.76 | 3.62 | 3.54 |
| Noload RPM (rpm) | 900 | 1260 | 1404 | 1764 | 2088 | 2376 | 4500 | 4968 | 5436 | 6228 | 7380 | 8820 | 10800 |
| Rated RPM (rpm) | 720 | 1008 | 1123 | 1411 | 1670 | 1901 | 3825 | 4223 | 4621 | 5294 | 6273 | 7497 | 9180 |
| Max. Amps (15 sec) (A) | 13 | 19 | 21 | 26 | 31 | 35 | 78 | 87 | 96 | 110 | 132 | 152 | 182 |
| Continious currents (A) | 9 | 13 | 15 | 18 | 22 | 25 | 51 | 57 | 62 | 72 | 86 | 99 | 118 |
| 48V | 6385 48V | ||||||||||||
| KV(Rpm / V) | 25 | 35 | 39 | 49 | 58 | 66 | 125 | 138 | 151 | 173 | 205 | 245 | 300 |
| Max. Power (W) | 624 | 912 | 1008 | 1248 | 1488 | 1680 | 3744 | 4176 | 4608 | 5280 | 6336 | 7296 | 8736 |
| Rated Power (W) | 437 | 638 | 706 | 874 | 1042 | 1176 | 2434 | 2714 | 2995 | 3432 | 4118 | 4742 | 5678 |
| Max Torque (N.m) | 5.96 | 6.22 | 6.76 | 7.02 | 6.92 | 6.08 | 5.36 | 5.42 | 5.46 | 5.47 | 5.53 | 5.33 | 5.21 |
| Rated Torque (N.m) | 3.48 | 3.63 | 3.60 | 3.55 | 3.57 | 3.55 | 3.65 | 3.68 | 3.71 | 3.71 | 3.76 | 3.62 | 3.54 |
| Noload RPM (rpm) | 1200 | 1680 | 1872 | 2352 | 2784 | 3168 | 6000 | 6624 | 7248 | 8304 | 9840 | 11760 | 14400 |
| Rated RPM (rpm) | 960 | 1344 | 1498 | 1882 | 2227 | 2534 | 5100 | 5630 | 6161 | 7058 | 8364 | 9996 | 12240 |
| Max. Amps (15 sec) (A) | 13 | 19 | 21 | 26 | 31 | 35 | 78 | 87 | 96 | 110 | 132 | 152 | 182 |
| Continious currents (A) | 9 | 13 | 15 | 18 | 22 | 25 | 51 | 57 | 62 | 72 | 86 | 99 | 118 |
| 56V | 6385 56V | ||||||||||||
| KV(Rpm / V) | 25 | 35 | 39 | 49 | 58 | 66 | 125 | 138 | 151 | 173 | 205 | 245 | 300 |
| Max. Power (W) | 728 | 1064 | 1176 | 1456 | 1736 | 1960 | 4368 | 4872 | 5376 | 6160 | 7392 | 8512 | 10192 |
| Rated Power (W) | 510 | 745 | 823 | 1019 | 1215 | 1372 | 2839 | 3167 | 3494 | 4004 | 4805 | 5533 | 6625 |
| Max Torque (N.m) | 5.96 | 6.22 | 6.76 | 7.02 | 6.92 | 6.08 | 5.36 | 5.42 | 5.46 | 5.47 | 5.53 | 5.33 | 5.21 |
| Rated Torque (N.m) | 3.48 | 3.63 | 3.60 | 3.55 | 3.57 | 3.55 | 3.65 | 3.68 | 3.71 | 3.71 | 3.76 | 3.62 | 3.54 |
| Noload RPM (rpm) | 1400 | 1960 | 2184 | 2744 | 3248 | 3696 | 7000 | 7728 | 8456 | 9688 | 11480 | 13720 | 16800 |
| Rated RPM (rpm) | 1120 | 1568 | 1747 | 2195 | 2598 | 2957 | 5950 | 6569 | 7188 | 8235 | 9758 | 11662 | 14280 |
| Max. Amps (15 sec) (A) | 13 | 19 | 21 | 26 | 31 | 35 | 78 | 87 | 96 | 110 | 132 | 152 | 182 |
| Continious currents (A) | 9 | 13 | 15 | 18 | 22 | 25 | 51 | 57 | 62 | 72 | 86 | 99 | 118 |
| 60V | 6385 60V | ||||||||||||
| KV(Rpm / V) | 25 | 35 | 39 | 49 | 58 | 66 | 125 | 138 | 151 | 173 | 205 | 245 | 300 |
| Max. Power (W) | 780 | 1140 | 1260 | 1560 | 1860 | 2100 | 4680 | 5220 | 5760 | 6600 | 7920 | 9120 | 10920 |
| Rated Power (W) | 546 | 798 | 882 | 1092 | 1302 | 1470 | 3042 | 3393 | 3744 | 4290 | 5148 | 5928 | 7098 |
| Max Torque (N.m) | 5.96 | 6.22 | 6.76 | 7.02 | 6.92 | 6.08 | 5.36 | 5.42 | 5.46 | 5.47 | 5.53 | 5.33 | 5.21 |
| Rated Torque (N.m) | 3.48 | 3.63 | 3.60 | 3.55 | 3.57 | 3.55 | 3.65 | 3.68 | 3.71 | 3.71 | 3.76 | 3.62 | 3.54 |
| Noload RPM (rpm) | 1500 | 2100 | 2340 | 2940 | 3480 | 3960 | 7500 | 8280 | 9060 | 10380 | 12300 | 14700 | 18000 |
| Rated RPM (rpm) | 1200 | 1680 | 1872 | 2352 | 2784 | 3168 | 6375 | 7038 | 7701 | 8823 | 10455 | 12495 | 15300 |
| Max. Amps (15 sec) (A) | 13 | 19 | 21 | 26 | 31 | 35 | 78 | 87 | 96 | 110 | 132 | 152 | 182 |
| Continious currents (A) | 9 | 13 | 15 | 18 | 22 | 25 | 51 | 57 | 62 | 72 | 86 | 99 | 118 |
| 72V | 6385 72V | ||||||||||||
| KV(Rpm / V) | 25 | 35 | 39 | 49 | 58 | 66 | 125 | 138 | 151 | 173 | 205 | 245 | 300 |
| Max. Power (W) | 936 | 1368 | 1512 | 1872 | 2232 | 2520 | 5616 | 6264 | 6912 | 7920 | 9504 | 10944 | 13104 |
| Rated Power (W) | 655 | 958 | 1058 | 1310 | 1562 | 1764 | 3650 | 4072 | 4493 | 5148 | 6178 | 7114 | 8518 |
| Max Torque (N.m) | 5.96 | 6.22 | 6.76 | 7.02 | 6.92 | 6.08 | 5.36 | 5.42 | 5.46 | 5.47 | 5.53 | 5.33 | 5.21 |
| Rated Torque (N.m) | 3.48 | 3.63 | 3.60 | 3.55 | 3.57 | 3.55 | 3.65 | 3.68 | 3.71 | 3.71 | 3.76 | 3.62 | 3.54 |
| Noload RPM (rpm) | 1800 | 2520 | 2808 | 3528 | 4176 | 4752 | 9000 | 9936 | 10872 | 12456 | 14760 | 17640 | 21600 |
| Rated RPM (rpm) | 1440 | 2016 | 2246 | 2822 | 3341 | 3802 | 7650 | 8446 | 9241 | 10588 | 12546 | 14994 | 18360 |
| Max. Amps (15 sec) (A) | 13 | 19 | 21 | 26 | 31 | 35 | 78 | 87 | 96 | 110 | 132 | 152 | 182 |
| Continious currents (A) | 9 | 13 | 15 | 18 | 22 | 25 | 51 | 57 | 62 | 72 | 86 | 99 | 118 |
