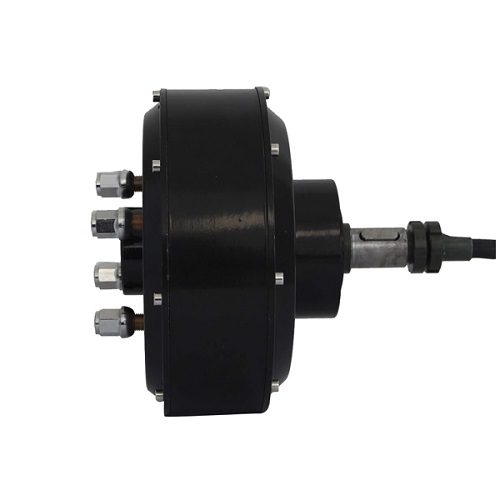

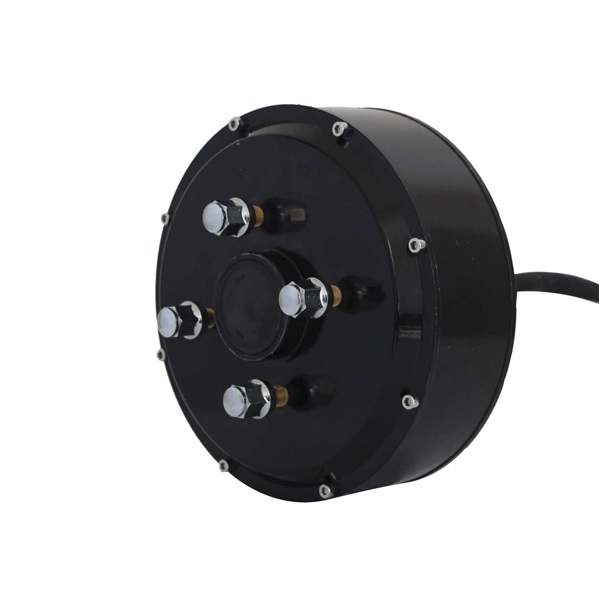

205 Single Shaft Car Hub Motor specially designed for Electric tricycle or 4-wheel electric vehicles, the rated power can be made 1500W,2000W OR 3000W for options.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Single axle out without rim
3. PCD for rim installation: 4 x100mm
4. CB:60MM
5. Magnet:45H
6. of Pole Pairs: 23 pairs(46pcs straignt magnets)
7. Rated Power: 1500W
8. Max Power: 2000W
9. Rated Voltage: 48V( 60V/72V Can be optional)
10. Speed: 45km/h (30-55km/h can be customized)
11. Max No-load RPM: 700RPM
12. Max Torque: 110N.M
13. Max Efficiency: 89%
14. Continious current:39A
15. Max current:55A
16. Brake type: Disc brake
17. Winding Frame material: Aluminium
18. Cross Section of Phase wire: 8 mm2
19. Hall sensor phasing angle: 120 degree
20. Temperature Sensor: Optional
21. Working Temperature: 70 degree, Peak 120 degree
22. Waterproof Grade: IP66
23. Color: Black
24. W./ G..W. : 15kgs / 16kgs
25. Package Size: 34*34*33CM
