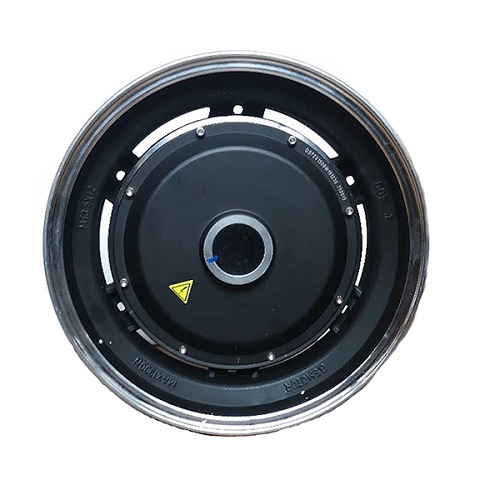

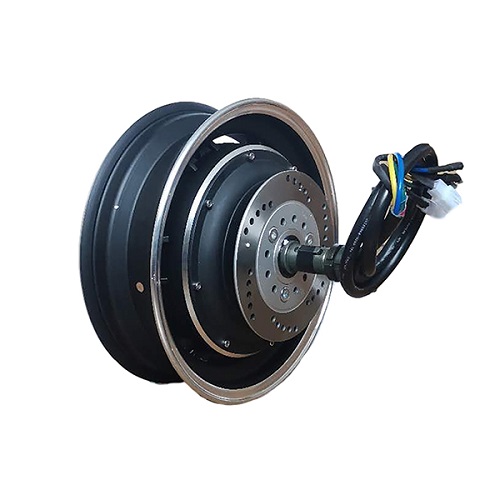

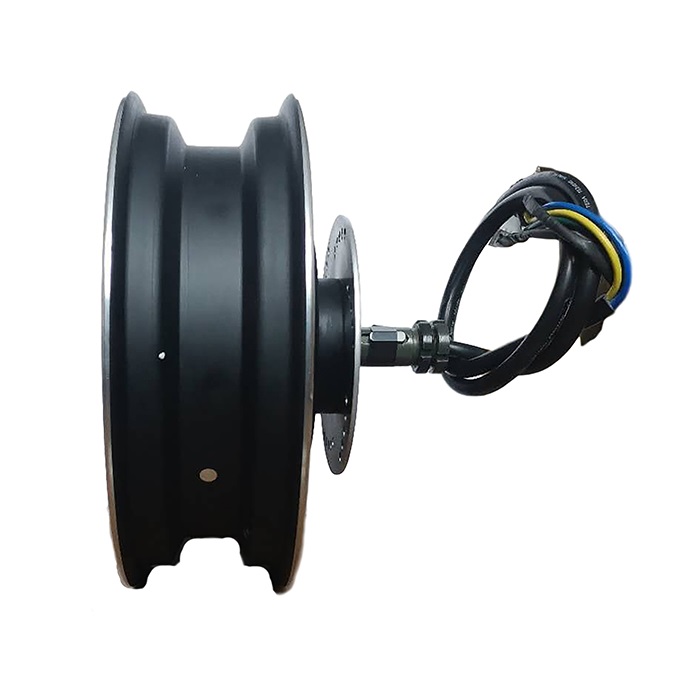

QS205 2000W 12inch Single shaft Out E-Car Hub Motor (50H) V2 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Single axle out with 12inch Aluminium rim
3. Rim size:3.5×12
4. Matching Tire: 130/70-12
5. Magnet Height: 50MM
6. Pole Pairs: 23 paris
7. Rated Power: 2000W
8. Peak Power: 4000W
9. Rated Voltage: 72V( 48-96V Can be optional)
10. Speed: 65km/h (30-70km/h can be customized)
11. Max No-load RPM: 850RPM
12. Max Torque: 140N.M
13. Max Efficiency: 88%
14. Continious current:30A
15. Max current:80A (Peak 100A in short time)
16. Brake type: Disc brake
17. Cross Section of Phase wire: 8 mm2
18. Hall sensor phasing angle: 120 degree
19. Temperature Sensor: Optional
20. Working Temperature: 70 degree, Peak 120 degree
21. Waterproof Grade: IP54
22. Color: Black
23. W./ G..W. : 15kgs / 16kgs
24. Package Size: 44*43*34CM
