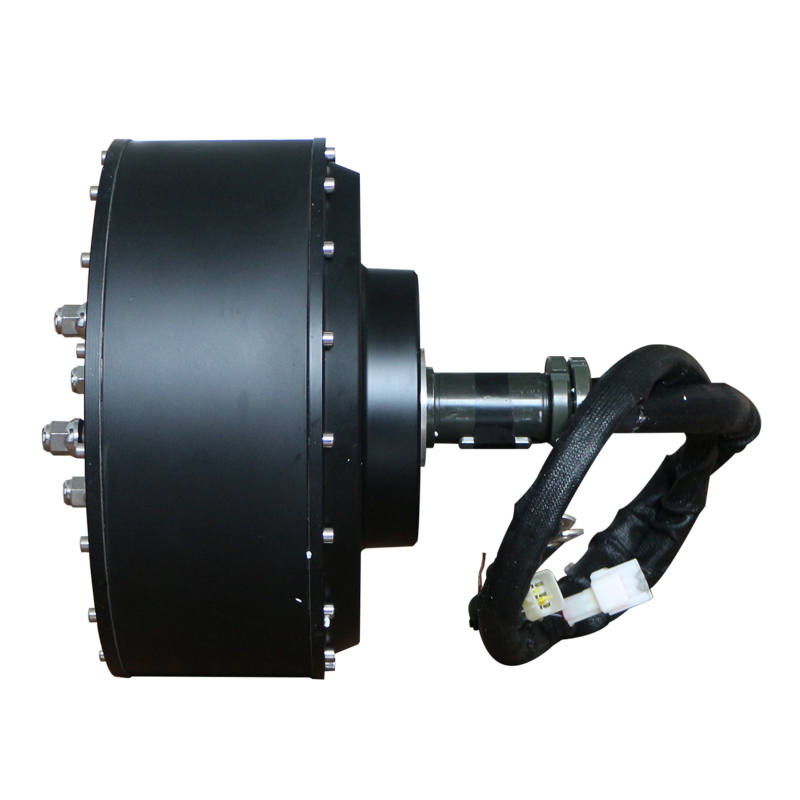

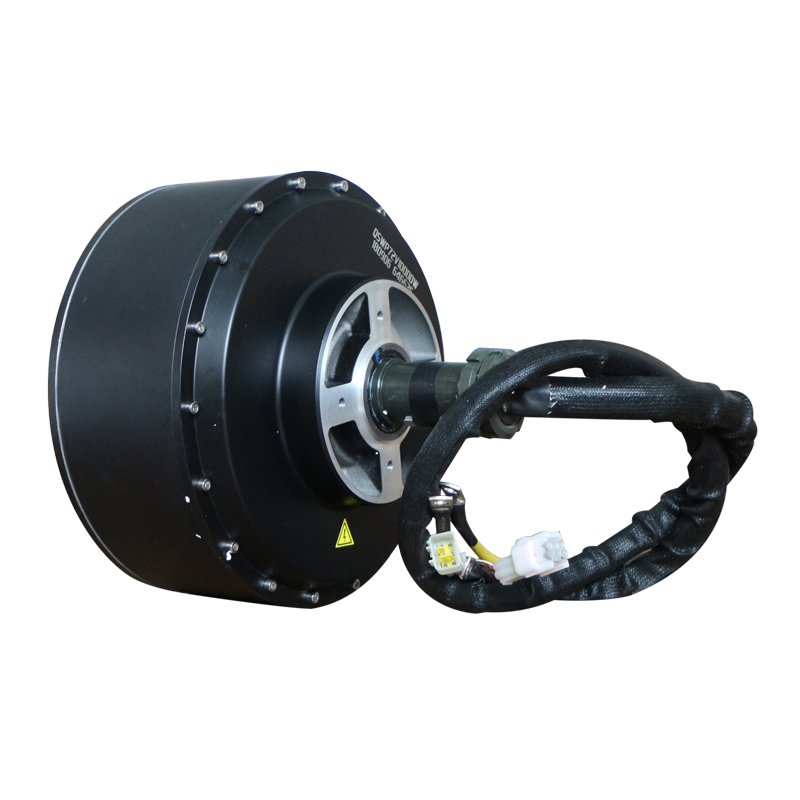

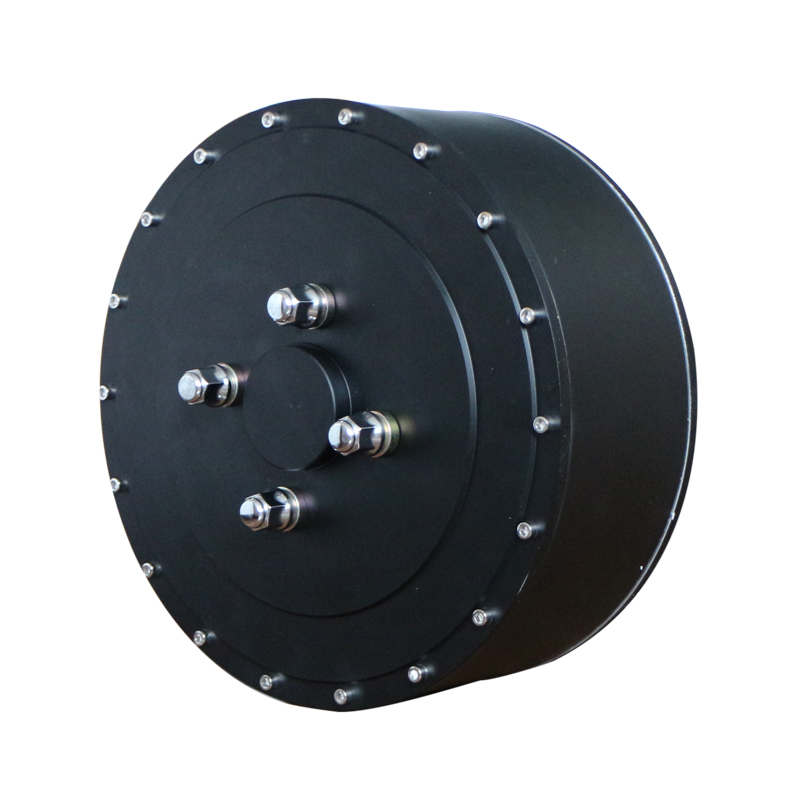

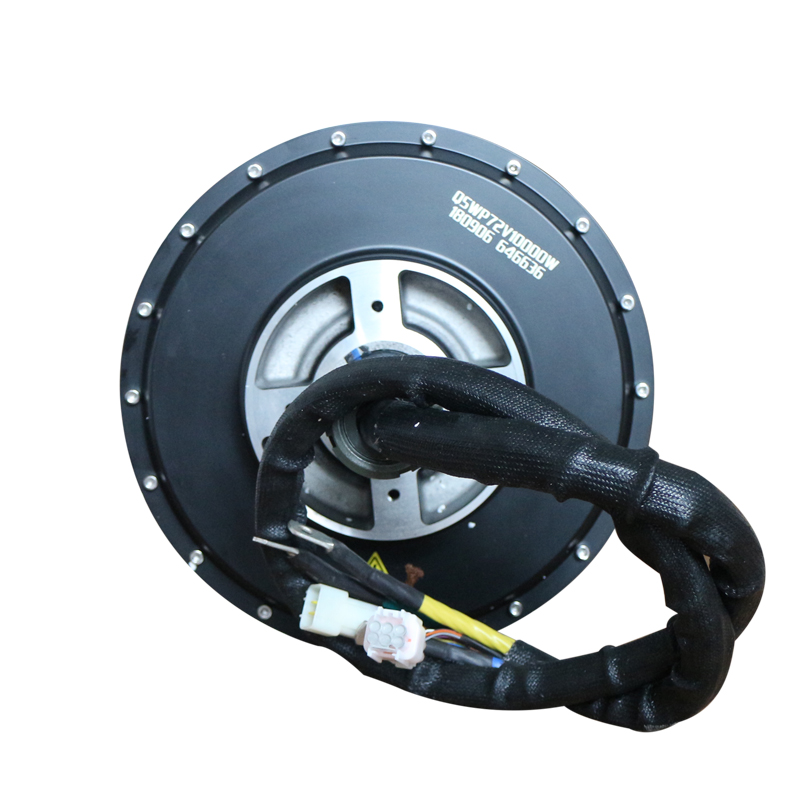

273 Single Shaft Car Hub Motor specially designed for Electric Car or 4-wheel electric vehicles, the rated power can be made 4000W,5000W,6000W OR 8000W for options.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Single axle out without rim
3. PCD for rim installation: 4 x100mm, 5×114.3
4. CB:60MM/70MM
5. Magnet Height:40MM
6. of Pole Pairs: 28 pairs
7. Rated Power: 4000W V2
8. Peak Power: 8000W
9. Rated Voltage: 72V( 60V-144V Can be optional)
10. Speed: 80km/h (30-80km/h can be customized)
11. Max No-load RPM: 1000RPM
12. Max Torque: 180N.M
13. Max Efficiency: 88%
14. Continious current:63A
15. Max current:110A (Peak 170A in short time)
16. Brake type: Disc brake
17. Winding Core material: Aluminium
18. Cross Section of Phase wire: 16 mm2
19. Hall sensor phasing angle: 120 degree
20. Temperature Sensor: Optional
21. Working Temperature: 70 degree, Peak 120 degree
22. Waterproof Grade: IP54
23. Color: Black
24. W./ G..W. : 25kgs /26kgs
25. Package Size: 44*43*34CM
