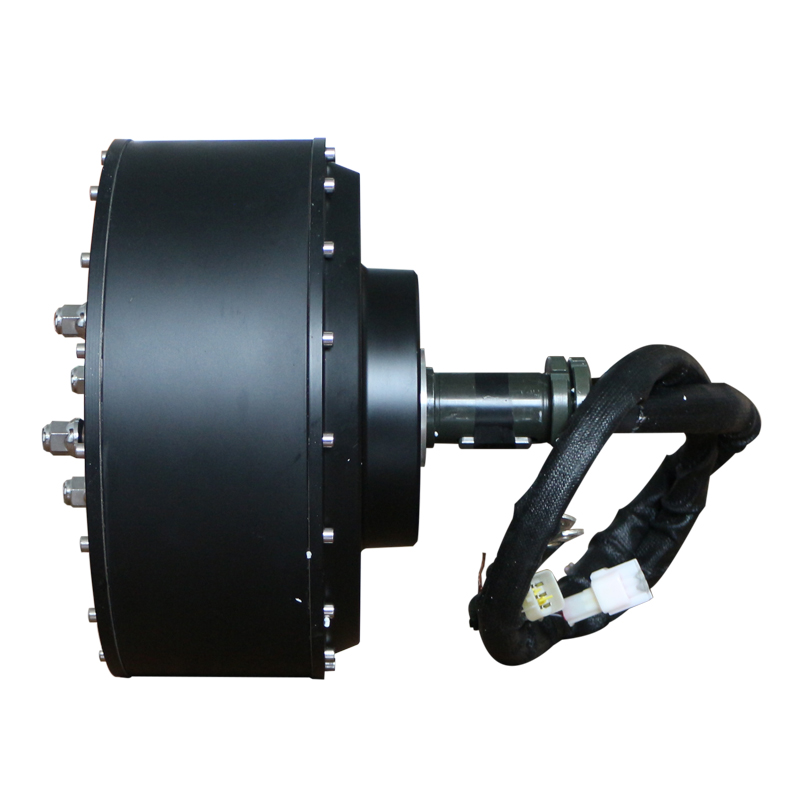

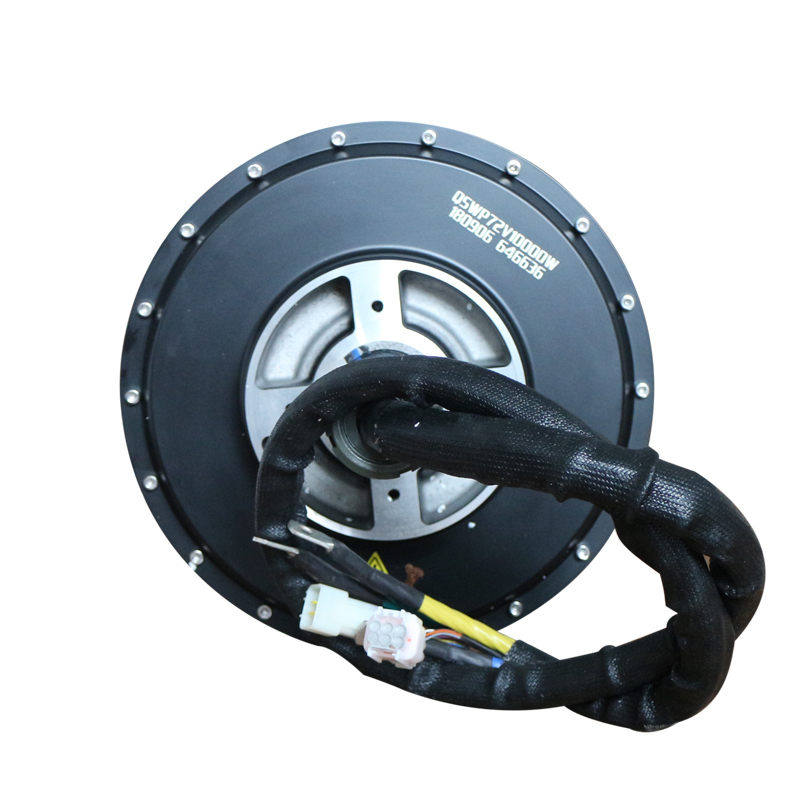

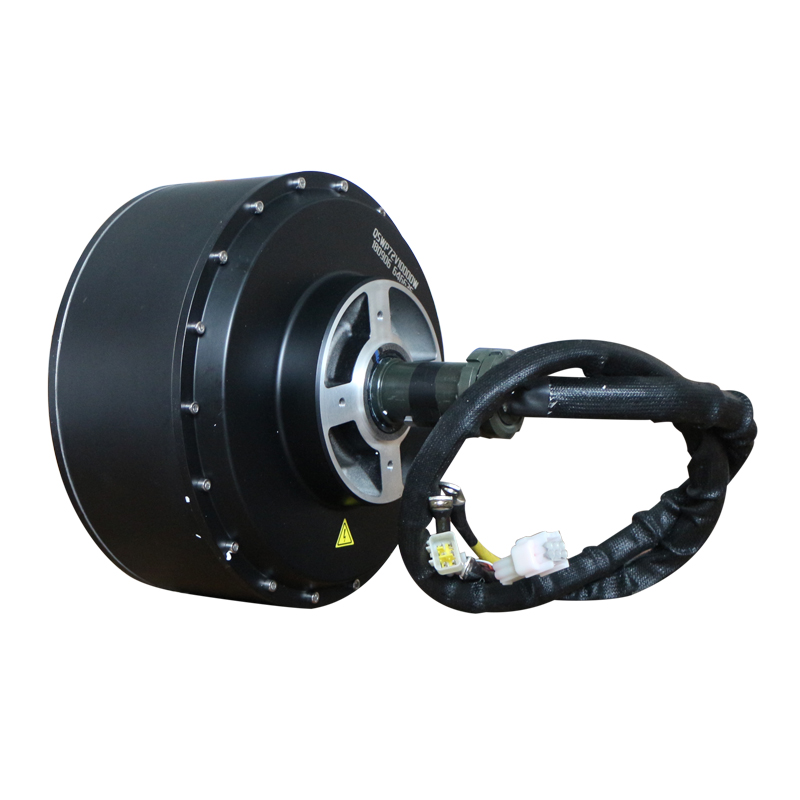

QSMOTOR 273 12KW E-CAR Hub Motor

• Motor Design: BLDC In-Wheel Hub Motor
• Matched Wheel:  ≥14inch Car Wheel, (PCD4*100mm, CB60mm as default)
• Magnet Height: 70mm, 16 pole pairs
• Rated Power: 12000W
• Rated Voltage: 96V
• Max. Speed: 100-120kph
• No-Load RPM: 1000RPM(Can be customized)
• Max Torque: more than 350N.m
• Max Efficiency: 86-91%
• Peak Battery Current: 250A (96V)
• Suggest Peak Phase Current: 530-700A
• Thermic Probe: KTY83/122
• Brake type: Disc brake, PCD4x114.3mm-M12, CB 67mm(as default)
• Dual Hall Set with waterproof connectors
• Cross section of the phase cable: 25mm2
• Hall Sensor Phasing angle: 120 degree
• Waterproof Grade: IP66
• N.W./G.W.: 32kg/34
