KHS – High Voltage Opto-Isolated Sinusoidal Motor Controllers (320V-360V) (200A-400A)

Category Sinusoidal&Trapezoidal BLDC/PMSM Controller

High voltage controller using IGBTs,minimum overshoot, nice waveform.
Superior heat dissipation, IP66 rated waterproof controller by default.
Built-in Supervising micro.

9-32V must be provided for logic supply, best isolated from main battery for protection.
Users may use an isolated DC/DC converter or a (12V or 24V) separate  battery for power supply.

Model with Hall Sensor	Model with Sin/Cos Sensor	Model with ABZ Encoder	Nominal Voltage	Maximum Operating Voltage	Peak Current 2 Minute	Continuous Current
KHS32020I	KHS32020IPS	KHS32020IA	24-320V	18V-380V	200A	80A
KHS32030N	KHS32030NPS	KHS32030NA	24-320V	18V-380V	300A	150A
KHS32035N	KHS32035NPS	KHS32035NA	24-320V	18V-380V	350A	175A
KHS32040N	KHS32040NPS	KHS32040NA	24-320V	18V-380V	400A	200A
KHS36020I	KHS36020IPS	KHS36020IA	24-360V	18V-450V	200A	80A
KHS36025N	KHS36025NPS	KHS36025NA	24-360V	18V-450V	250A	125A
KHS36030N	KHS36030NPS	KHS36030NA	24-360V	18V-450V	300A	150A
KHS36035N	KHS36035NPS	KHS36035NA	24-360V	18V-450V	350A	175A

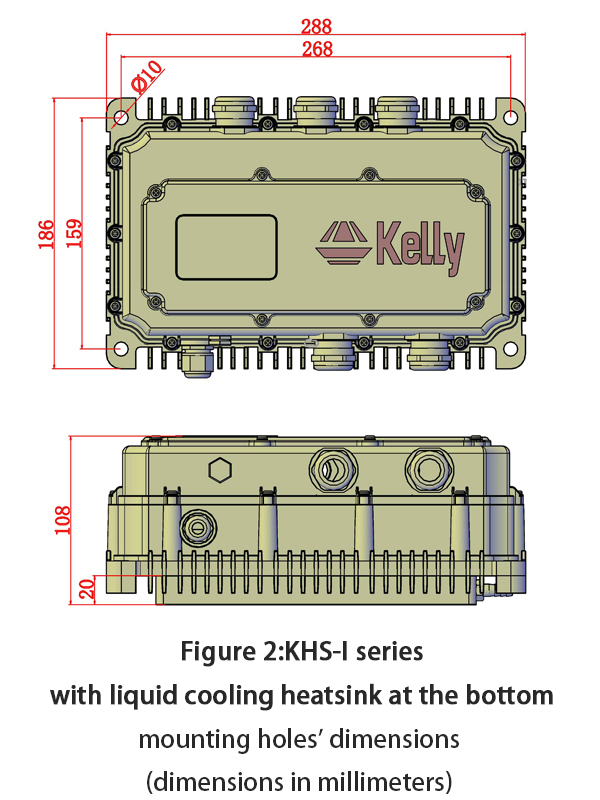

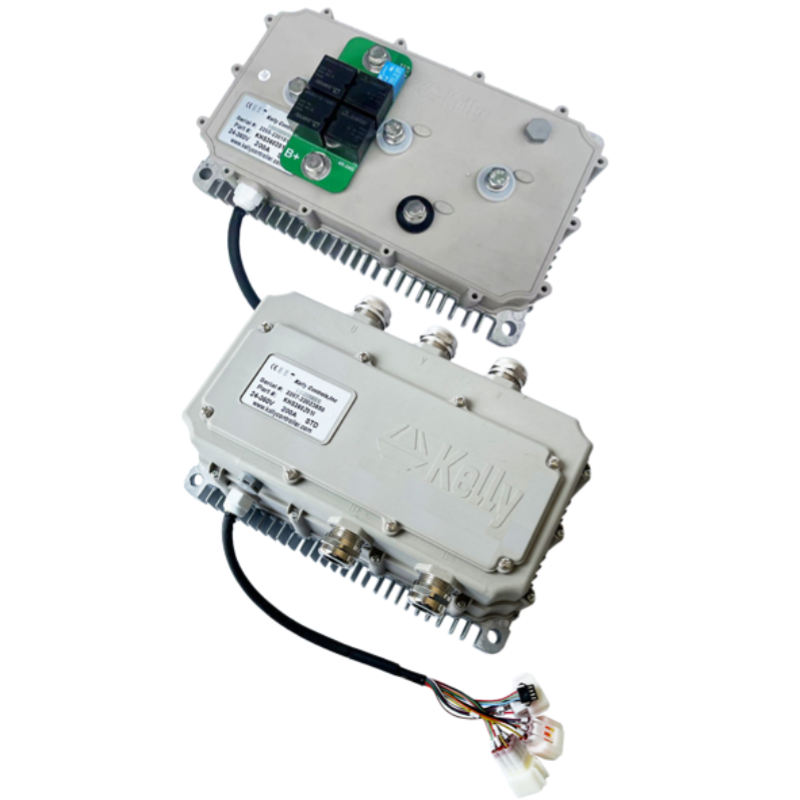

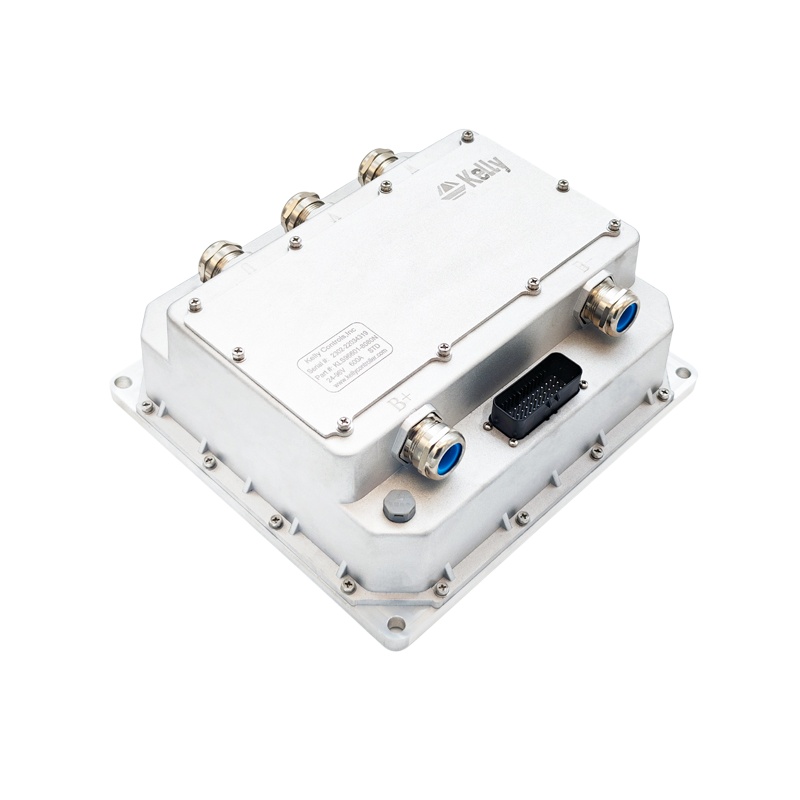

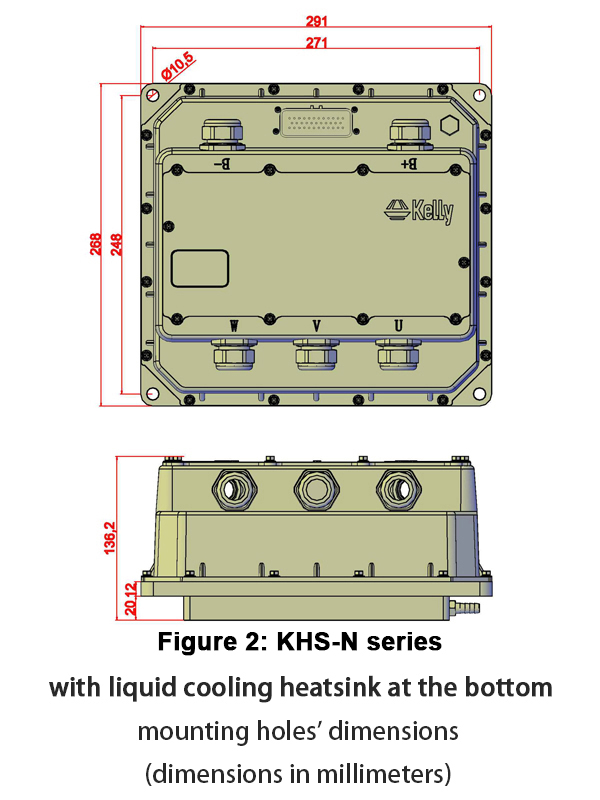

Kelly KHS - High Voltage Opto-Isolated Sinusoidal Wave Brushless DC Motor Controller

General functions

External LED error codes indicator. Customers can read the error code in PC software or Android Tablet also.
Monitoring battery voltage. It will stop driving if the battery voltage is too high and it will progressively cut back motor drive power as battery voltage drops until it cuts out altogether at the preset “Low Battery Voltage” setting.
Built-in current loop and over current protection.
Configurable motor temperature protection range.
Current cutback at low temperature and high temperature to protect battery and controller. The current begins to ramp down at 90℃ case temperature, shutting down at 110℃.
The controller keeps monitoring and battery recharging voltage during regen braking.
Maximum reverse speed and forward speed can be configured between 20% and 100% respectively and separately.
A 4pin connector to RS232 port and a Z-TEK USB to RS232 cable allows for configuration, programming and software upgrades using the tablet which must be based on Android OS now. People can do the same things on PC software by using a standard USB to RS232 cable instead.
Provision of a +5 volt and +12 volt output to supply various kinds of hall sensors.
5 switch inputs which are activated by connection to 12V. Default to throttle switch, brake switch, reversing switch, forward switch and Boost switch.
3 analog 0-5V inputs that default to throttle input, Brake analog input and motor temperature input
Copy signal of one of sensors.
Configurable boost switch. Enables the maximum output power achievable if the switch is turned on. The effect is the same as full throttle position even if you don’t turn throttle at all.
12V brake switch input used different port from motor temperature sensor. You can use both brake switch and motor temperature sensor functions at the same time on the latest version. Pin 25 is 12V brake switch input port.Pin1 is motor temperature sensor input port.
Configurable motor over-temperature detection and protection with the recommended thermistor KTY84-130/150 or KTY83-122.
3 hall position sensor inputs. Open collector, pull up provided. Sin/Cosin Speed sensors inputs. Can not support Resolver sensor type.
Brake analog regen mode. This regen mode doesn’t need brake switch to support any more.
Enhanced regen brake function. A novel ABS technique provides powerful and smooth regen. The regen can happen at any speeds until zero speed.
Cruise control. Only can be activated in forward direction.
KHS-N/NPS can support Broadcast type CAN bus function. It is 250Kbps.By default, KHS-N/NPS controller includes CAN bus function.
Bluetooth function. Required a small Bluetooth converter which needs to be purchased in addition from our website. This small converter is only useful for KHS controller.
Can support three speed function on the latest version.
Specifications
Frequency of Operation: 10-20KHz(by default 10KHz).
Standby Battery Current: < 0.5mA.
5V or 12V Sensor Supply Current: total 40mA.
Controller logic supply voltage，Logic PWR: 18-30V.
Configurable battery voltage range, B+. Max operating range: 180V-450V.
Standard Throttle Input: 0-5 Volts(3-wire resistive pot), 1-4 Volts(hall active throttle).
Throttle Input: 0-5 Volts. Can use 3-wire pot to produce 0-5V signal.
Full Power Operating Temperature Range: 0℃ to 70℃(MOSFET temperature).
Operating Temperature Range: -40℃to 110℃ (MOSFET temperature).
Max Battery Current : Configurable.
