DSC45MG

Category: 9i mod
Potentiometer: Mechanics
Motor:Coreless MOTOR
Voltage Range:  6.0V-8.4V
Neutral Point:1500μs
Signal Frequency:330Hz

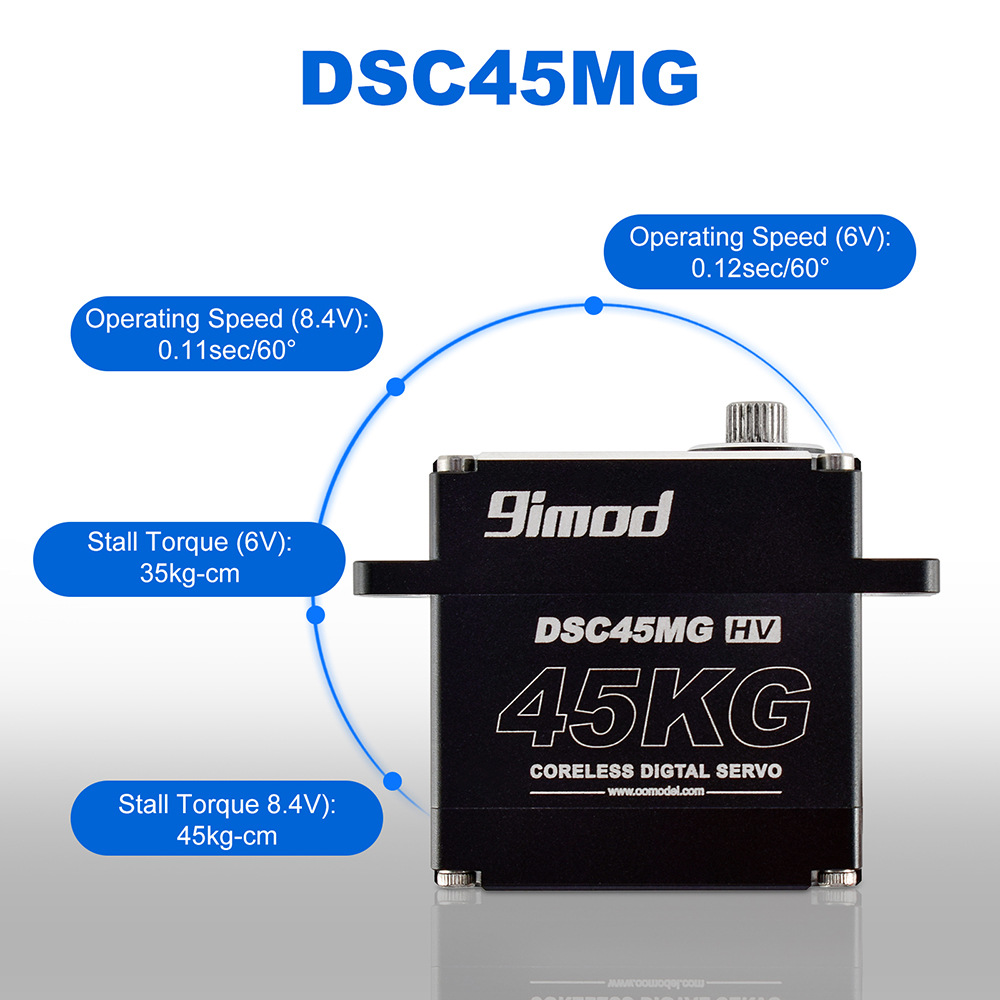

Operating Speed:   0.12sec/60 degree at 6.0V
Operating Speed:   0.09sec/60 degree at 8.4V
Running Current:3500mA@6.0v
Stall Torque:  35kg.cm@8.4v

PRODUCT DETAIL

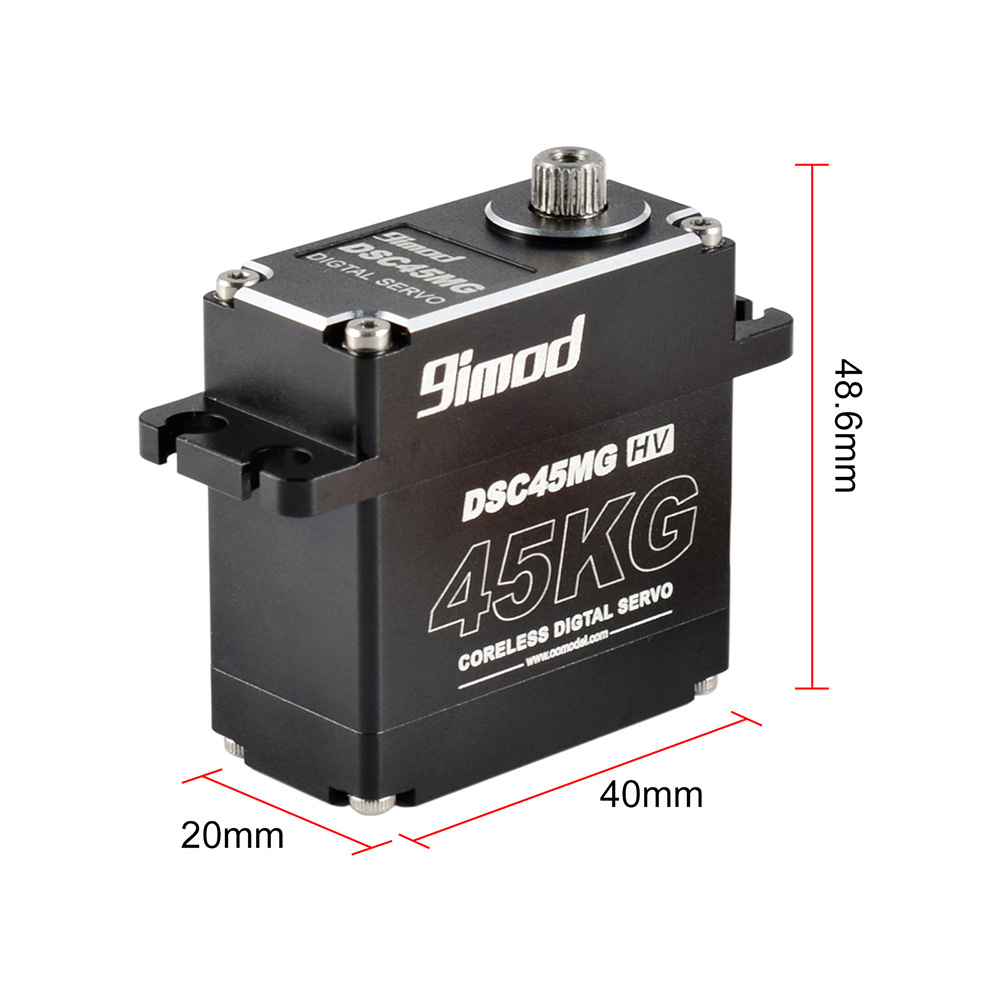

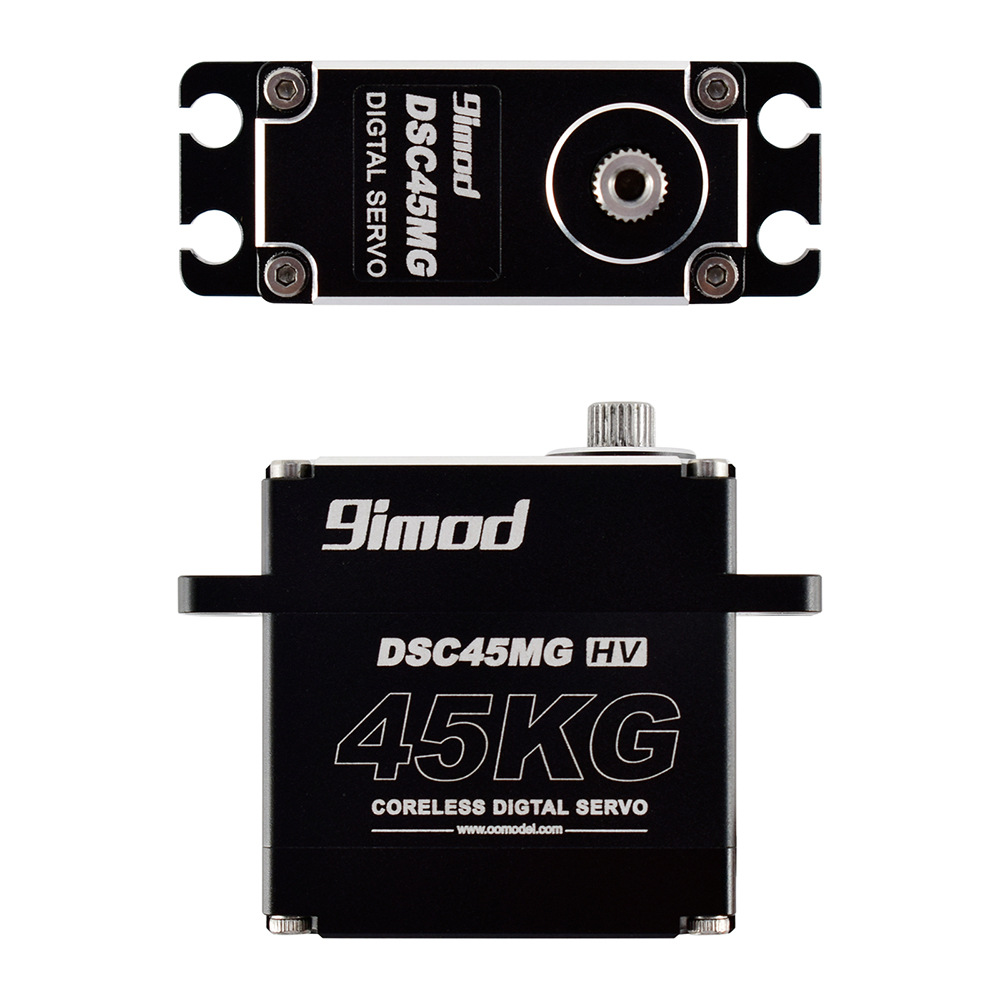

9imod DSC45MG Servo
DSC45MG 45KG Coreless Digital Servo

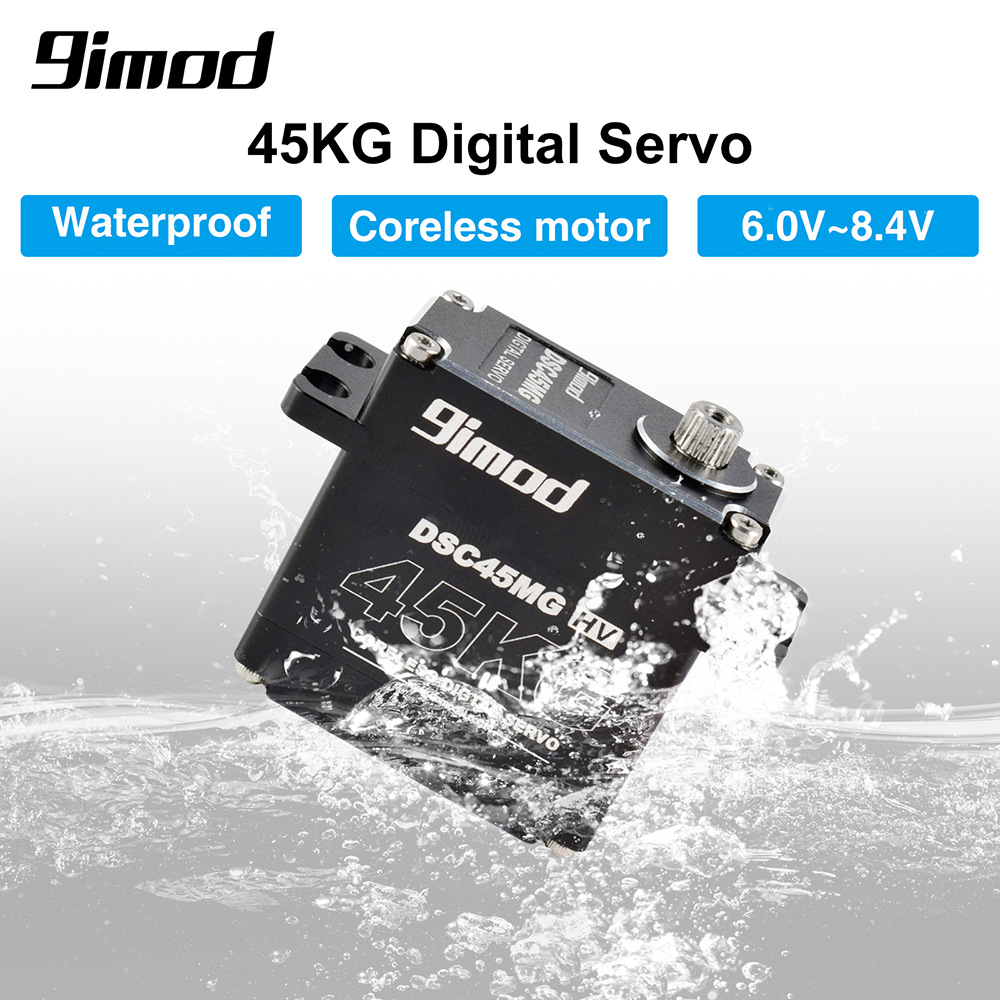

9imod DSC45MG HV Waterproof Servo
45kg.cm High Torque Metal Gear Servo DSC45MG
DSC45MG 25T Aluminum Case RC Servo

Motor type：coreless servo, coreless motor servo
Torque：45kg servo, 45kg.cm high torque servo, high torque rc servo
Voltage：HV servo, high voltage servo, 6V-8.4V servo
Gear & housing：metal gear servo, all metal gear servo, aluminum case servo, dual bearing servo
Protection：waterproof servo, water resistant servo
Signal type：digital servo, rc digital servo
Angle：180 degree servo, 270 degree servo, 180°/270° rotatable servo
Spline：25T servo, 25 tooth servo, 25T servo horn

Application:

RC Car：RC crawler servo, 1/8 rc car servo, 1/10 rc truck servo, TRX4 servo, SCX10 servo, rc steering servo
RC Boat: rc boat servo, waterproof rc boat servo
Robot & DIY: robot arm servo, robotic servo, arduino servo, diy robot servo, educational robot servo, AGV servo, robot claw servo
RC Model: rc model servo, rc hobby servo, remote control servo
