RTS5095
- PRODUCT DETAIL

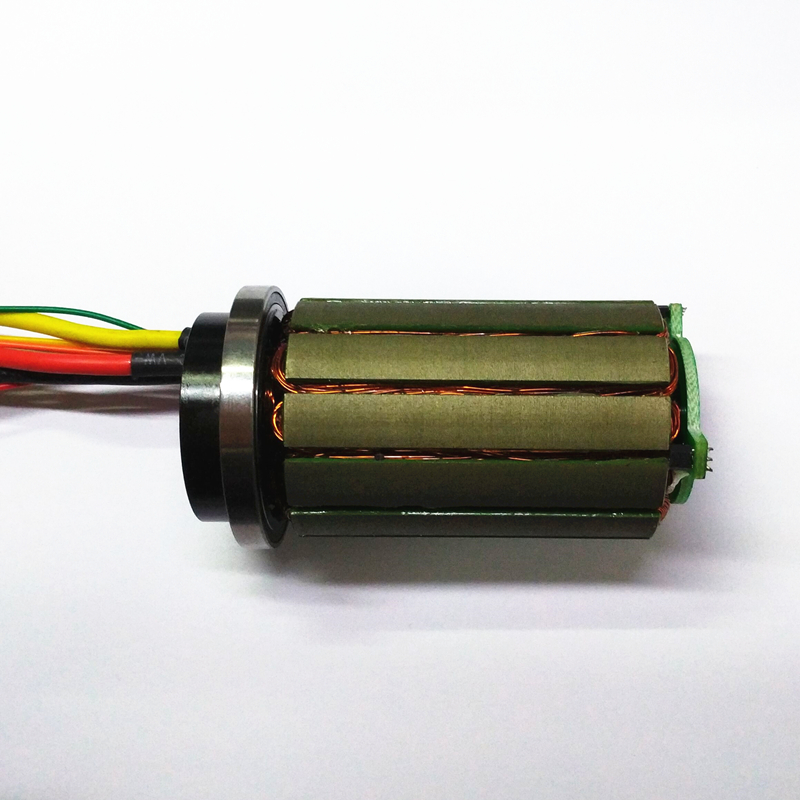

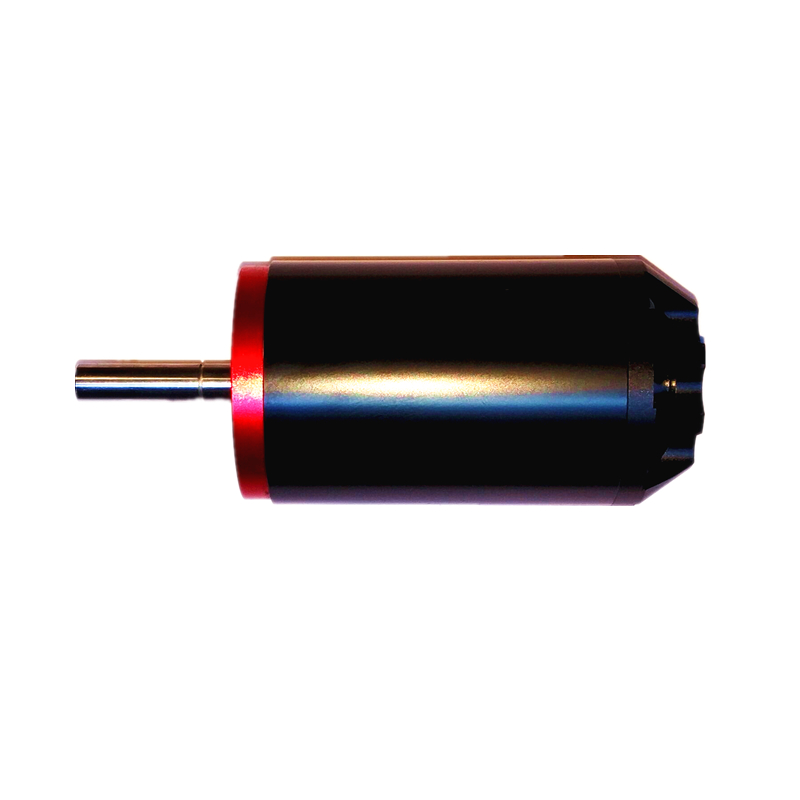

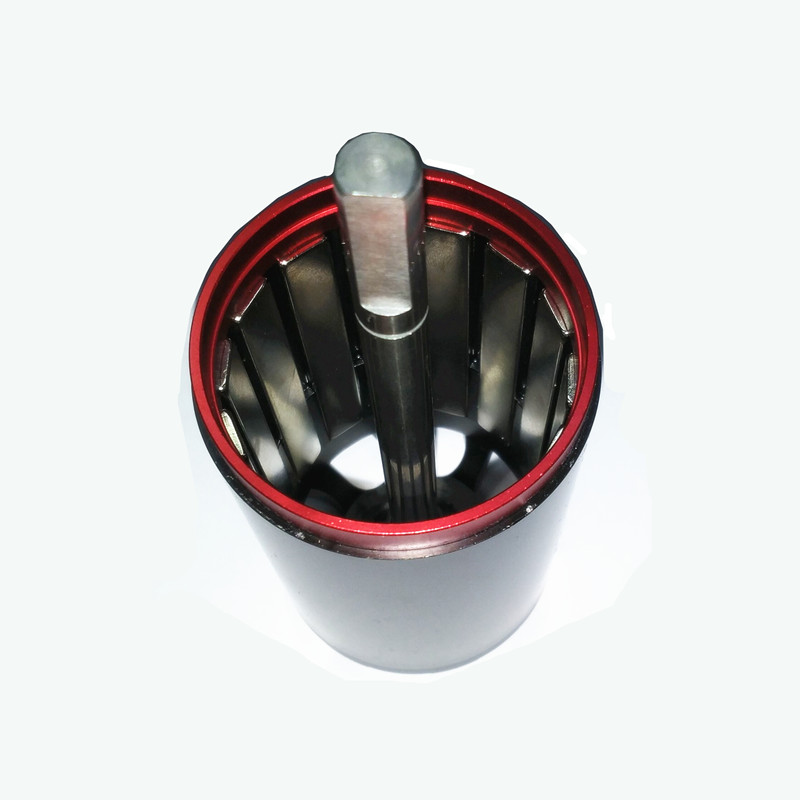

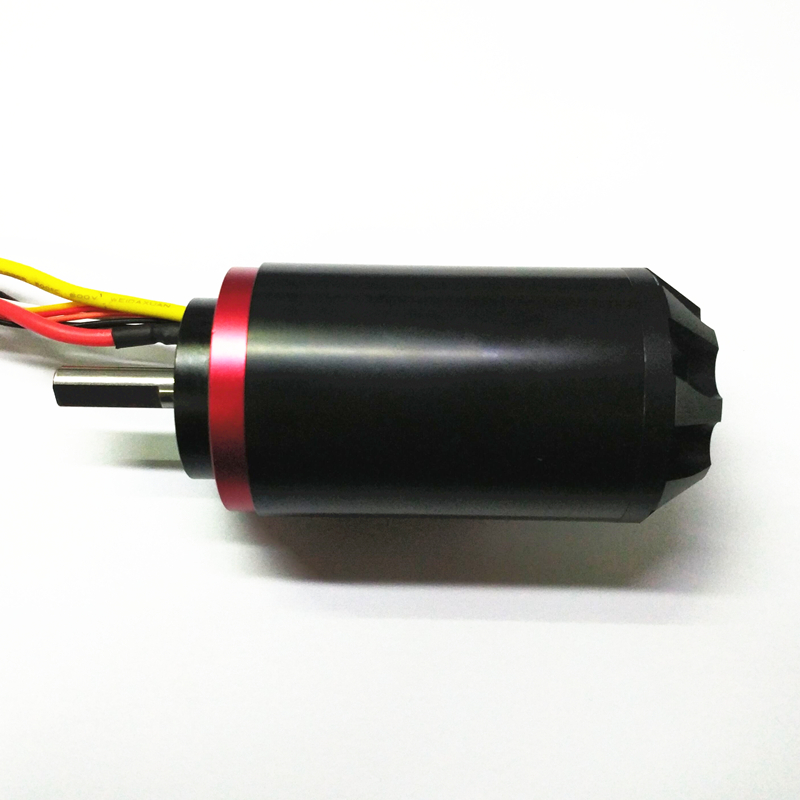

2400w dc brushless vacuum cleaner motor RTS5095
| Model No | RTS5095 |
| KV(RPM/V) | 190KV |
| No Load Current at 7.2V (A) | 1.5A+/-0.5 |
| Working Voltage Range (V) | 36-48V (Here data sheet tested for 37.8V) |
| Max Power (W) | 2400 |
| Peak Current (A) | 65A |
| Max Efficiency (%) | 90% |
| Working Temperature Range (C/F) | 135℃ |
| Motor Diameter*Length (mm) | D50*L95 |
| Weight (g) | 720g |
| Connector Type | 4mm golden plug |
| Wire Length (mm) | 270mm |
| Hall Sensor Wire Length (mm) | 440mm |
| Hall Sensor Connector | JST 6pins |
| Output Shaft (mm) | D8mm*L25mm |
