Based on the VESC project, Reacher brings you a compact, powerful, robust motor controller. The Reacher Tech RT75100 Solo is a DRVless design.
4-18s li-ion safe operating voltage (16-75.6v)
80 AMP Battery current
140 AMP Motor current
6kw peak operating wattage

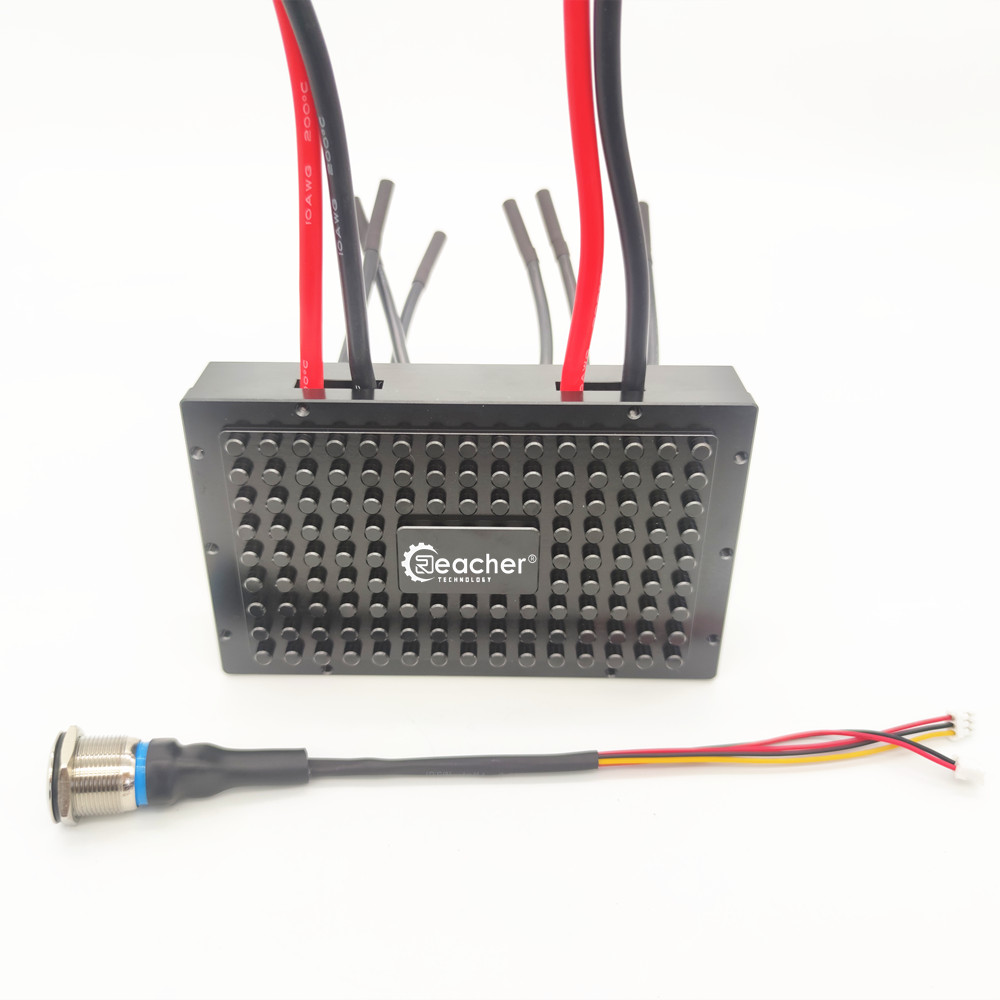

For best results controller needs to be mounted to a heat sink exposed to airflow
Built in Bluetooth
On/off feature with any latching switch.

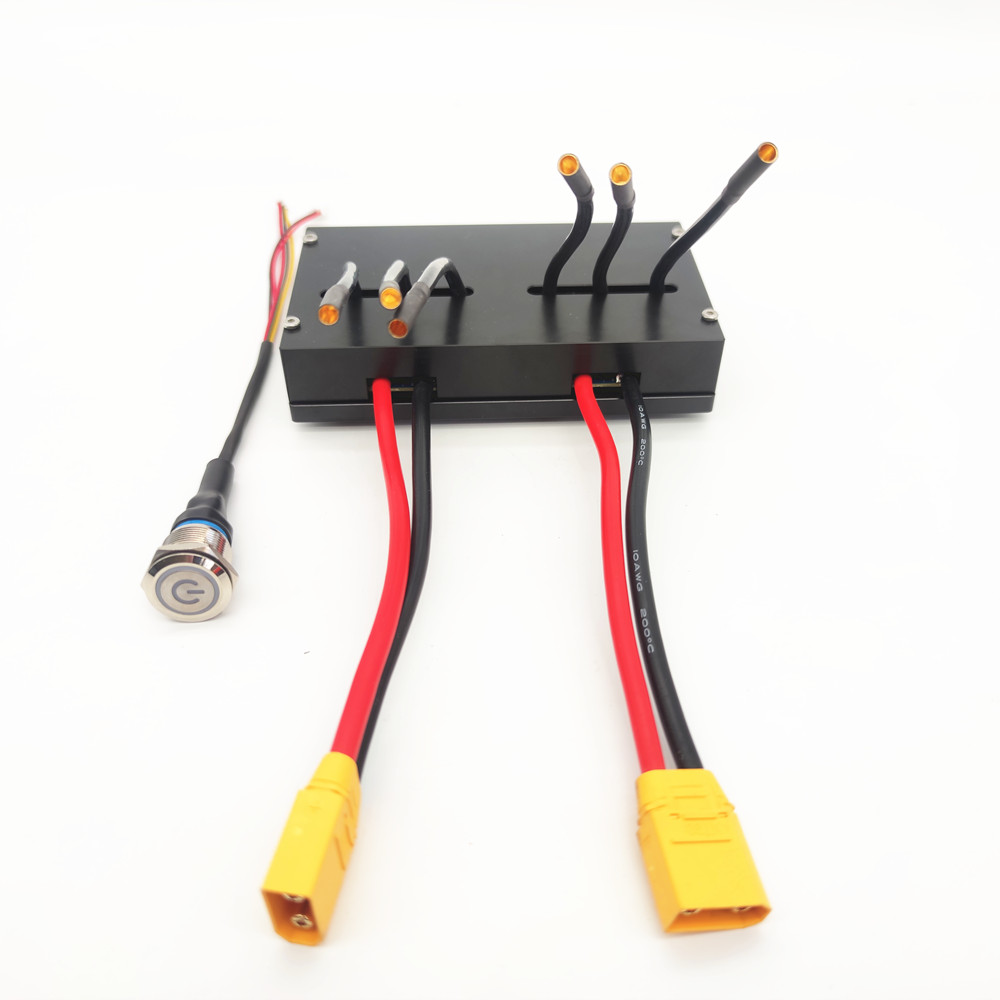

10AWG supply cable and xt90 male connector
12awg phase cable and 4mm female bullet connectors

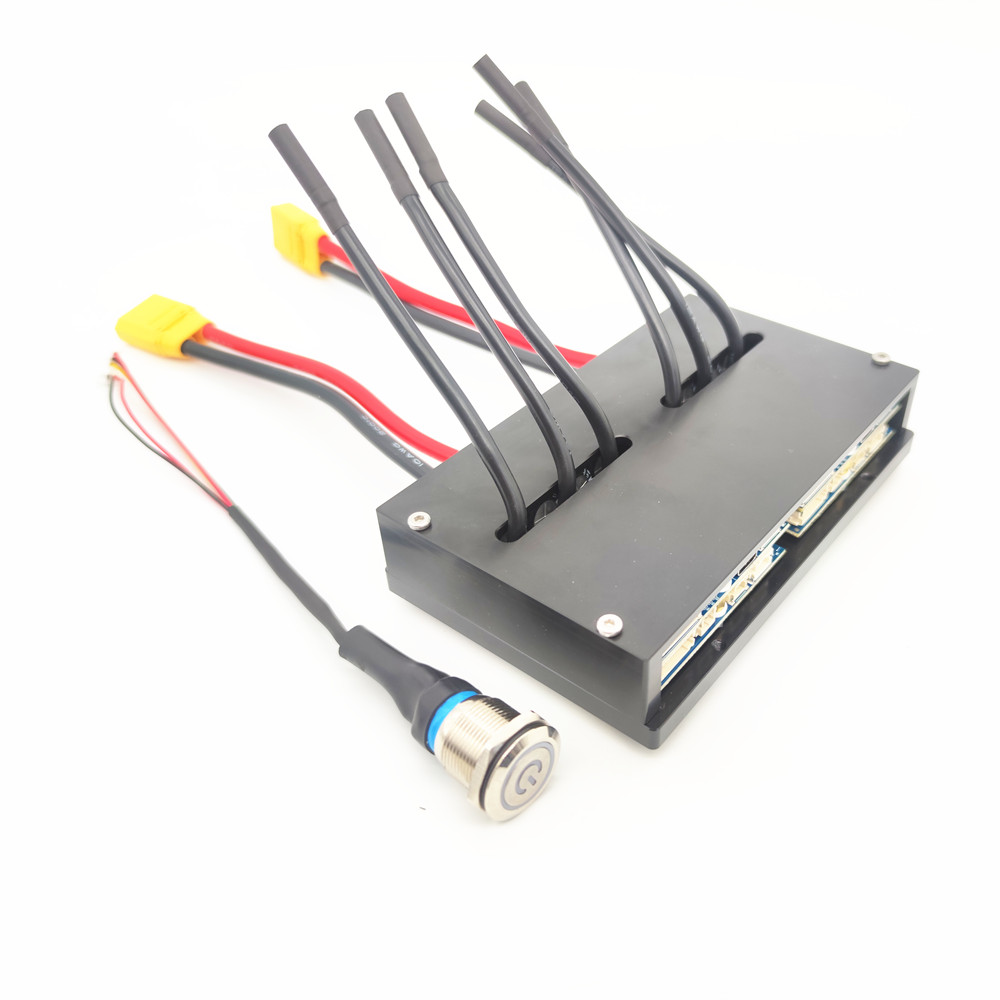

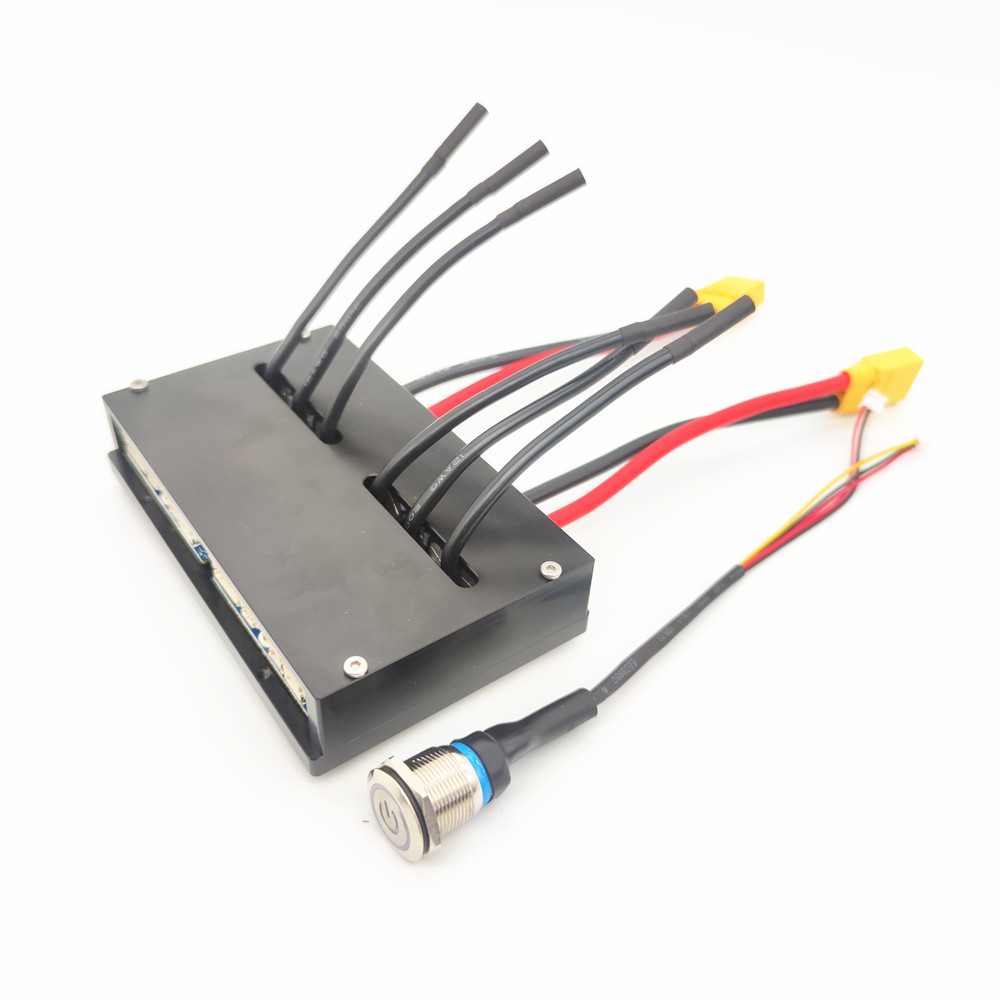

What you get:
2 - Reacher solo ESC
1 - Reacher dual mount heatsink and housing
1 - canbus cable
1 - Reacher switch wired to turn on/off both Solo controllers
1 - Reacher dual mount heatsink for top mount box and housing
Going into this project in the middle of a silicon shortage was pretty ambitious, one of our design considerations was to make this Motor controller manufacturable under current and possibly worsening silicon conditions. We firmly believe the Reacher Solo ESC has achieved that. We sourced components that are well stocked and are likely to remain well stocked, the controller is also designed in a way that allows for easy modification should any of the current components go out of stock and others need to be used instead.
A huge consideration was power. After spending thousands of hours and thousands of miles riding a variety of motor controllers that are available to the market it became very evident that there was a need for a motor controller that can offer a bit more power to push our already incredibly powerful PEVs to the next level.
Size and cost are a major consideration as well. Although you will find that the heat sink for the Reacher solo makes the controller a bit taller than some of the controllers out there right now, it is still very compact and will fit most existing electric s
