68113 motor

Product Item: RT68113-520KV
Category: 60mm
Construction:12N/4P
Winding Turns:3T-Y
Working Voltage:22-55V
Max RPM:30000
RPM/V:520
Rated Torque: 1.5 Nm
Rated Current (A):80
Max Efficiency:>90%
Dimension(mm): D68*L113

  • PRODUCT DETAIL

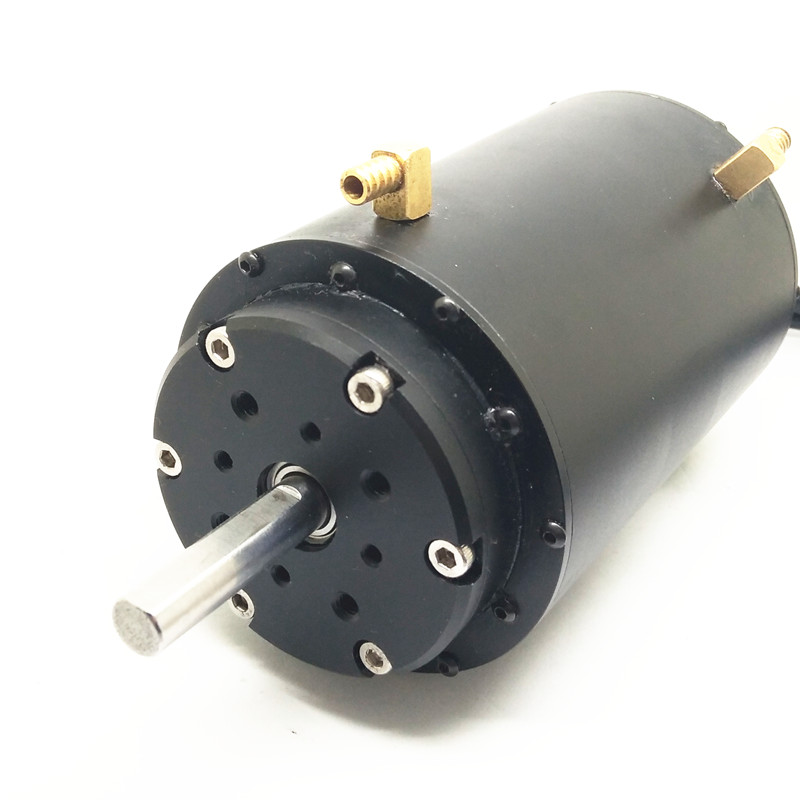

IP 57 Max 7.5kw 2.5Nm jet water-cooling motor with water jacket  RT68113


RT Motor 68113-520KV
Motor type Inner rotor
Construction 12N/4P
Winding Turns 3T-Y
Working Voltage 22-55V
Max RPM 30000
RPM/V 520
No Load Current  3.5A
@10V
Rated Torque 1.5N*M
Rated Current (A) 80
Max Efficiency >90%
Dimension(mm) D68*L113
Shaft Dimension D8*25mm+
M3*25+M4*30
Sensored or Sensorless Sensorless
Max Power(10S) 7.5KW
Max Torque(N*M) 2.5N*M
Max Current (A) 160
Net Weight (kg) 1.5
Cooling device water
Protection IP57
