53113 motor

Product Item: RT53113-270KV
Category: 50mm
Construction:12N/4P
Winding Turns:6T-Y
Working Voltage:40-100V
Max RPM:13000
RPM/V:270
Rated Torque:.1.5 Nm
Rated Current (A):33.5
Max Efficiency:>90%
Dimension(mm):D53*L113

  • PRODUCT DETAIL

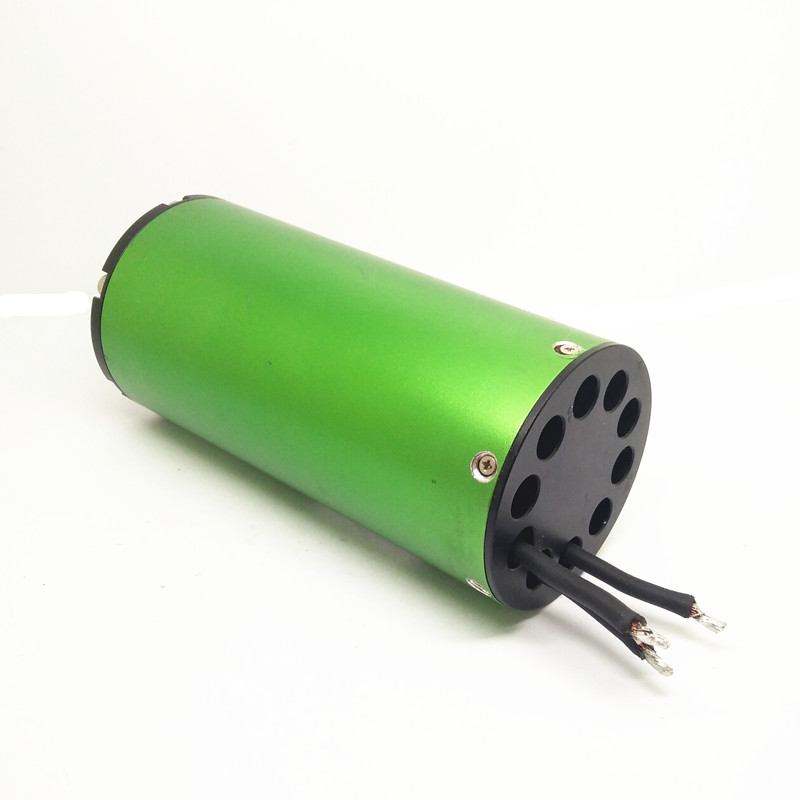

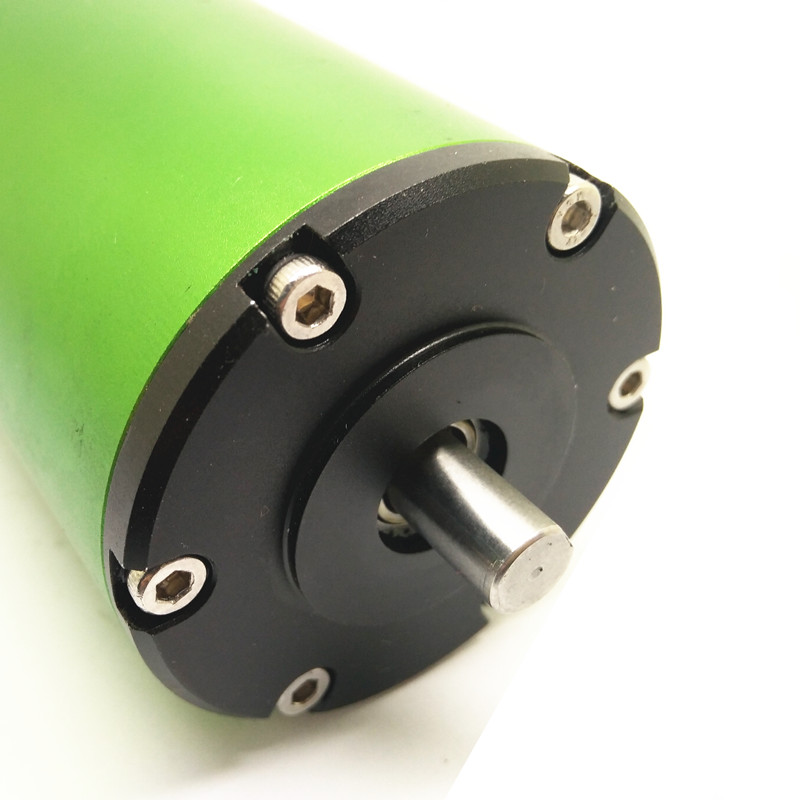

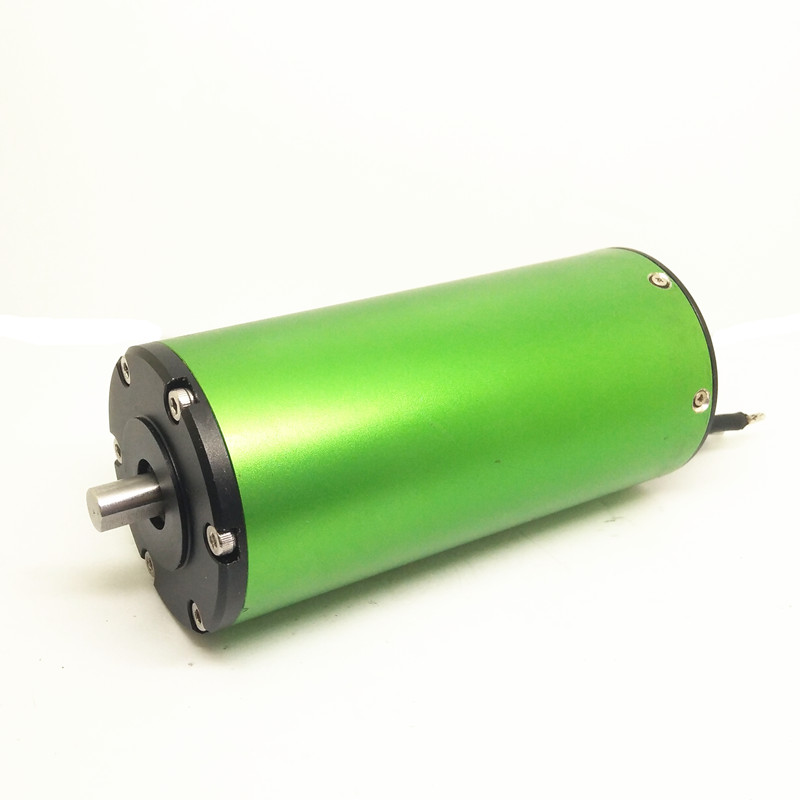

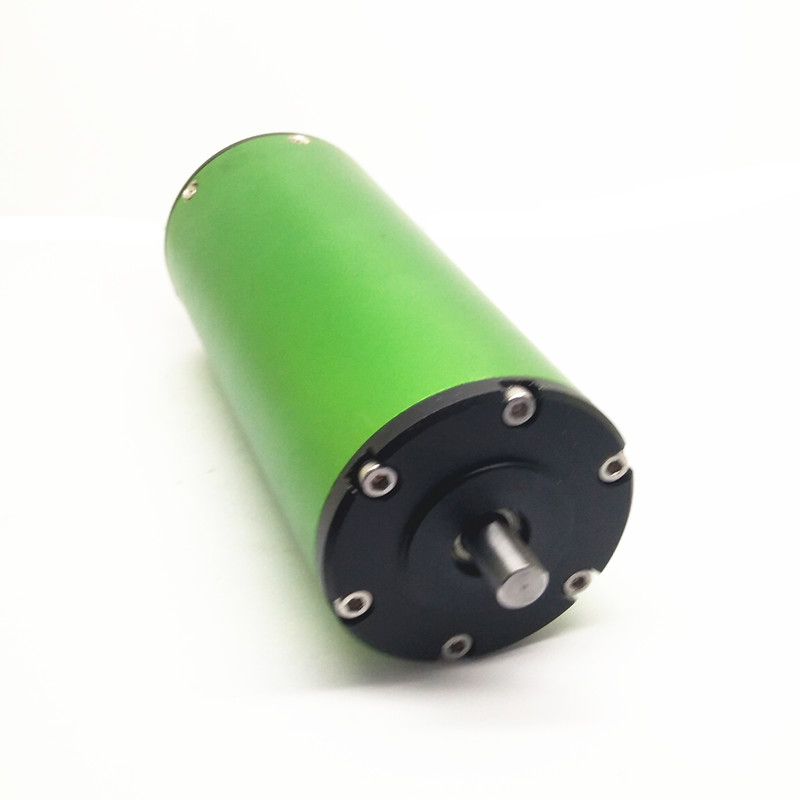

IP47 7.5kw Hydrofoil surfboard inrunner motor RT53113


RT Motor 53113-270KV
Motor type Inner rotor
Construction 12N/4P
Winding Turns 6T-Y
Working Voltage 40-100V
Max RPM 13000
RPM/V 270
No Load Current 1.5A
@10V
Rated Torque 1.5N*M
Rated Current (A) 33.5
Max Efficiency >90%
Dimension(mm) D53*L113
Shaft Dimension D8*15mm
/
Sensored or Sensorless Sensorless
Max Power(10S) 7.5KW
Max Torque(N*M) 2.5N*M
Max Current (A) 75
Net Weight (kg) 1.15
Cooling device Water
Protection IP47
