RTS5035
- PRODUCT DETAIL

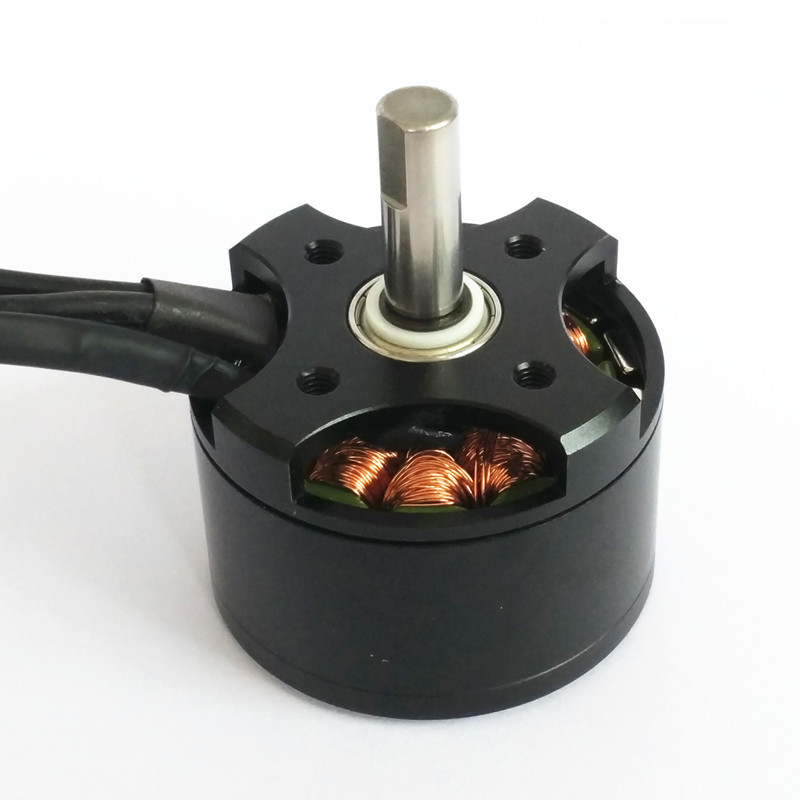

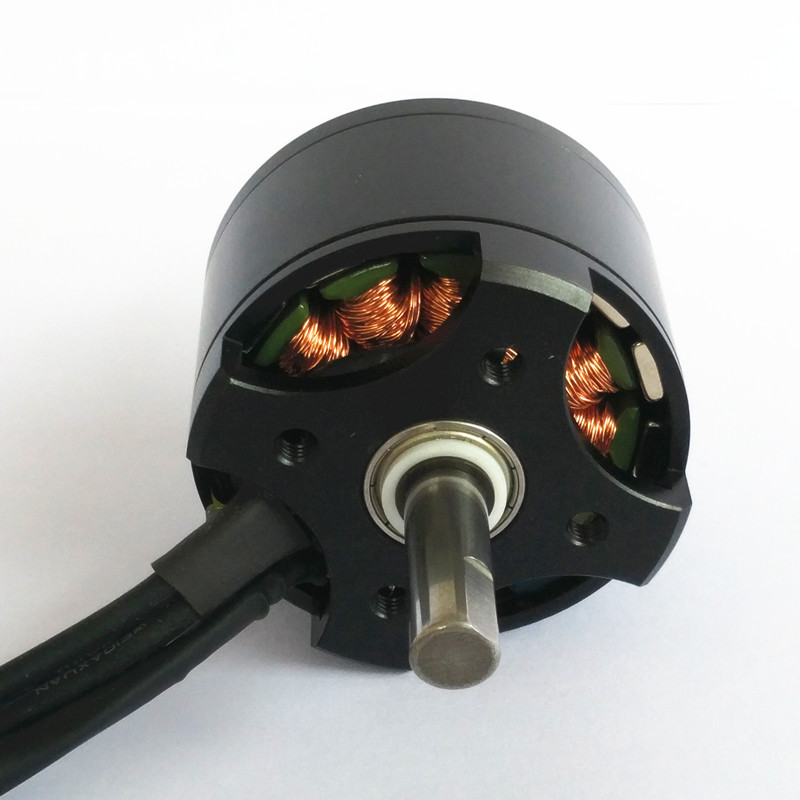

36v 500w brushless dc motor for skateboard
Model No
RTS5035
KV(RPM/V)
190KV
No Load Current at 7.2V (A)
0.8A
Working Voltage Range (V)
36-42V (Here data sheet tested for 36V)
Max Power (W)
500
Peak Current (A)
15A
Max Efficiency (%)
90%
Working Temperature Range (C/F)
130℃
Motor Diameter*Length (mm)
D50*L35
Net Weight (g)
350g
Connector Type
3.5mm golden plug
Wire Length (mm)
270mm
Hall Sensor Wire Length (mm)
440mm
Hall Sensor Connector
JST 6pins
Output Shaft (mm)
D8mm*L25mm
