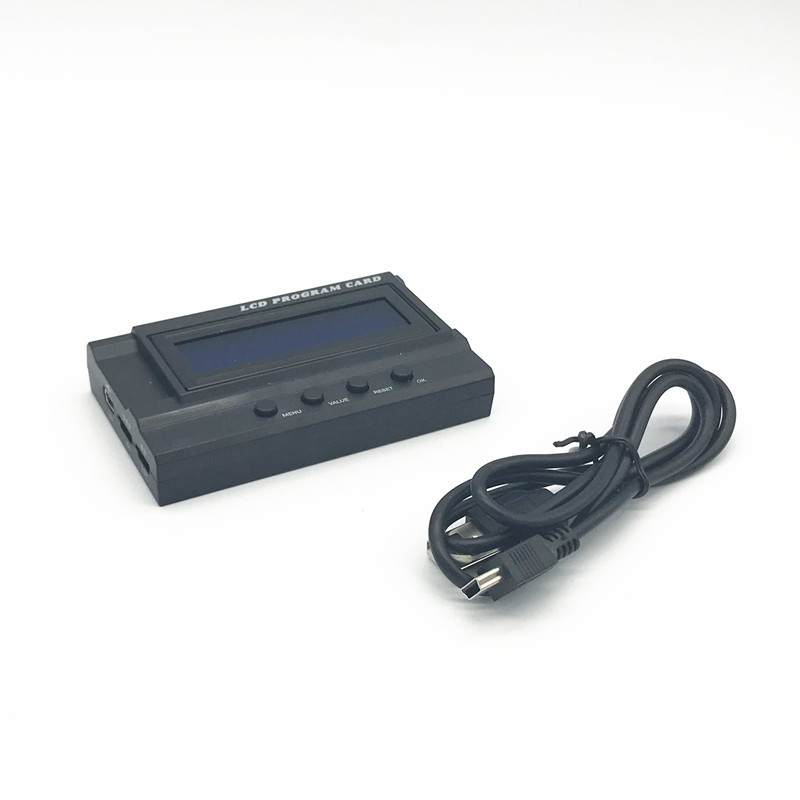

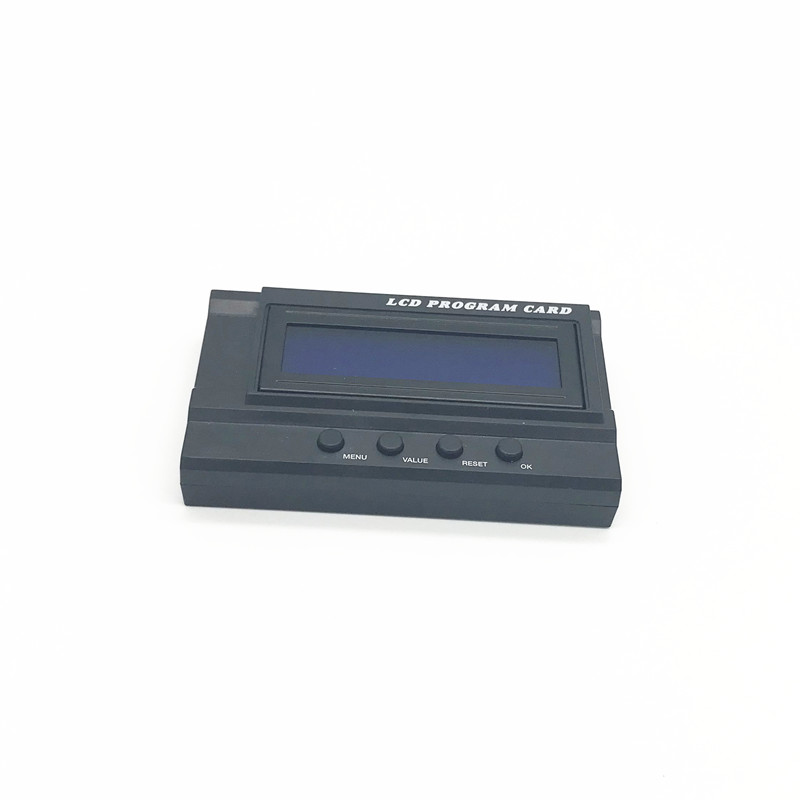

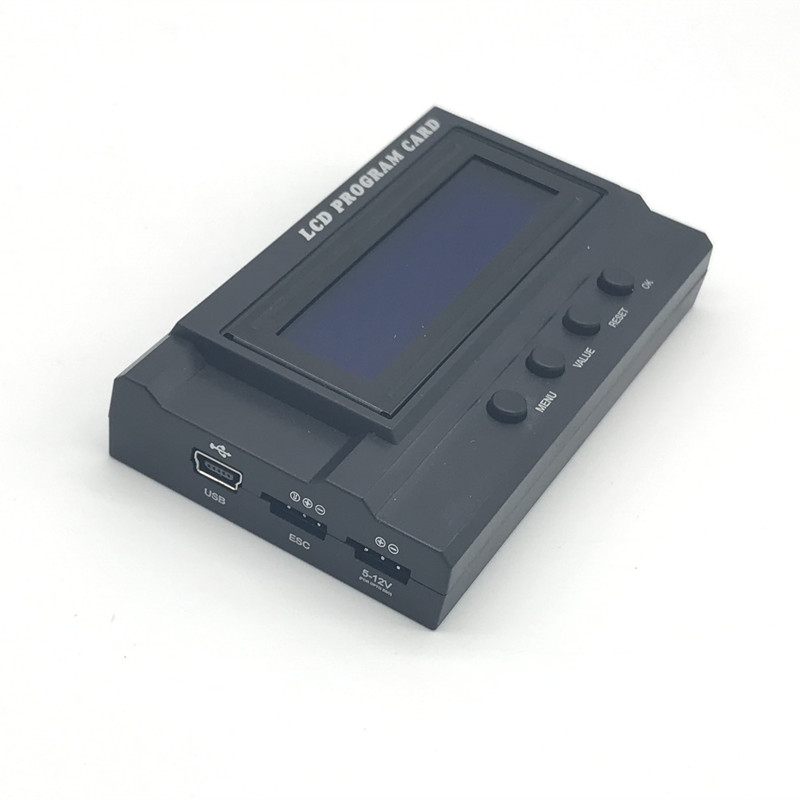

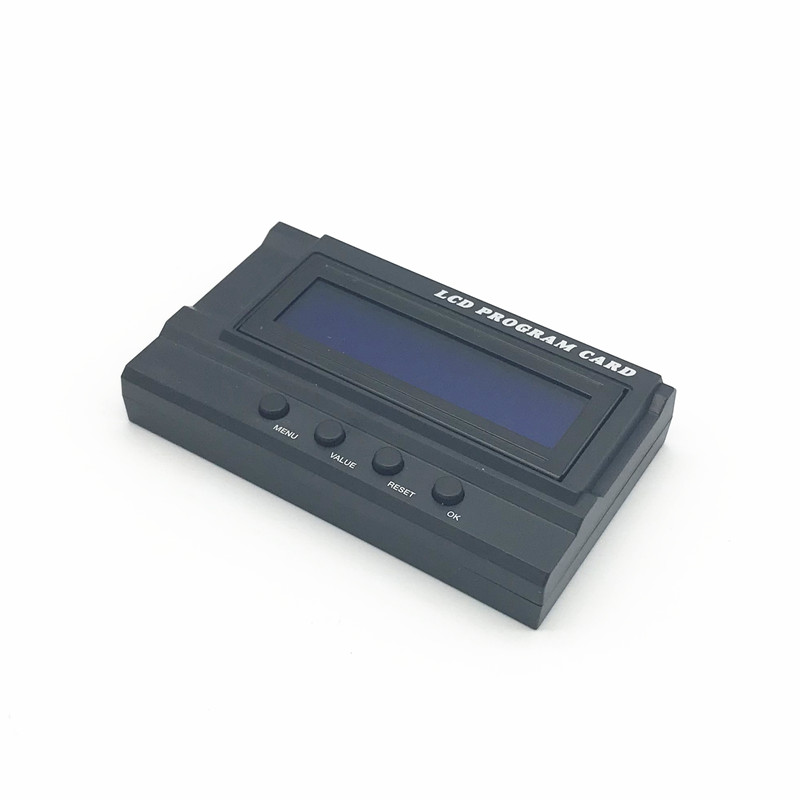

Reacher Tech LCD Program box for Marine 14S 300A Speed controller
This programming card is specifically designed for the Reacher Marine Series ESC (electronic speed controls.)
HOW TO USE THE LCD PROGRAM CARD:
The LCD Program card can be used to set up the Marine brushless ESC produced by Reacher for RC aircraft and RC cars.
Users can choose their desired parameter at any time.
It has 2 user methods as follows:
a) Working as an individual device to set the parameters of ESC.
b) Working as an USB adapter to link the ESC with PC, to update the firmware of ESC and set the parameters of ESC on PC.
Dimensions: 91mm*54mm*18mm (L*W*H)
Power supply: DC 5V~12V
Reacher Marine/Boat LCD programming card
Upgrade Firmware online
Use the software to interchange
Based on different software, there always with below items,maybe different batch with different sequence.
1. Brake Type
2. Battery Type
3. Voltage Protection
4. Motor Timing
*5: 22 degree
*6: 30 degree
5. SBEC Output (Only for RC Airplane application,other application ignore it)
6. Governor Mode(Only for RC Airplane application,other application ignore it)
*1: RPM OFF
*2: 1st SOFT
*3: 2nd SOFT
*4: 1st Governor
*5: 2nd Governor
7. Motor Rotation
8. Start Strength
9. Cut Off Type
*Working as an USB adapter to link the ESC with a PC to update the firmware of ESC and set the parameters on PC.
