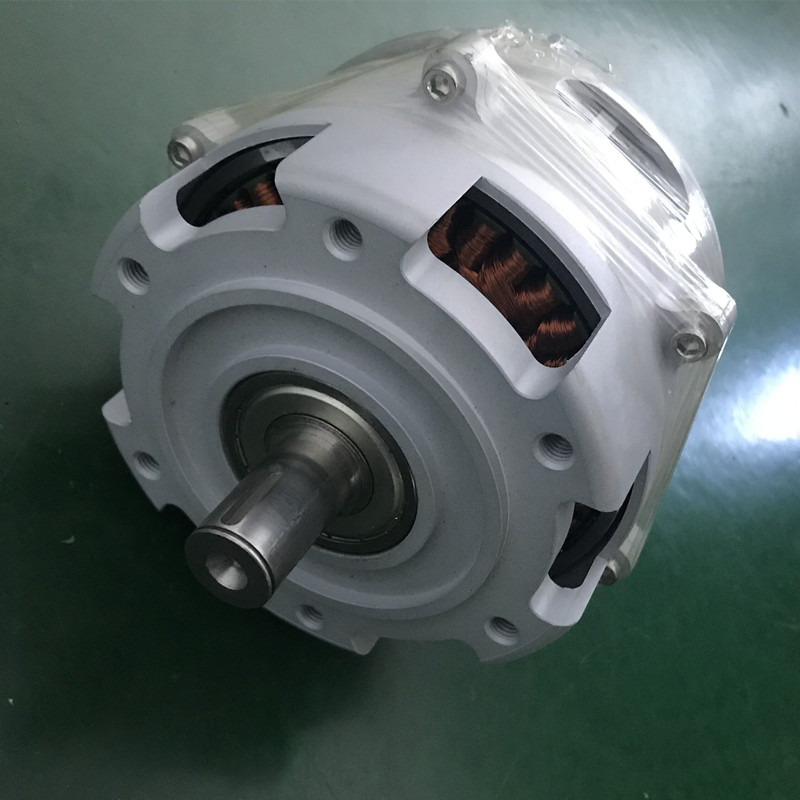

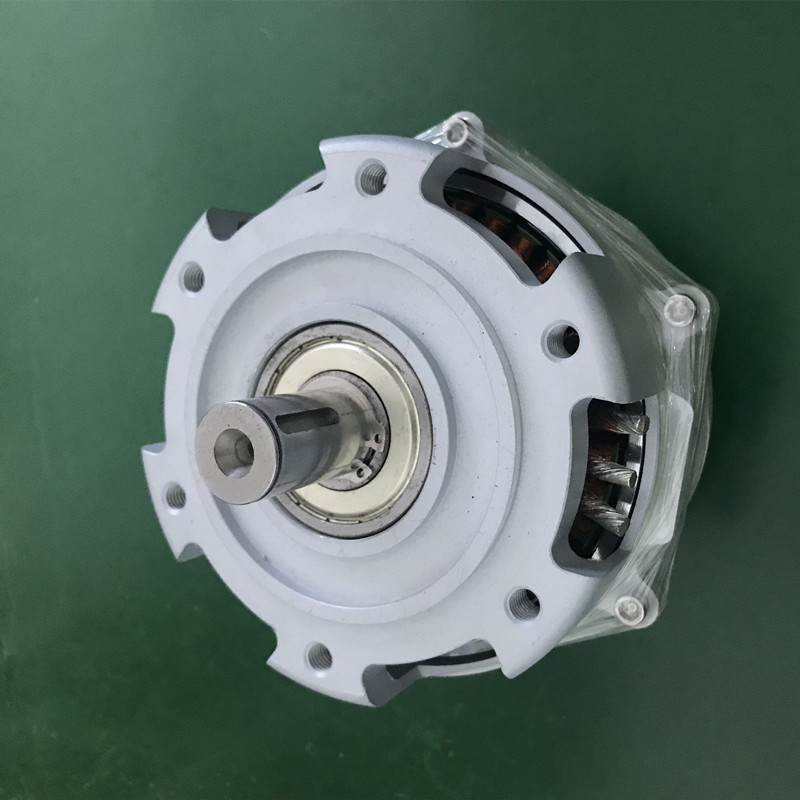

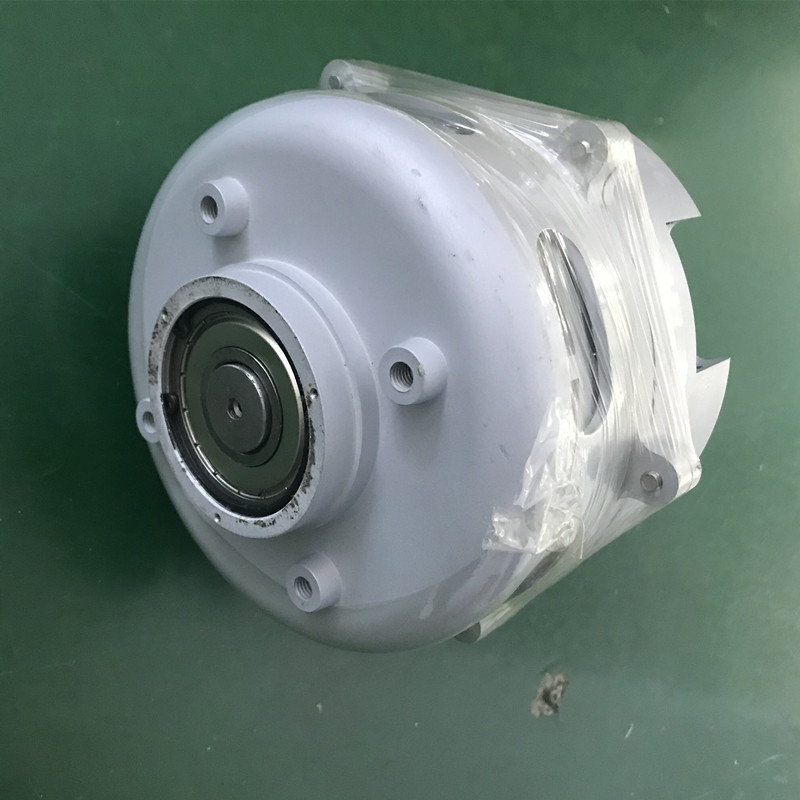

14140 Torque Motor

Product Item: RT14140-90KV
Category: >100mm
Construction:36N/42P
Winding Turns:3T-D
Working Voltage:40-85V
Max RPM:8000
RPM/V:90
Rated Torque:15Nm
Rated Current (A):150A
Max Efficiency:>87%

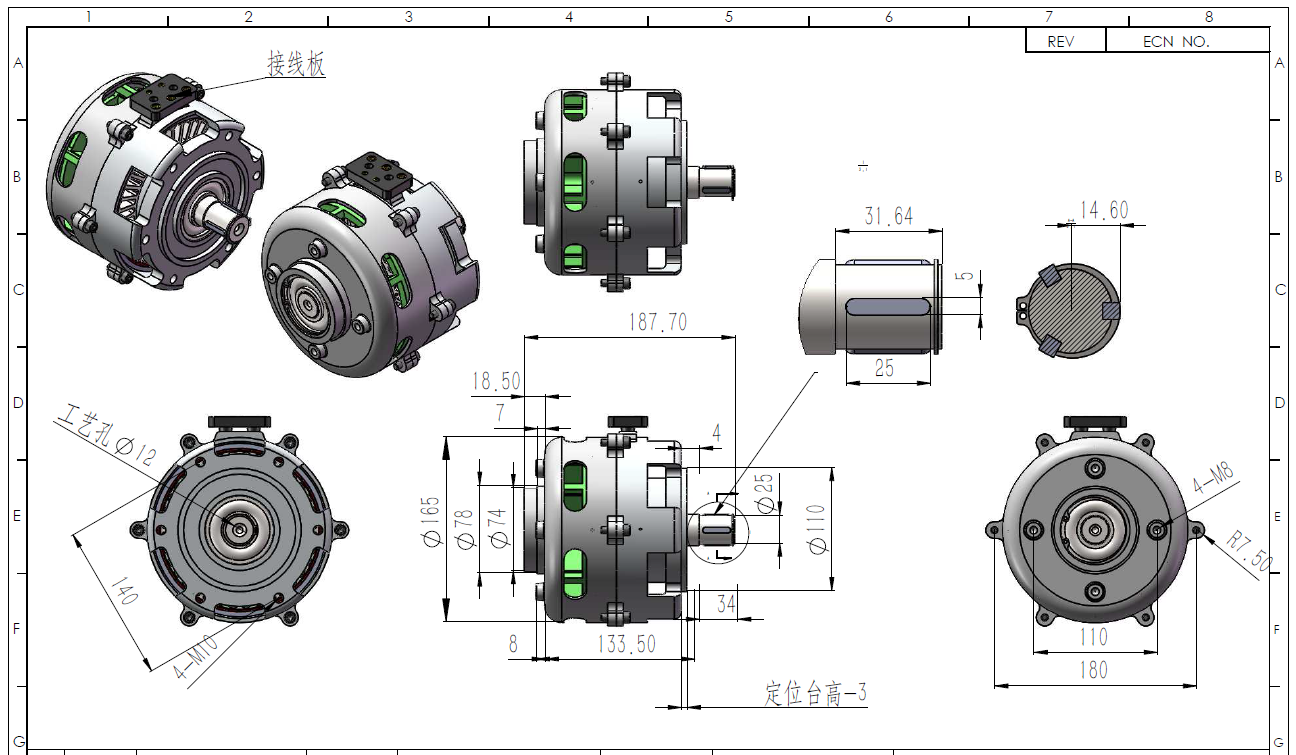

Dimension(mm):D165*L135

  • PRODUCT DETAIL

5Nm max 20kw 90kv 8000rpm brushless dc motor


RT Motor 14140-90KV(15KW)
Motor type Outer rotor
Construction 36N/24P
Winding Turns 3T-D
Working Voltage 40-85V
Max RPM 8000
RPM/V 90
No Load Current 6.5A
@10V
Rated Torque 15N*M
Rated Current (A) 150
Max Efficiency >87%
Dimension(mm) D165*L135

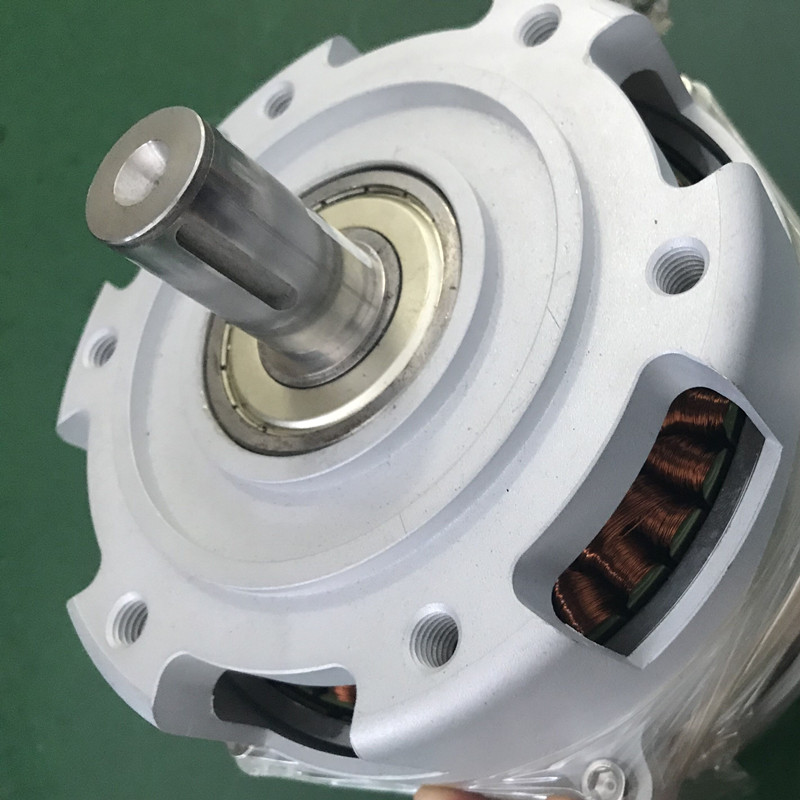

Shaft Dimension D25*34mm
M10*140
Sensored or Sensorless Sensorless
Max Power(10S) 20KW
Max Torque(N*M) 28N*M
Max Current (A) 350
Net Weight (kg) 6.6
Cooling device Air
Protection IP47
